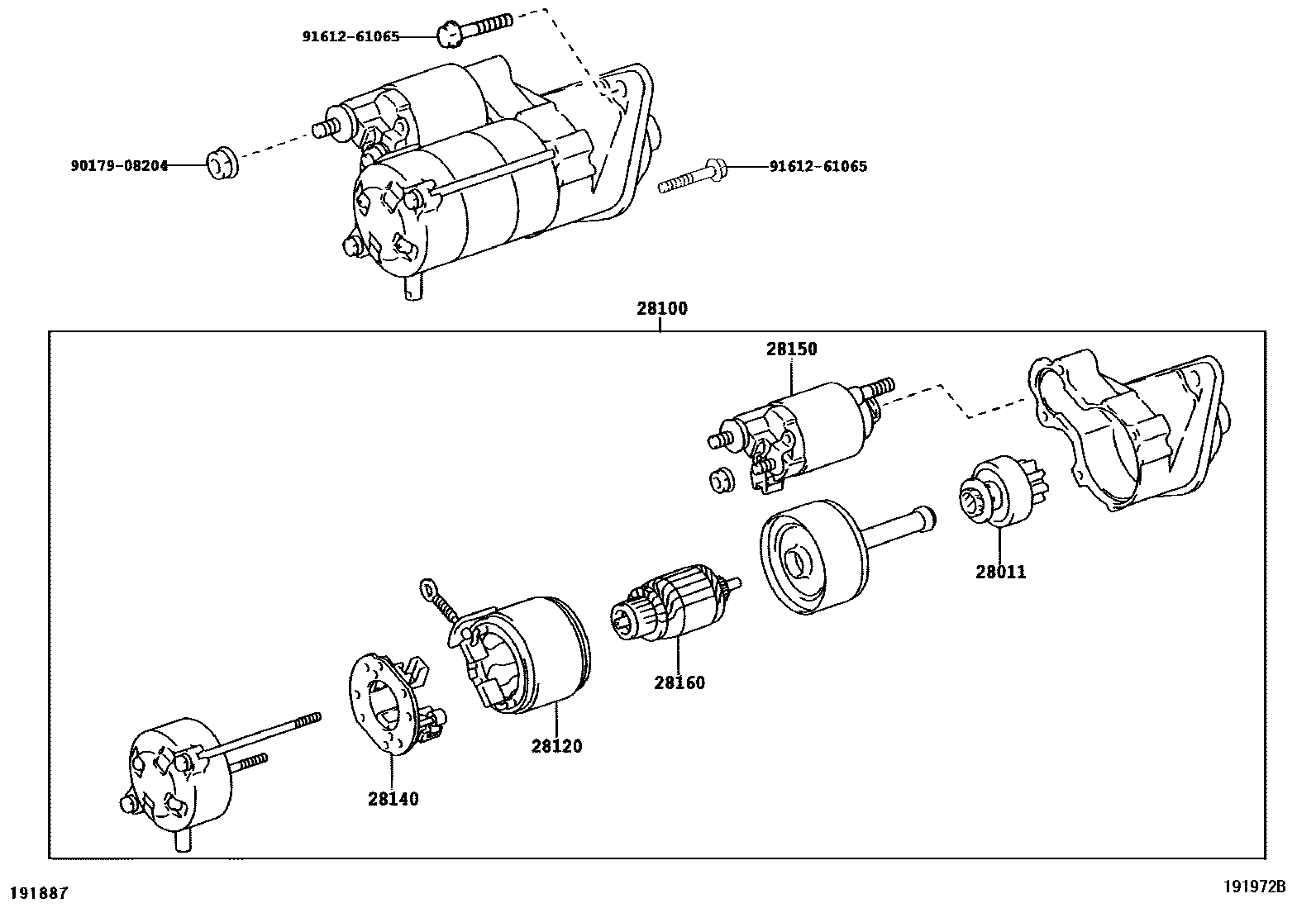

Toyota SIENTA — STARTER

0001 112V 0.8KW,1.0KW 0002 112V 0.8KW,1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1NZFE..NCP8#200605-201008

28100STARTER ASSY

main28100-21030supersedes 28100-21021i1NZFE..NCP8#200309-200605

main28100-21031supersedes 28100-21021i1NZFE..NCP8#201106-201407

main28100-21032supersedes 28100-21022i1NZFE..NCP8#201408

28120YOKE ASSY, STARTER

main28120-40130supersedes 28120-47120i1NZFE..NCP8#201106

main28120-70050supersedes 28120-70020i1NZFE..NCP8#200605-200907

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NZFE..NCP8#200309-200605

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE..NCP8#200309-200605

main28150-21020i1NZFE..NCP8#200706-201008

28160ARMATURE ASSY, STARTER

main28160-70050supersedes 28160-70021i1NZFE..NCP8#200309-200605

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 2 diagrams in section
