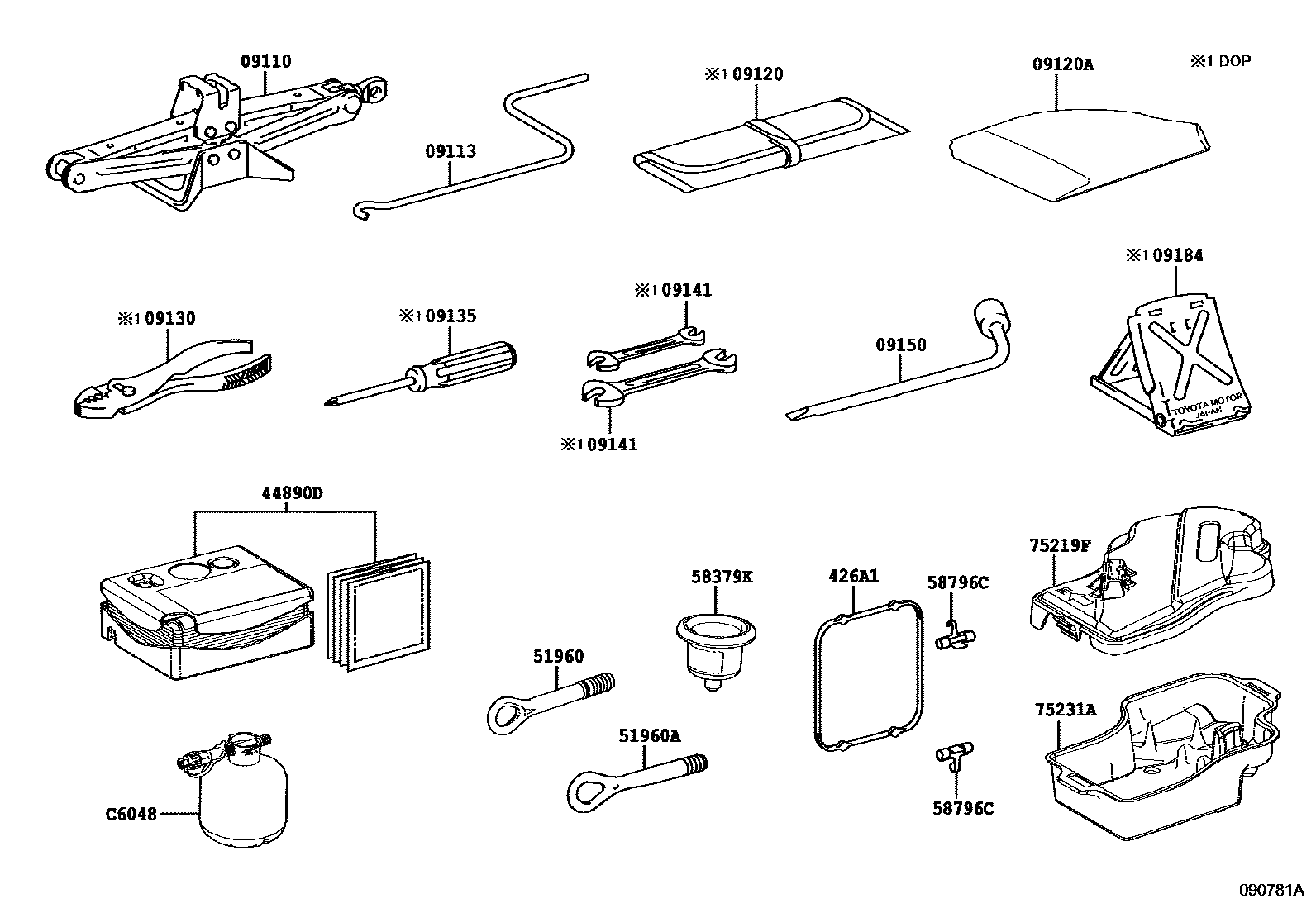

Toyota SIENTA — STANDARD TOOL

09110JACK ASSY

main09111-72020i201809-202207

09113HANDLE, JACK

main09113-20050i201506-201705

main09113-52060i201706-201809

09120BAG, TOOL

main09120-16030i201506-201809

09120ACASE, TOOL

main09120-52080i201506-201809

09130PLIERS

main99913-11500i201809-202207

09135DRIVER, SCREW

main99915-10700i201506-201809

09141SPANNER

main99914-10810i201809-202207

main99914-11214i201809-202207

09150WRENCH, HUB NUT BOX

main09150-40010i201506-201809

09184STOPPER, WHEEL

main09184-00010i201506-201809

426A1BAND, TIRE REPAIR KIT

main426A1-52010i201506-201809

44890DCOMPRESSOR ASSY, AIR

main42680-52020i201809-202009

main42680-52021i202010-202207

51960HOOK ASSY, FRONT

main51961-12020i201711-201809

main51961-42040i201506-201711

51960AHOOK ASSY, REAR

main51961-12021i201809-202207

58379KPROTECTOR, BODY LOWER BACK

main58379-52050i201809-202207

58796CHOOK, JACK CLAMP

main58796-33030×2i201506-201809

75219FCOVER, TOOL BOX

main75219-52020i201506-201809

75231ABOX, TOOL BAG

main75231-52020i201506-201809

C6048REPAIR SET, TIRE

mainC604852050i201506-201809

mainC604852051i202010-202207

18 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota SIENTA

This section contains 18 genuine Toyota parts for the STANDARD TOOL system of the Toyota SIENTA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, CASE, TOOL, PLIERS.
