Toyota SIENTA — SIDE MEMBER

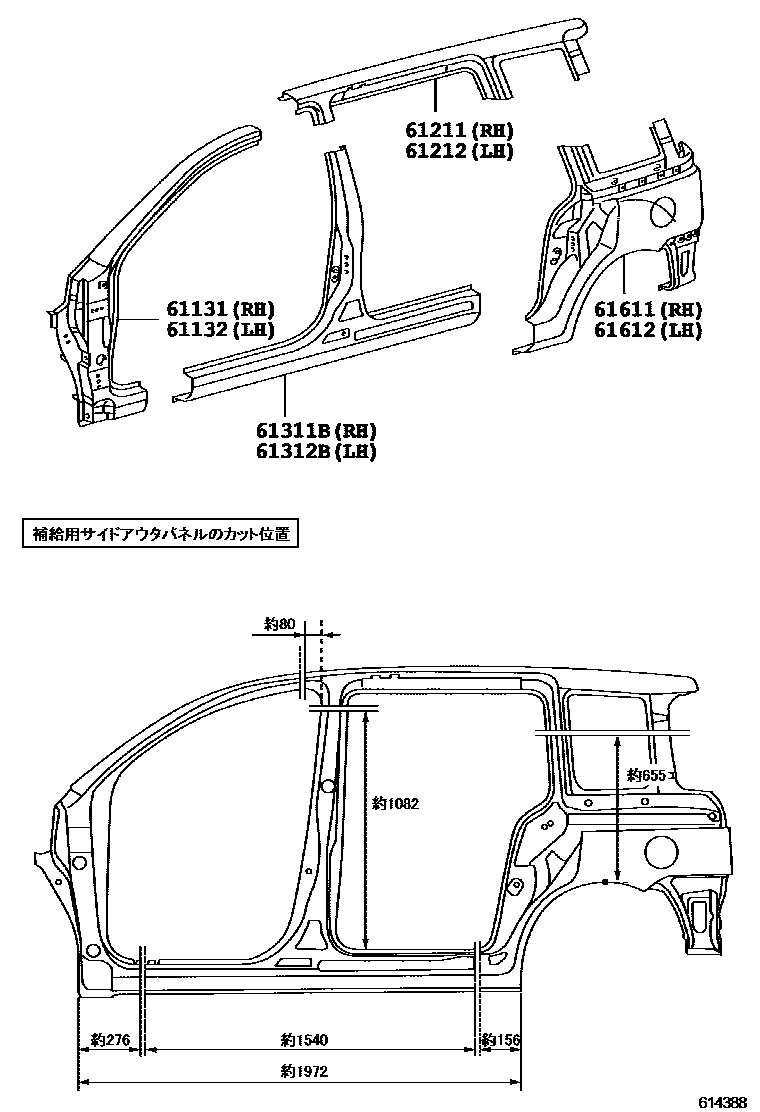

Parts diagram

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52160i201106

main61131-52280i200605-201008

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52140i200309-200605

main61132-52260i200605-201008

61211RAIL, ROOF SIDE, OUTER RH

main61211-52060i200309-200605

main61211-52061i200708-201008

61212RAIL, ROOF SIDE, OUTER LH

main61212-52060i200309-200605

main61212-52061i200708-201008

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52030i200605-201008

main61311-52050i200605-201008

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52040i200605-201008

main61312-52050i200605-201008

61611PANEL, QUARTER, RH

main61601-52260i200605-200707

main61601-52261i200708-201008

main61601-52460i201106

main61601-52500i200605-200707

main61601-52501i200708-201008

61612PANEL, QUARTER, LH

main61602-52280i200605-200707

main61602-52281i200708-201008

main61602-52560i201106

main61602-52520i200605-200707

main61602-52521i200708-201008

8 parts on this diagram · 5 diagrams in section

SIDE MEMBER for Toyota SIENTA

This section contains 55 genuine Toyota parts for the SIDE MEMBER system of the Toyota SIENTA. Key components include: HOLE PLUG, PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH.
