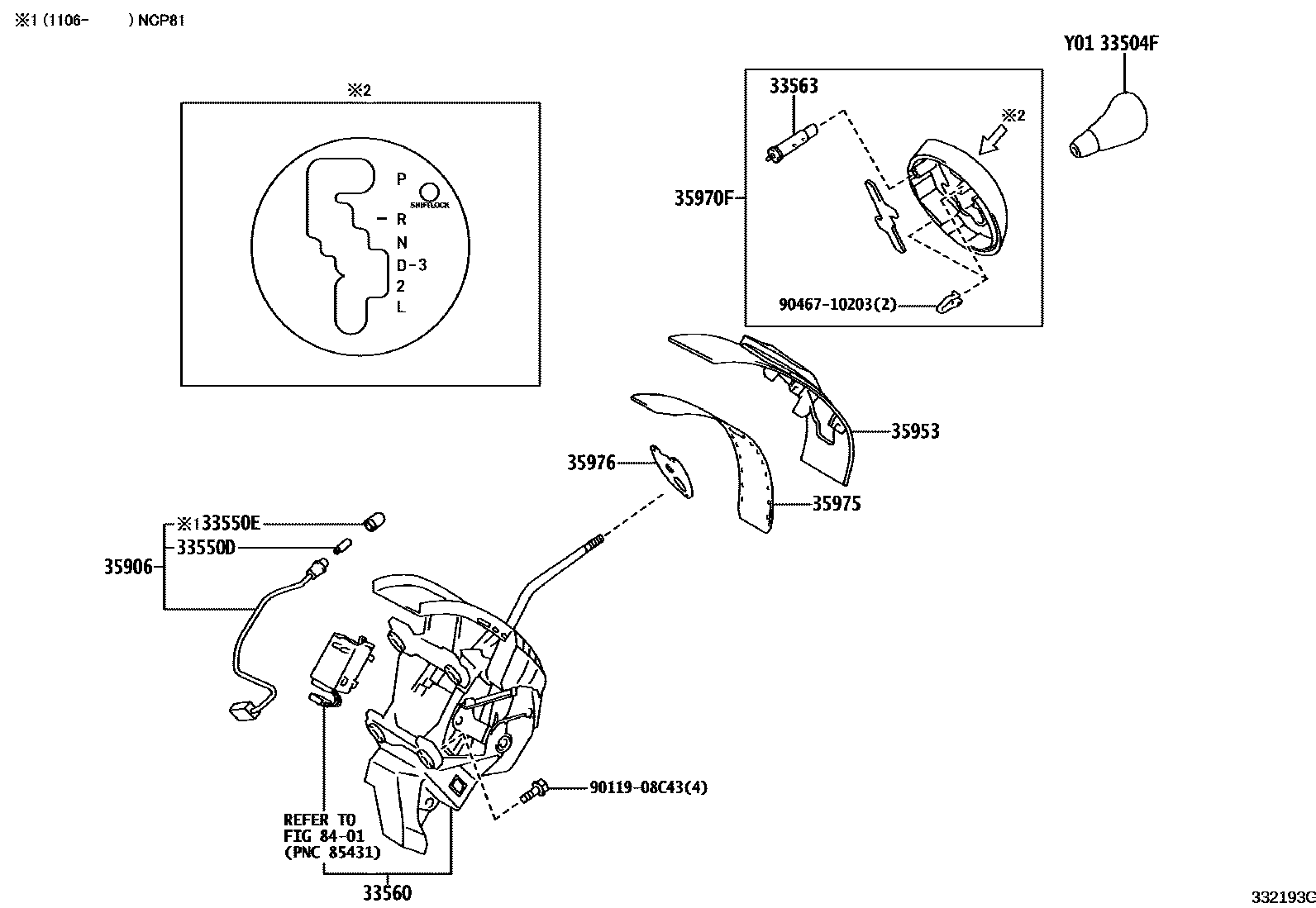

Toyota SIENTA — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-68010-A0i200309-200605

IVORY,TRIM0#

main33504-68010-B0i201106-201506

DK.GRAY,TRIM1#

main33504-68010-B1i200309-200605

GRAY,TRIM9#

main33504-68020-B0i201309-201506

DK.GRAY,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014i200309-200605

33550ECAP, POSITION INDICATOR LAMP

main35956-58010i201106

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52150i200309-200605

main33560-52160i200605-201008

33563BUTTON, SHIFT LOCK RELEASE

main33563-52060i200309-200605

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52040i200309-200605

35953GUIDE, POSITION INDICATOR LIGHT

main35953-52030i200309-200605

main35953-52031i201309

35970FHOUSING ASSY, POSITION INDICATOR

main35970-52010-A0i200605-201008

IVORY,TRIM0#

main35970-52010-B0i200309-200605

GRAY,TRIM9#

main35970-52010-B1i201106-201506

MD.GRAY,TRIM1#

main35970-52020-A0i200309-200605

IVORY,TRIM0#

main35970-52020-B0i200605-201008

GRAY,TRIM1#,9#

main35970-52020-B1i201106-201409

MD.GRAY,TRIM1#

main35970-52150-C0i201309-201506

21BK02 & MD.GRAY,TRIM1#

main35970-52160-C0i201309-201409

21BK02 & MD.GRAY,TRIM1#

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52100i200605-201008

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-52100i200309-200604

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C43

main90119-08C43

9046710203

main90467-10203

13 parts on this diagram · 3 diagrams in section

SHIFT LEVER & RETAINER for Toyota SIENTA

This section contains 23 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota SIENTA. Key components include: AIR CLEANER, KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL.
