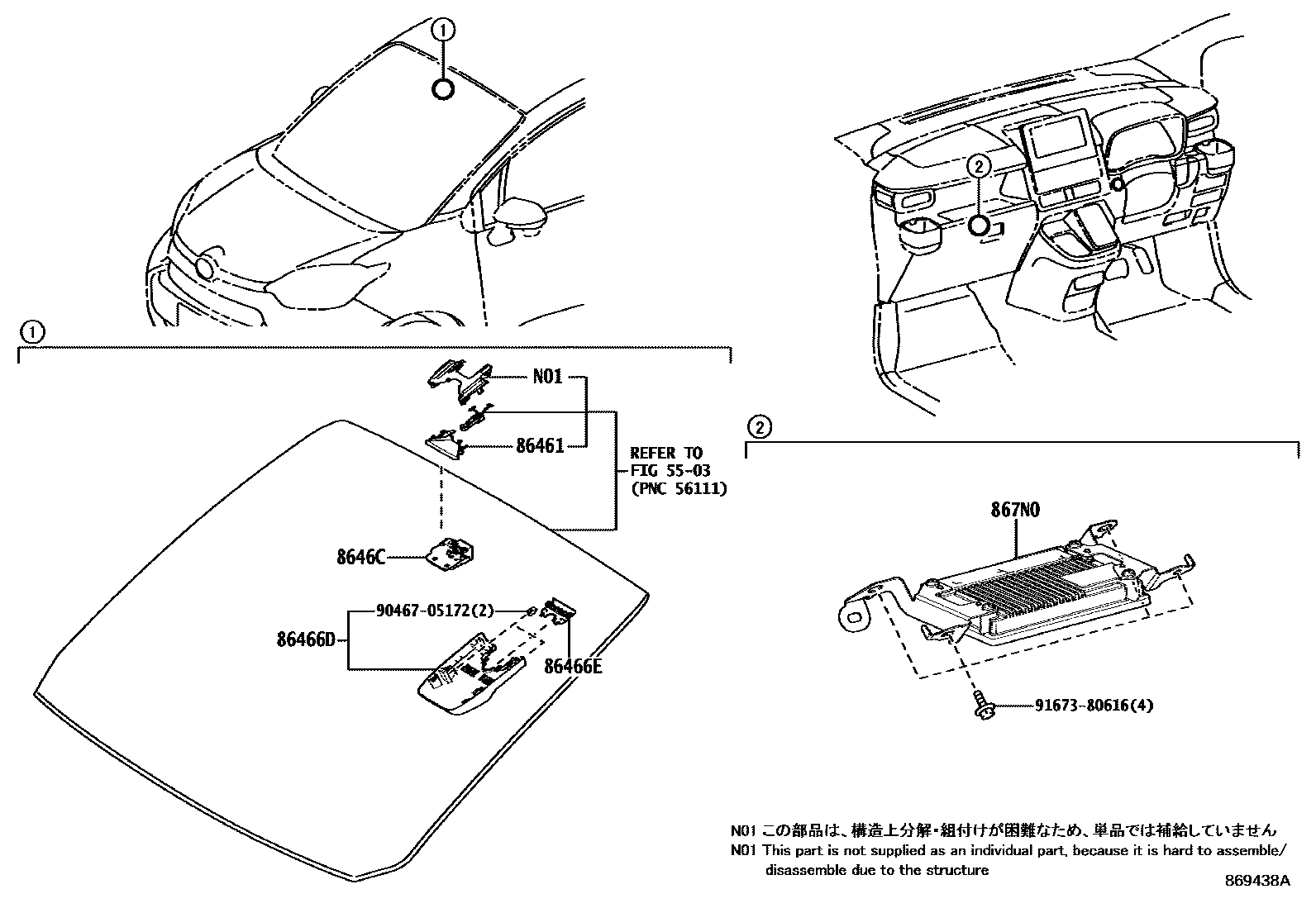

Toyota SIENTA — PRE-COLLISION SYSTEM

5503

86461HOOD, FORWARD RECOGNITION

main86461-52030iMXPC1#,MXPL1#202207

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-52070iMXPC1#,MXPL1#202207

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-52010iMXPC1#,MXPL1#202207

8646CCAMERA, FORWARD RECOGNITION

main8646C-52060iMXPC1#,MXPL1#..X202207-202404

main8646C-52420supersedes 8646C-52410iMXPC1#,MXPL1#..X202405-202508

main8646C-52150iMXPL15..05S..G;MXPC10,MXPL10..05S..(G,Z)202207-202404

main8646C-52430iMXPL15..05S..G;MXPC10,MXPL10..05S..(G,Z)202405-202508

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-52010iMXPC1#,MXPL1#202207-202211

main867N0-52011iMXPC1#,MXPL1#202212-202508

9046705172

main90467-05172

9167380616

main91673-80616

8 parts on this diagram · 1 diagram in section
