Toyota SIENTA — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12364AROD, ENGINE LATERAL CONTROL
12365COVER, ENGINE MOVING CONTROL ROD
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510539
main90105-10539
9010510550
main90105-10550
9010514178
main90105-14178
9011610230
main90116-10230
9011914139
main90119-14139
9017810029
main90178-10029
91552K1025
main91552-K1025
9415121041
main94151-21041

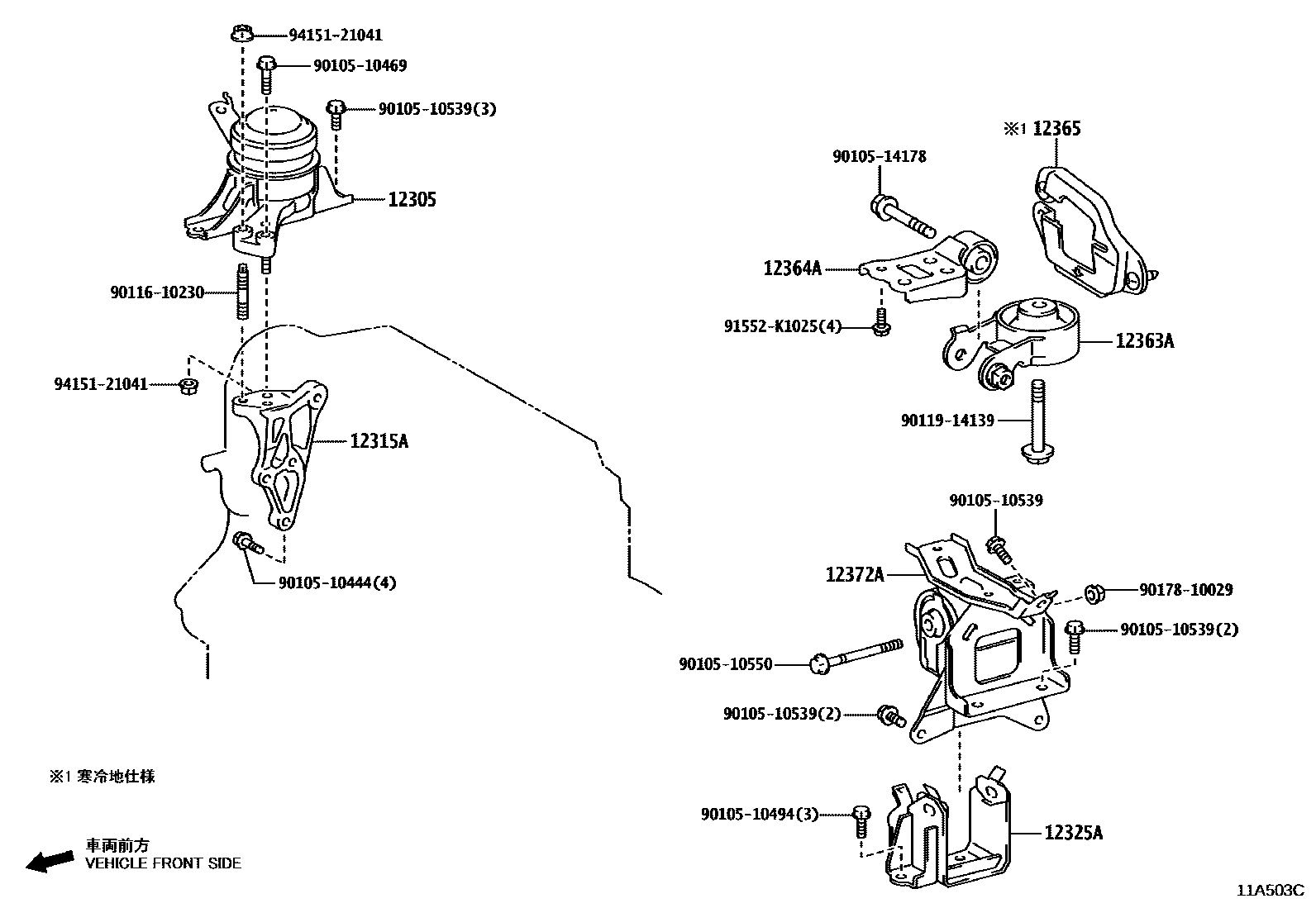

18 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota SIENTA
This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota SIENTA. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT, BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), ROD, ENGINE MOVING CONTROL.
