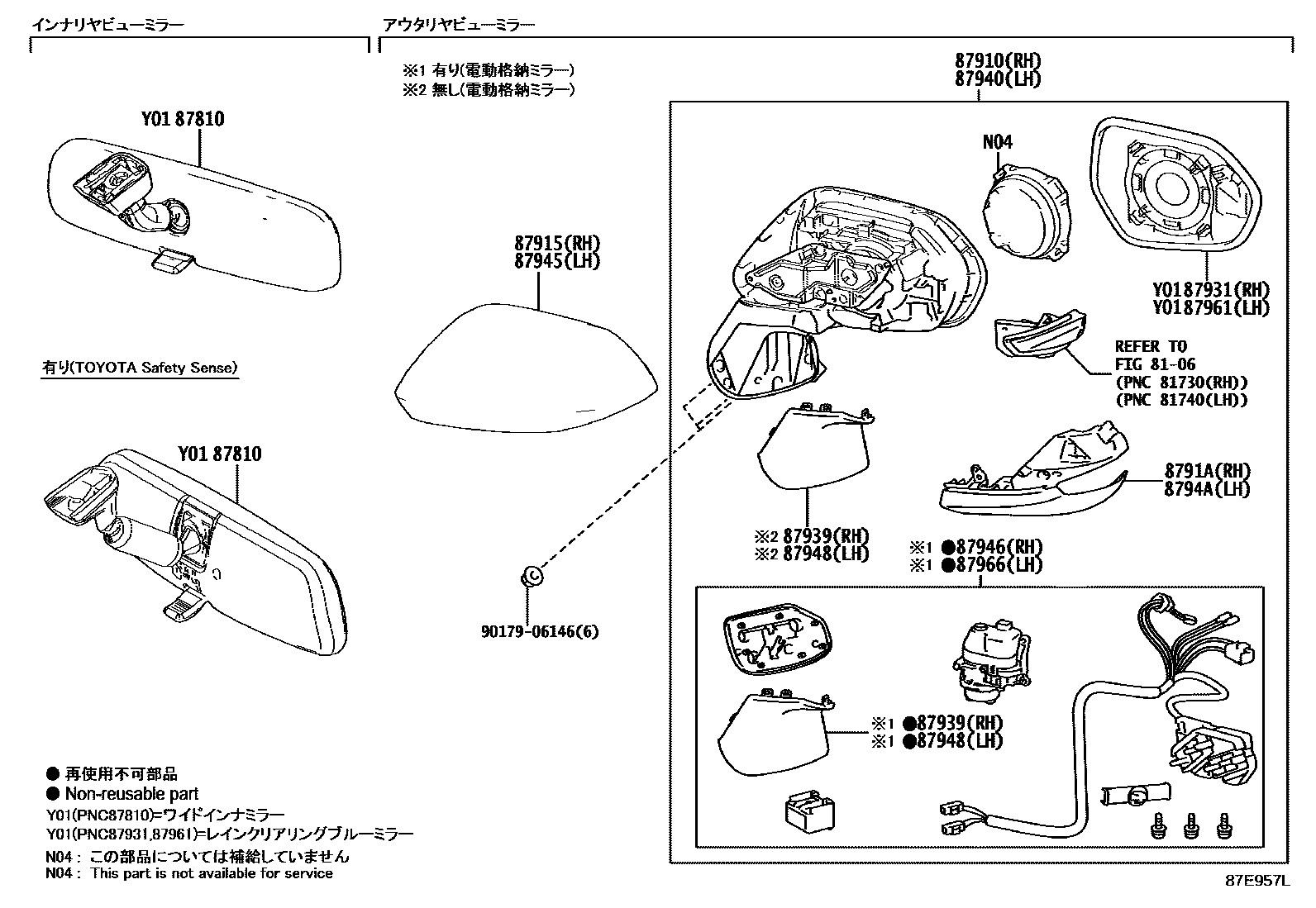

Toyota SIENTA — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WQ40supersedes 87810-52041iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG; NCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202207
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3T8
RED MC.,3T3
COOL BORDEAUX GF.,3T9
VINTAGE BROWN PEARL CS.,2SF; VINTAGE BROWN PEARL CS.,2SF ,4X4
BEIGE,4V6
AVANT-GARDE BRONZE ME.,4V8
AIR YELLOW,5B6
GREEN M.M.,6W8
RADIANT GREEN ME.,6W9
BLUE ME.,8T7
DK.BLUE M.M.,8W7
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3T8
RED MC.,3T3
COOL BORDEAUX GF.,3T9
BEIGE,4V6
AVANT-GARDE BRONZE ME.,4V8
AIR YELLOW,5B6
GREEN M.M.,6W8
RADIANT GREEN ME.,6W9
BLUE ME.,8T7
DK.BLUE M.M.,8W7
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906146
main90179-06146
15 parts on this diagram · 3 diagrams in section
MIRROR for Toyota SIENTA
This section contains 18 genuine Toyota parts for the MIRROR system of the Toyota SIENTA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
