Toyota SIENTA — METER

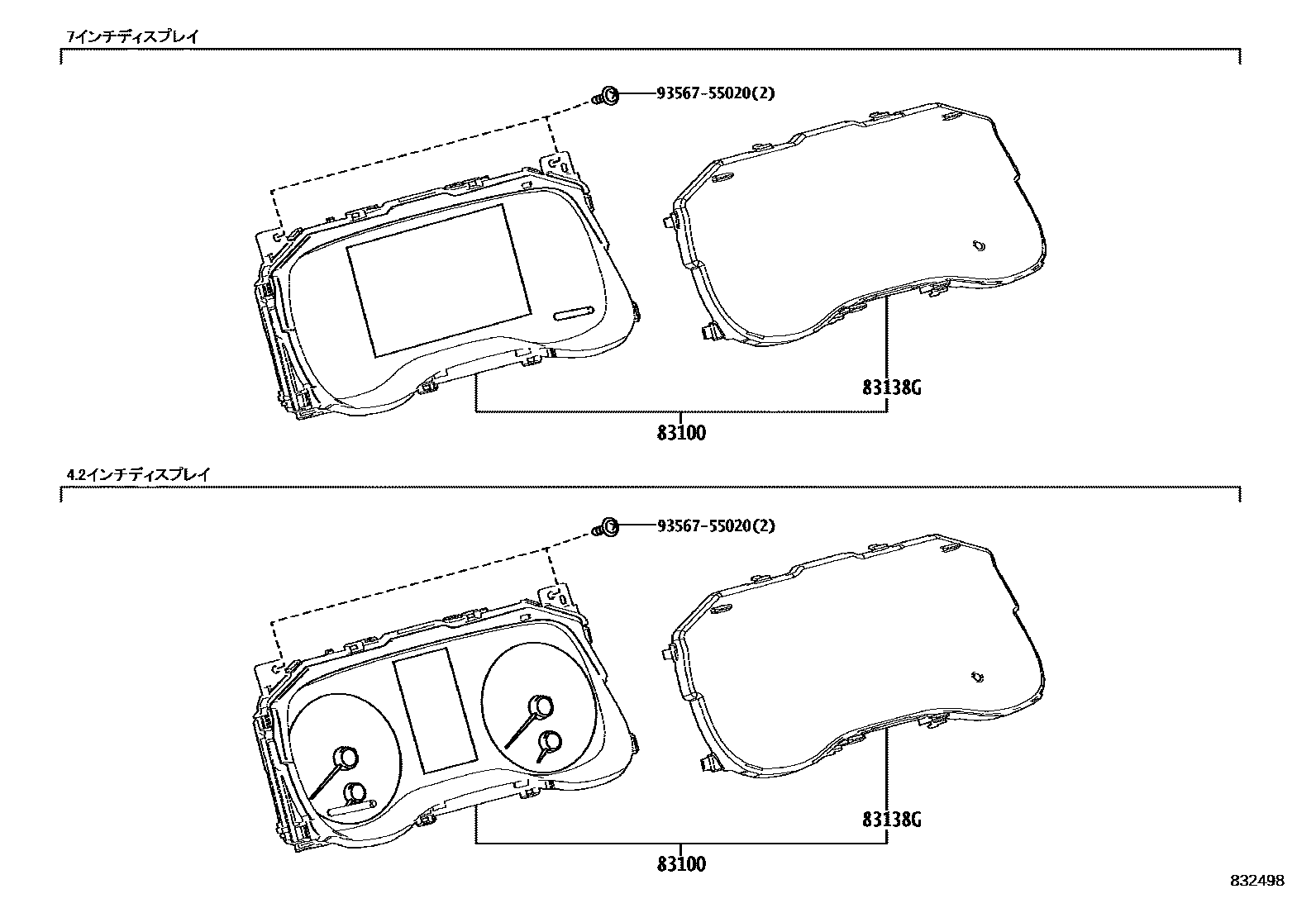

83100METER ASSY, COMBINATION

main83800-5CP80iMXPL1#..Z202207-202404

sub83800-5CP81

main83800-5CP81iMXPL1#..Z202405-202508

main83800-5D290iMXPC1#..Z202207-202404

main83800-5D291iMXPC1#..Z202405-202508

main83800-5D320iMXPL1#..G,X202207-202404

sub83800-5D321

main83800-5D321iMXPL1#..G,X202405-202508

main83800-5D340iMXPC1#..G,X202207-202404

main83800-5D341iMXPC1#..G,X202405-202508

83138GGLASS, COMBINATION METER

main83852-5CP80iMXPC1#,MXPL1#..Z202207-202405

main83852-5D320iMXPC1#,MXPL1#..G,X202207-202405

9356755020

main93567-55020

3 parts on this diagram · 1 diagram in section
