Toyota SIENTA — METER

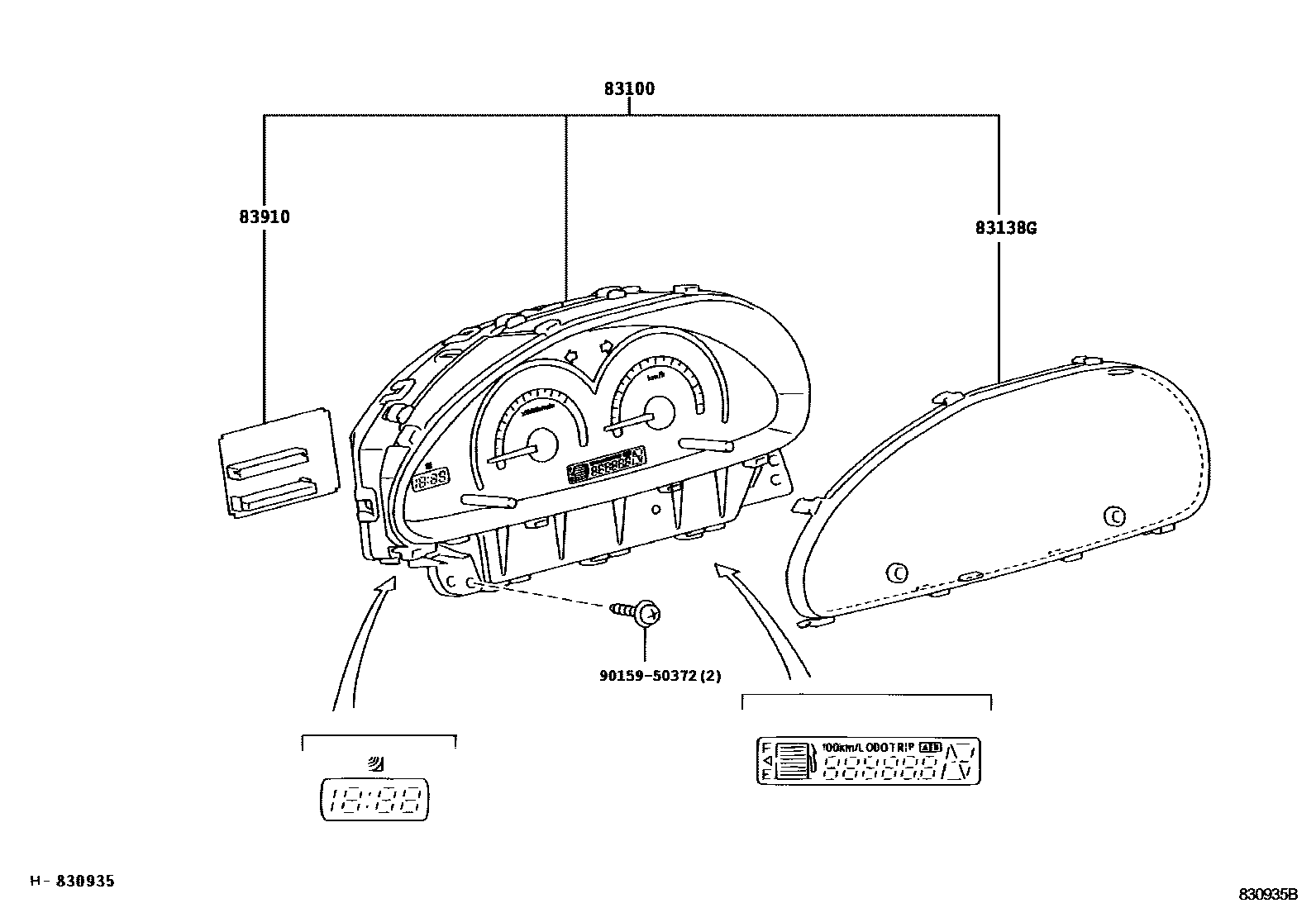

Parts diagram
83100METER ASSY, COMBINATION
main83800-52L10i200605-200706
main83800-52L11i200706-201008
main83800-52L20i200605-200706
main83800-52L21i200706-201008
main83800-52L60i200605-200706
main83800-52L61i200706-201008
main83800-52L62i201106-201309
main83800-52L70i200605-200706
main83800-52L71supersedes 83800-5D090i200706-201008
main83800-52L72i201106-201409
main83800-52Q50i201106-201309
main83800-5CF20i201106-201409
main83800-5CF30i201106-201309
main83800-5CF40i201106-201409
main83800-5CN80i201309
main83800-5CN90i201309
main83800-5CP00i201309
main83800-5D060i200309-200312
main83800-5D061i200312-200408
main83800-5D062i200408-200508
main83800-5D063i200508-200605
main83800-5D070i200309-200312
main83800-5D071i200312-200408
main83800-5D072i200408-200508
main83800-5D073supersedes 83800-5D093i200508-200605
main83800-5D091i200312-200408
main83800-5D092i200408-200508
sub83800-5D093
main83800-5D080supersedes 83800-5C680i200309-200312
main83800-5D081supersedes 83800-5C681i200312-200408
main83800-5D082supersedes 83800-5C682i200408-200508
main83800-5D083supersedes 83800-5C683i200508-200605
83138GGLASS, COMBINATION METER
main83852-5D060supersedes 83852-5D080i200605-201008
main83852-5D080i201106
83910CLOCK ASSY
main83910-52040i200309-200401
main83910-52041i200401-200407
main83910-52042i201106
9015950372
main90159-50372

4 parts on this diagram · 1 diagram in section
