Toyota SIENTA — LOCK CYLINDER SET

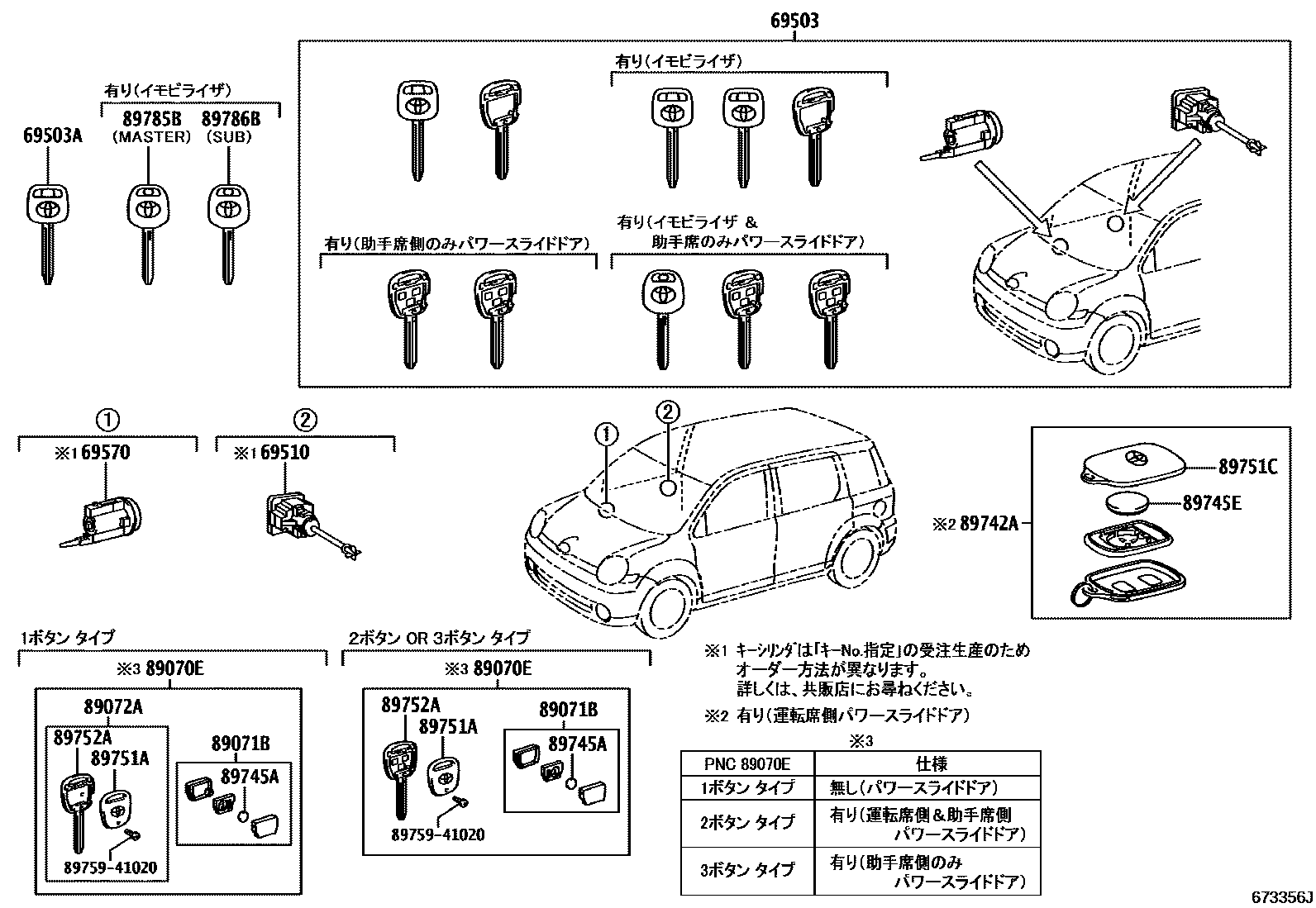

Parts diagram

69503CYLINDER SET, LOCK

main69005-52720i201106

main69005-52730supersedes 69005-52720i200605-201008

main69005-52740supersedes 69005-52720i200605-201008

main69005-52A40i201106

main69005-52D70supersedes 69005-52720i200412-200510

main69005-52D71supersedes 69005-52720i200707-201008

main69005-52D80supersedes 69005-52720i200412-200510

main69005-52D81supersedes 69005-52720i200511-200605

main69005-52E00supersedes 69005-52720i200605-200701

main69005-52E01supersedes 69005-52730i200702-201008

main69005-52E10supersedes 69005-52720i200605-200701

main69005-52E11supersedes 69005-52730i200702-201008

main69005-52E21i201106

main69005-52E31i201106

69503AKEY, BLANK

main90999-00199i200605-201008

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-20290i200309-200605

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12180i201106

main69570-12190i201309

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-12340i201106

main89070-12270i201106

main89070-28461i201309

main89070-28620supersedes 89070-12340i200605-200702

main89070-28A20supersedes 89070-12340i200702-201008

main89070-44181i201106

main89070-44210i200605-200702

main89070-46030supersedes 89070-12340i200412-200605

main89070-46031i201309

main89070-46040supersedes 89070-12340i200412-200605

main89070-46041i201204

main89070-52B10supersedes 89070-12340i200702-201008

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12060i201106-201506

main89071-12031supersedes 89071-12060i200605-201008

main89071-44010i201106-201506

main89071-44020supersedes 89071-46010i201309-201506

main89071-46010supersedes 89071-12060i200412-200605

main89071-46020supersedes 89071-12060i200412-200605

main89071-58060supersedes 89071-12060i200605-201008

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-28400i201106

main89072-47020i200605-201008

main89072-52490supersedes 89072-47020i200605-201008

89742ATRANSMITTER, DOOR CONTROL

main89742-28120i200605-201008

89745ABATTERY, TRANSMITTER

main89745-26010i201106-201506

main89745-48030supersedes 89745-26010i201309-201506

89745EBATTERY, TRANSMITTER

main89745-48030i200605-201008

main89745-50010i201106-201506

89751ACOVER, TRANSMITTER HOUSING

main89751-44010i201106-201506

main89751-26010supersedes 89751-44010i200605-200702

main89751-50010×2supersedes 89751-44010i200412-200509

main89751-50011i201309-201506

main89751-52140supersedes 89751-44010i200702-201008

89751CCOVER, TRANSMITTER HOUSING

main89751-44050i200605-201008

89752ACASE, TRANSMITTER HOUSING

main89752-46020i201106

main89752-13020supersedes 89752-33060i201309

main89752-28070supersedes 89752-46020i200702-200711

main89752-28071supersedes 89752-46020i200711-200712

main89752-33060supersedes 89752-46020i200412-200605

main89752-33160supersedes 89752-46020i200702-201008

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160i200309-200605

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170i200309-200605

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

16 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota SIENTA

This section contains 21 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota SIENTA. Key components include: CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, IGNITION SWITCH LOCK, TRANSMITTER ASSY, DOOR CONTROL.
