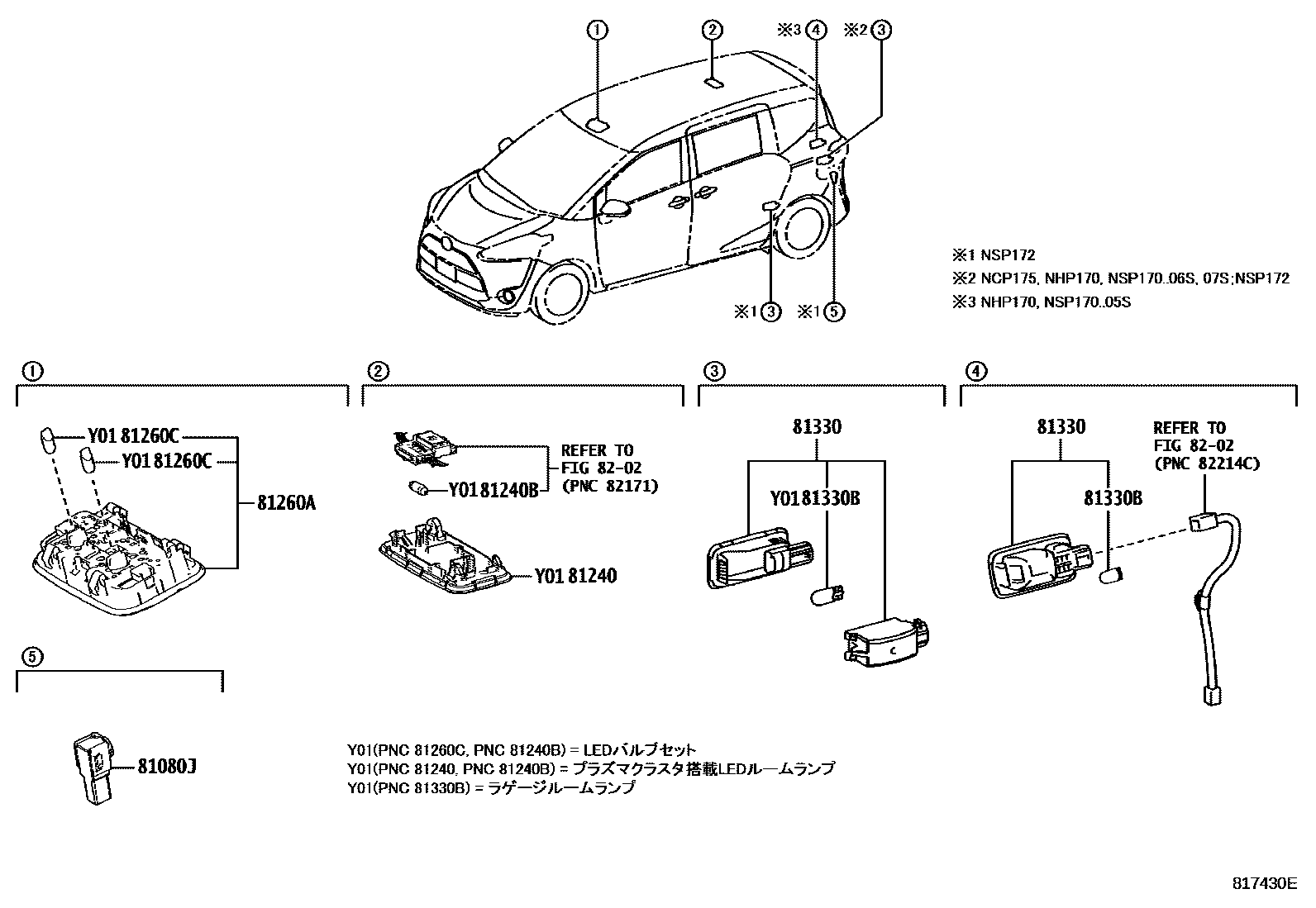

Toyota SIENTA — INTERIOR LAMP

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-52010i201506-201809

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0i201506-201809

LT.GRAY,TRIM0#,2#

main81240-42020-B0i201909-202207

LT.GRAY,TRIM0#,2#; LT.GRAY,TRIM0#,2#,4#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i201506-201809

81260ALAMP ASSY, MAP

main81260-68010-B2i201506-201710

LT.GRAY,TRIM0#,2#

main81260-68011-B2i201711-201809

LT.GRAY,TRIM0#,2#

81260CBULB(FOR MAP LAMP)

main90981-11062×2i201506-201809

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210i201506-201809

main81330-58010i201809-202207

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i201506-201809

8202WIRING & CLAMP

→ Go to FIG 82-02

8 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota SIENTA

This section contains 8 genuine Toyota parts for the INTERIOR LAMP system of the Toyota SIENTA. Key components include: LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
