Toyota SIENTA — INSTRUMENT PANEL & GLOVE COMPARTMENT

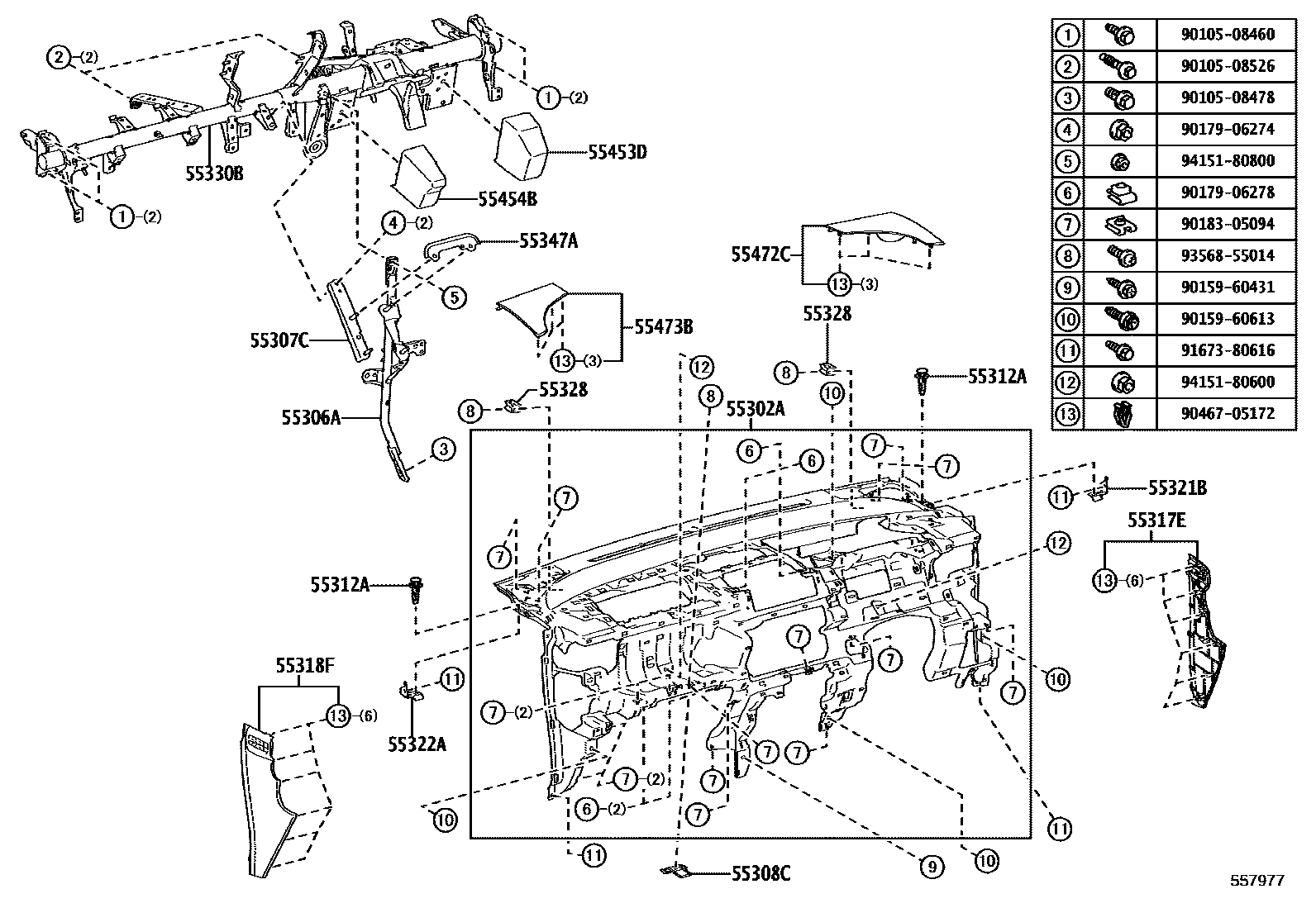

Parts diagram
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
main55302-52310-C0i202207
BLACK,TRIM2#; BLACK,TRIM2#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-52450i202207
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-52100i202207
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-52121i202207
55312ACLIP, INSTRUMENT PANEL
main52161-16010×2i202207
55317EPANEL, INSTRUMENT SIDE, NO.1
main55317-52140-C0i202207
BLACK,TRIM2#; BLACK,TRIM2#,4#
55318FPANEL, INSTRUMENT SIDE, NO.2
main55318-52120-C0i202207
BLACK,TRIM2#; BLACK,TRIM2#,4#
55321BBRACKET, INSTRUMENT PANEL, NO.1
main55363-52030i202207
55322ABRACKET, INSTRUMENT PANEL, NO.2
main55363-52040i202207
55328PIN, INSTRUMENT PANEL, NO.1
main55328-52430×2i202207
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-52A20i202207
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
main55347-52180i202207
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
main55453-52200i202207
55454BPAD, INSTRUMENT PANEL SAFETY, NO.2
main55454-52200i202207
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
main55472-52090-C0i202207
BLACK,TRIM2#; BLACK,TRIM2#,4#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
main55473-52070-C0i202207-202508
BLACK,TRIM2#,4#
main55473-52080-C0supersedes 55473-52070-C0i202207-202508
9010508460
main90105-08460
9010508478
main90105-08478
9010508526
main90105-08526
9015960431
main90159-60431
9015960613
main90159-60613
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9046705172
main90467-05172
9167380616
main91673-80616
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800

29 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota SIENTA

This section contains 80 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota SIENTA. Key components include: DO0R ASSY, AIRBAG PASSENGER, DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR.
