Toyota SIENTA — HORN

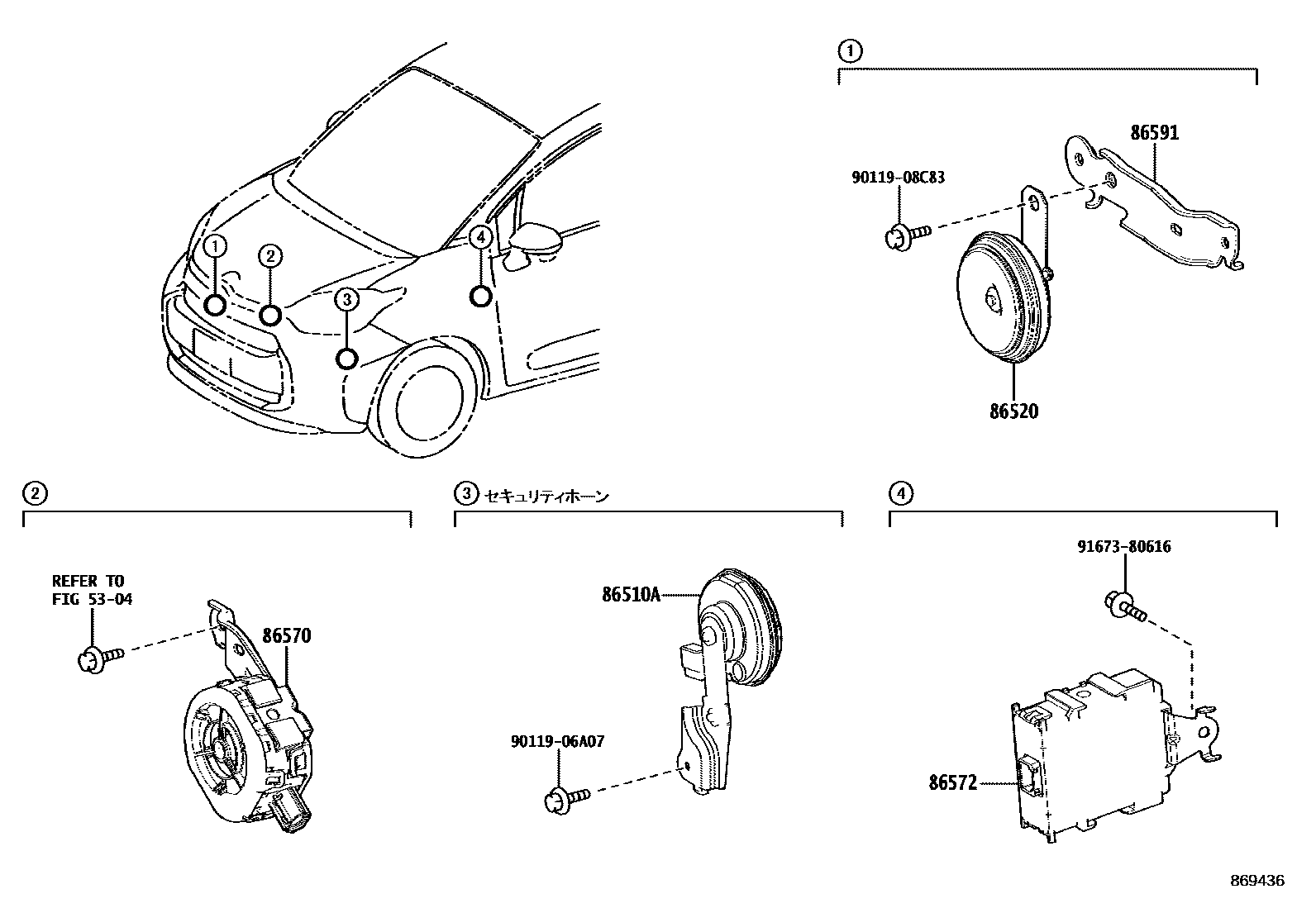

Parts diagram

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

86510AHORN ASSY, SECURITY

main86560-K0020i202207

86520HORN ASSY, LOW PITCHED

main86520-52230i202207-202405

main86520-52250i202405

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-52100i202207

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-52150i202207-202405

main865H2-52070i202405

86591BRACKET, HORN

main86591-52080i202207

9011906A07

main90119-06A07

9011908C83

main90119-08C83

9167380616

main91673-80616

9 parts on this diagram · 1 diagram in section

HORN for Toyota SIENTA

This section contains 9 genuine Toyota parts for the HORN system of the Toyota SIENTA. Key components include: FRONT FENDER APRON & DASH PANEL, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
