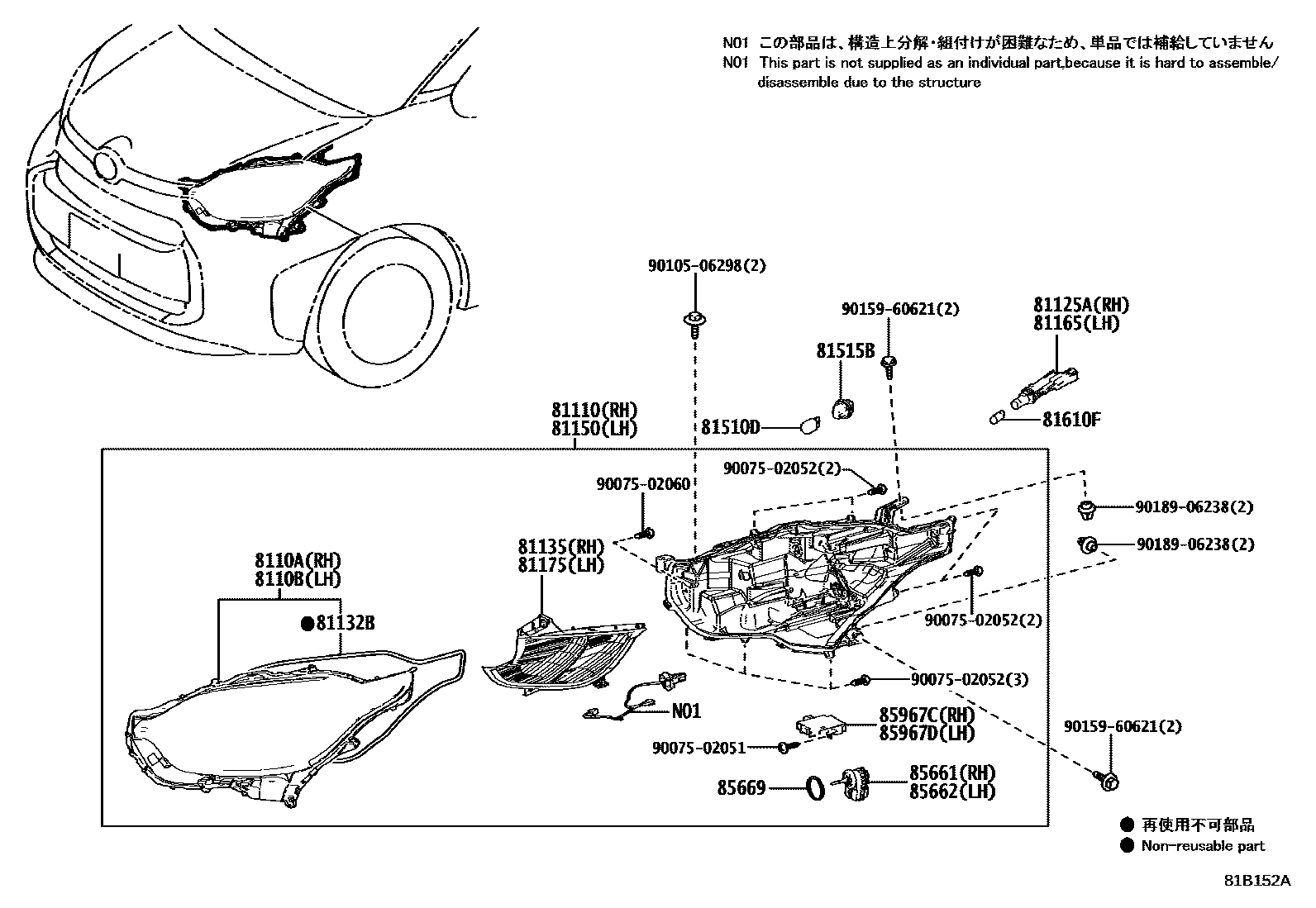

Toyota SIENTA — HEADLAMP
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81125ACORD, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81165CORD, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502060
main90075-02060
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
23 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota SIENTA
This section contains 33 genuine Toyota parts for the HEADLAMP system of the Toyota SIENTA. Key components include: COMPUTER SUB-ASSY, HEADLAMP, RH NO.1, COMPUTER SUB-ASSY, HEADLAMP, LH NO.1, LENS SUB-ASSY, HEADLAMP, RH, LENS SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH.
