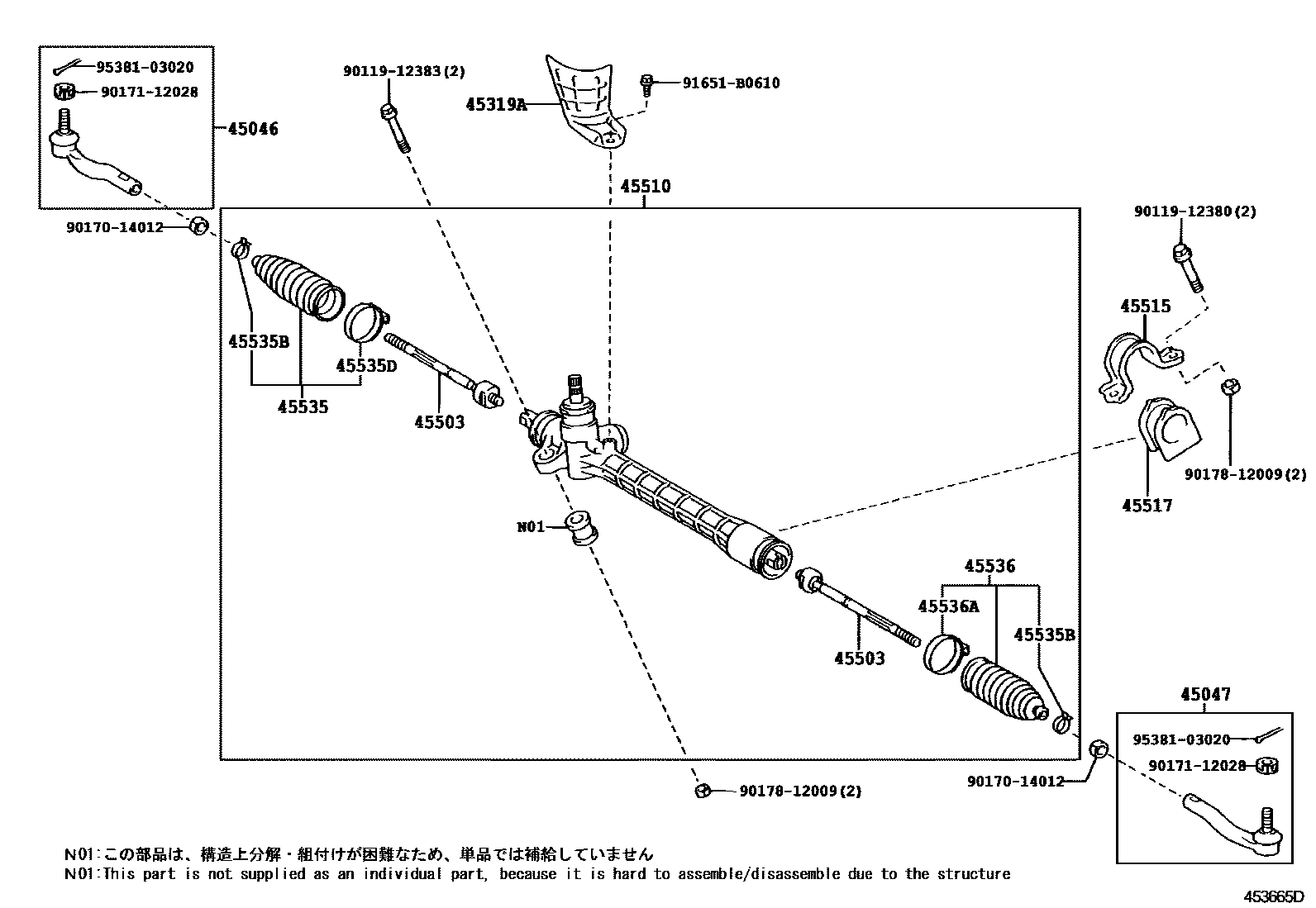

Toyota SIENTA — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45047END SUB-ASSY, TIE ROD, LH
45319AINSULATOR, STEERING GEAR HEAT
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45515BRACKET, STEERING RACK HOUSING, NO.2
45517GROMMET, STEERING RACK HOUSING, NO.2
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011912380
main90119-12380
9011912383
main90119-12383
9017014012
main90170-14012
9017112028
main90171-12028
9017812009
main90178-12009
91651B0610
main91651-B0610
9538103020
main95381-03020
19 parts on this diagram · 2 diagrams in section
FRONT STEERING GEAR & LINK for Toyota SIENTA
This section contains 21 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota SIENTA. Key components include: INSULATOR, POWER STEERING RACK HOUSING HEAT, END SUB-ASSY, TIE ROD, RH, END SUB-ASSY, TIE ROD, LH, INSULATOR, STEERING GEAR HEAT, END SUB-ASSY, STEERING RACK.
