Toyota SIENTA — FRONT DOOR WINDOW REGULATOR & HINGE

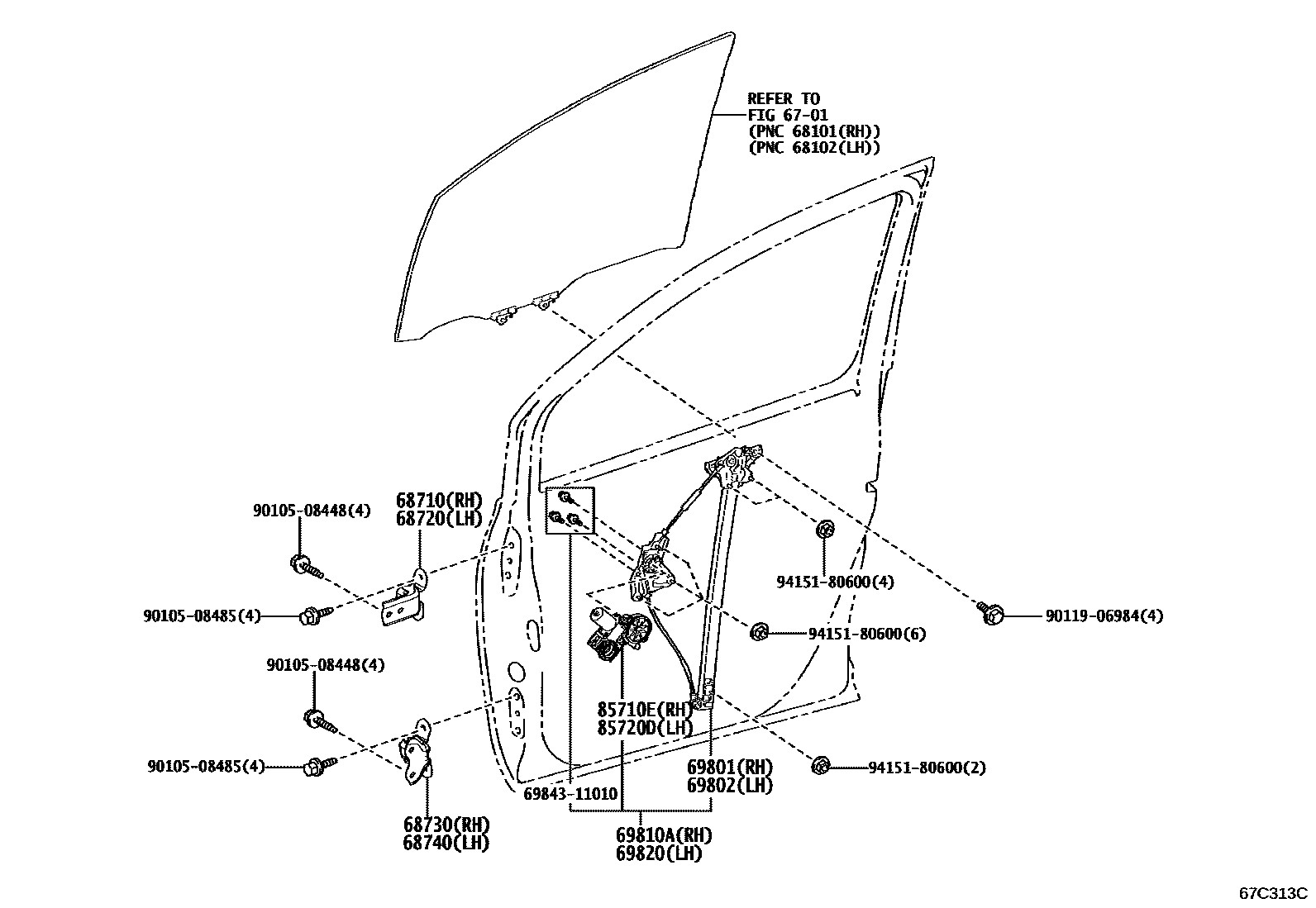

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i202207

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i202207

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i202207

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i202207

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52200i202207

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52180i202207

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-52570i202207

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-52480i202207

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52260i202207

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52230i202207

6984311010

main69843-11010

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota SIENTA

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota SIENTA. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
