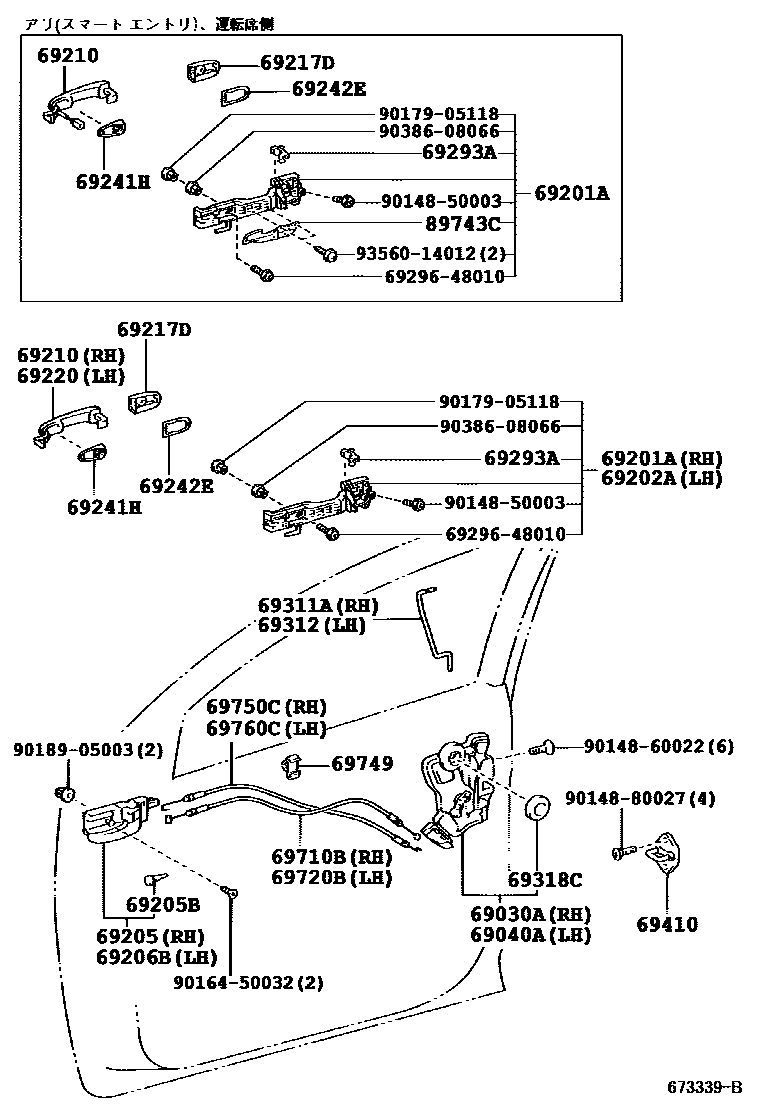

Toyota SIENTA — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
GRAY,TRIM1#,9#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
GRAY,TRIM1#,9#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SILVER M.M.,1E7
GRAY ME.,1G3
MAROON BROWN MICA,3S3
LT.GREEN ME.,6U6
LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S7
MAROON BROWN MICA,3S3
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,064
WHITE,068
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
LT.YELLOW,597
LT.GREEN ME.,6U6
AQUA M.M.,774
LAVENDER M.M.,949
GRAY ME.,1G3
BLUE MC.,8M6
LT.BLUE M.M.,8S7
MAROON BROWN MICA,3S3
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9017905118
main90179-05118
9018905003
main90189-05003
9038608066
main90386-08066
9356014012
main93560-14012
32 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota SIENTA
This section contains 32 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SIENTA. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
