Toyota SIENTA — FRONT AXLE HUB

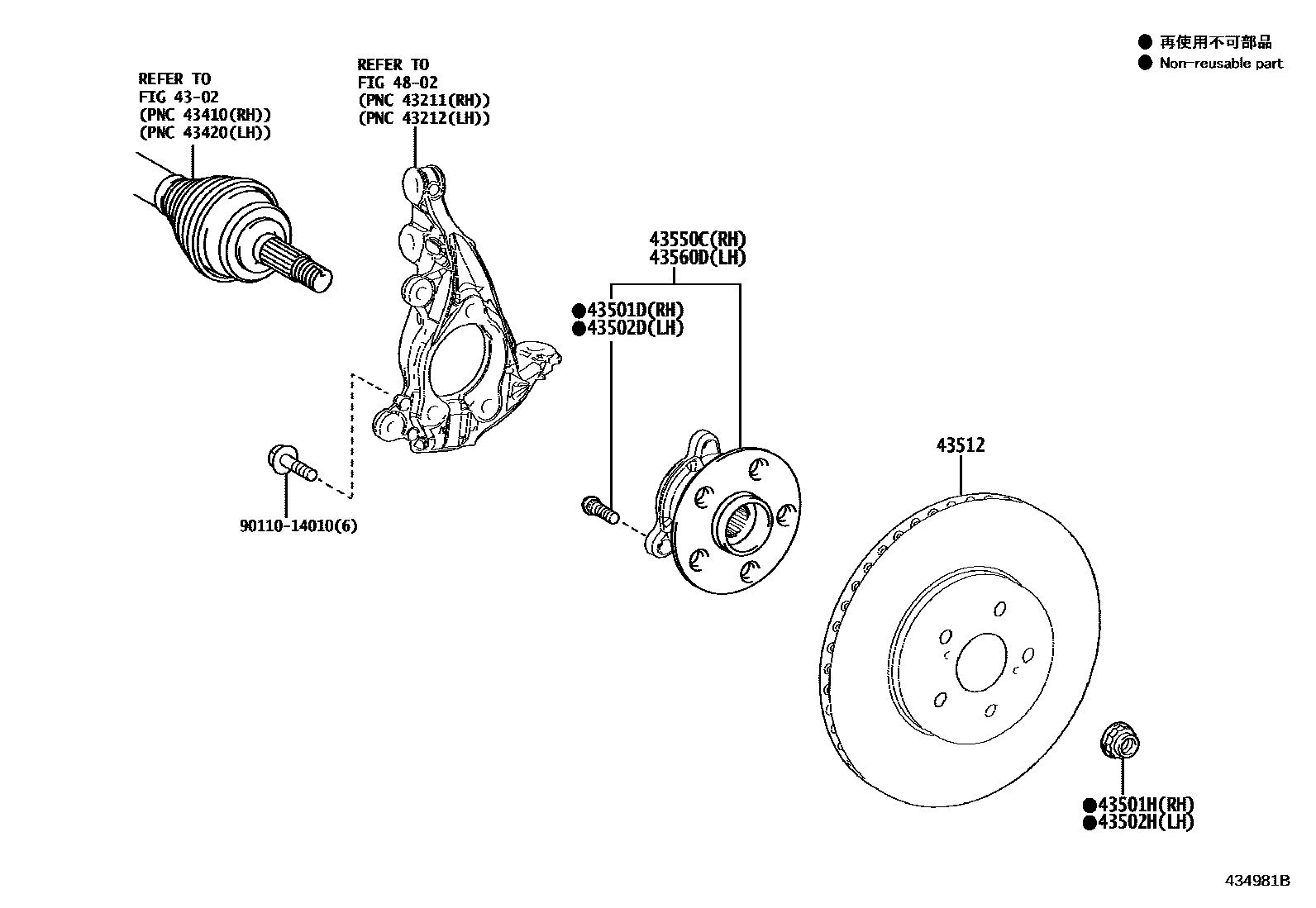

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i202207

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i202207

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202207

43512DISC, FRONT

main43512-52210×2i202207-202307

main43512-52211×2i202308

43550CHUB & BEARING ASSY, FRONT AXLE, RH

main43550-52020i202207

43560DHUB & BEARING ASSY, FRONT AXLE, LH

main43550-52020i202207

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011014010

main90110-14010

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SIENTA

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SIENTA. Key components include: FRONT DRIVE SHAFT, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), BOLT, HUB (FOR FRONT AXLE LH), NUT (FOR FRONT AXLE SHAFT LH).
