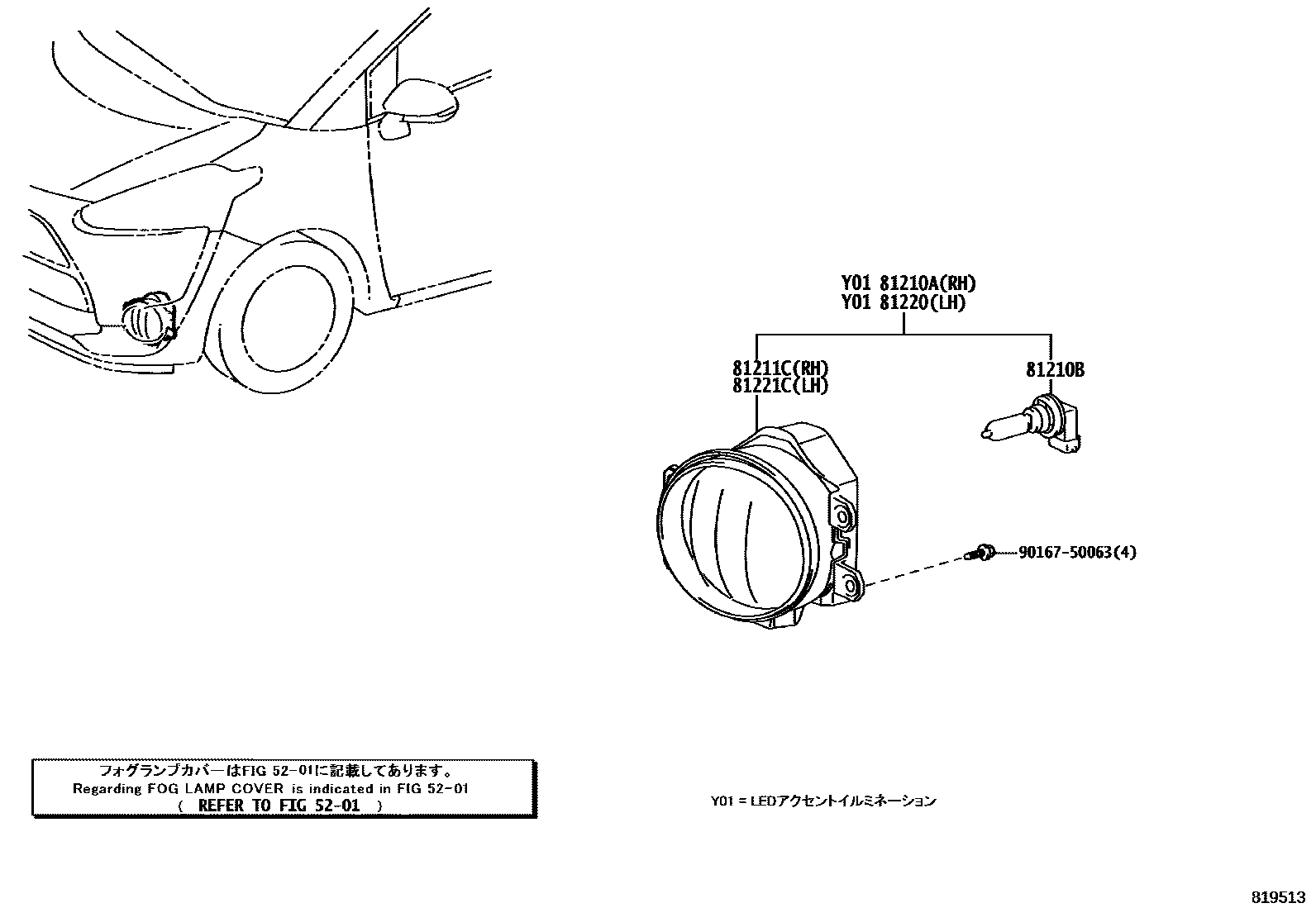

Toyota SIENTA — FOG LAMP
5201FRONT BUMPER & BUMPER STAY
81210ALAMP ASSY, FOG, RH
main81210-48051iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSG,G,WKG; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207
81210BBULB, FOG LAMP
81211CLAMP UNIT, FOG LAMP, RH
81220LAMP ASSY, FOG, LH
main81220-48051iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSG,G,WKG; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207
81221CLAMP UNIT, FOG LAMP, LH
9016750063
main90167-50063
7 parts on this diagram · 2 diagrams in section
FOG LAMP for Toyota SIENTA
This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota SIENTA. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH.
