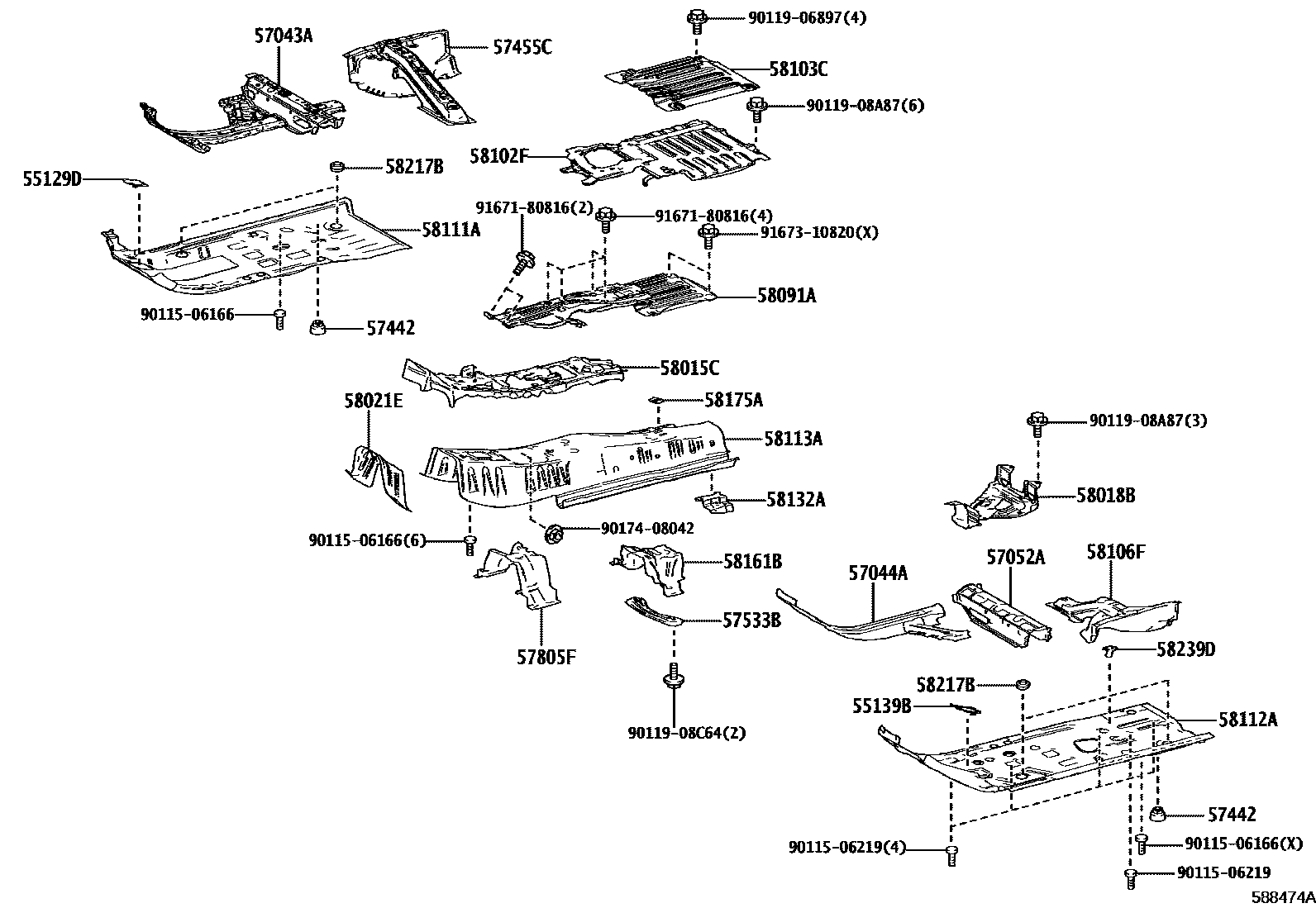

Toyota SIENTA — FLOOR PAN & LOWER BACK PANEL
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57442PLUG, STEP PANEL HOLE
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57533BBRACE, FRONT FLOOR, CENTER
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING
58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH
58021EPAN SUB-ASSY, CENTER FLOOR, NO.2
58091AREINFORCEMENT SET, BODY FITTING
58102FPANEL SUB-ASSY, FRONT FLOOR, LH
58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58111APAN, FRONT FLOOR, RH
58113APANEL, FRONT FLOOR, CENTER
58132ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58217BPLATE, FRONT FLOOR
58239DBRACKET, CABLE CLAMP
9011506166
main90115-06166
9011506219
main90115-06219
9011906897
main90119-06897
9011908A87
main90119-08A87
9011908C64
main90119-08C64
9017408042
main90174-08042
9167180816
main91671-80816
9167310820
main91673-10820
32 parts on this diagram · 6 diagrams in section
