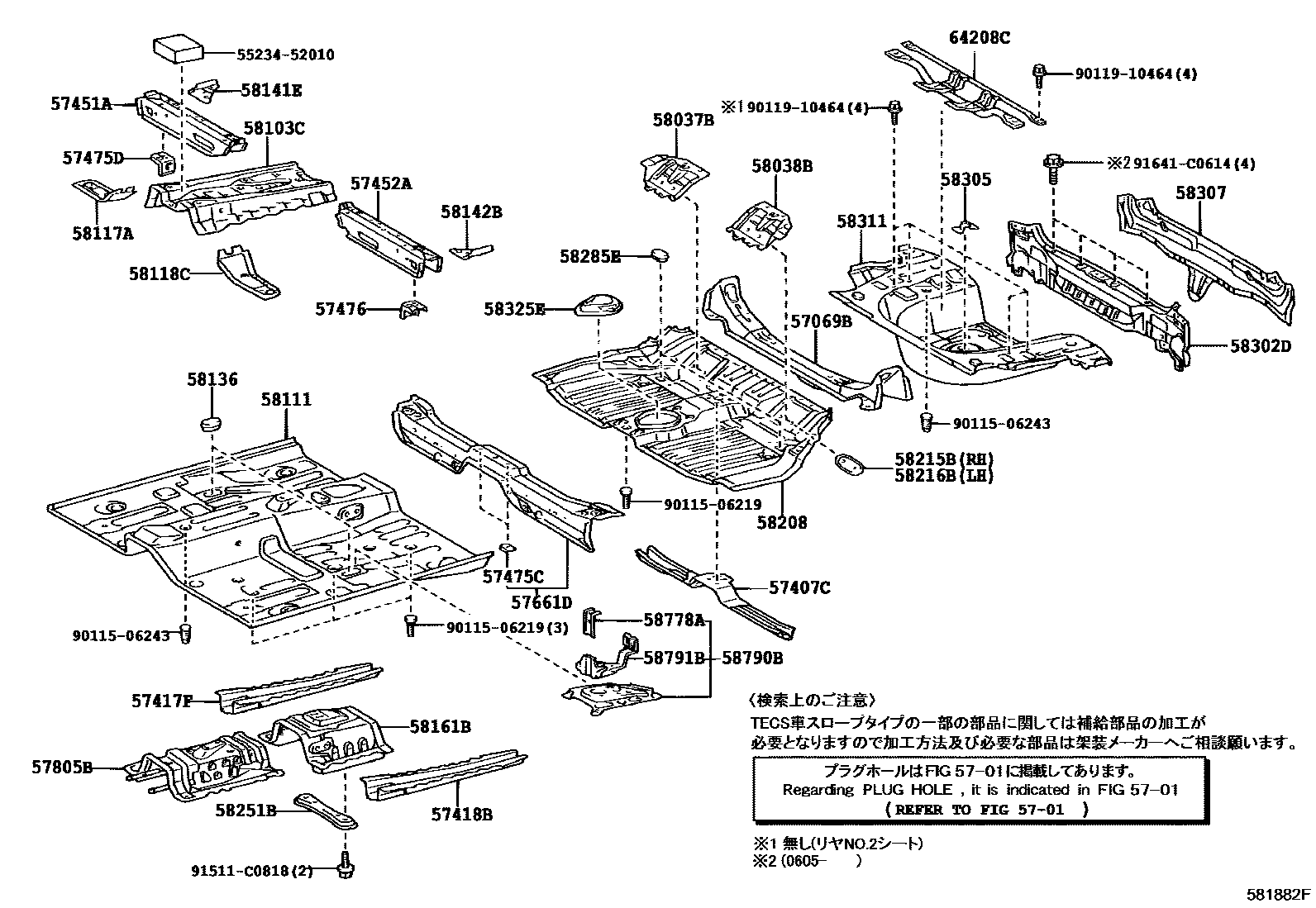

Toyota SIENTA — FLOOR PAN & LOWER BACK PANEL
5701
57069BMEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452AMEMBER, FRONT FLOOR CROSS, NO.2
57475CPLATE, FRONT FLOOR CROSSMEMBER
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58111PAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58136COVER, FRONT FLOOR HOLE
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58251BBRACE, FLOOR PANEL, FRONT
58285ECOVER, CENTER FLOOR HOLE
58302DPANEL SUB-ASSY, REAR FLOOR, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58325ECOVER, REAR FLOOR SERVICE HOLE
58778ABRACKET, JACK HOLDER, NO.1
58790BCARRIER ASSY, JACK
58791BCARRIER, JACK
64208CMEMBER SUB-ASSY, ROOM PARTITION CROSS
5523452010SHEET, DASH PANEL INSULATOR, NO.2
main55234-52010
9011506219
main90115-06219
9011506243
main90115-06243
9011910464
main90119-10464
91511C0818
main91511-C0818
91641C0614
main91641-C0614
42 parts on this diagram · 2 diagrams in section
