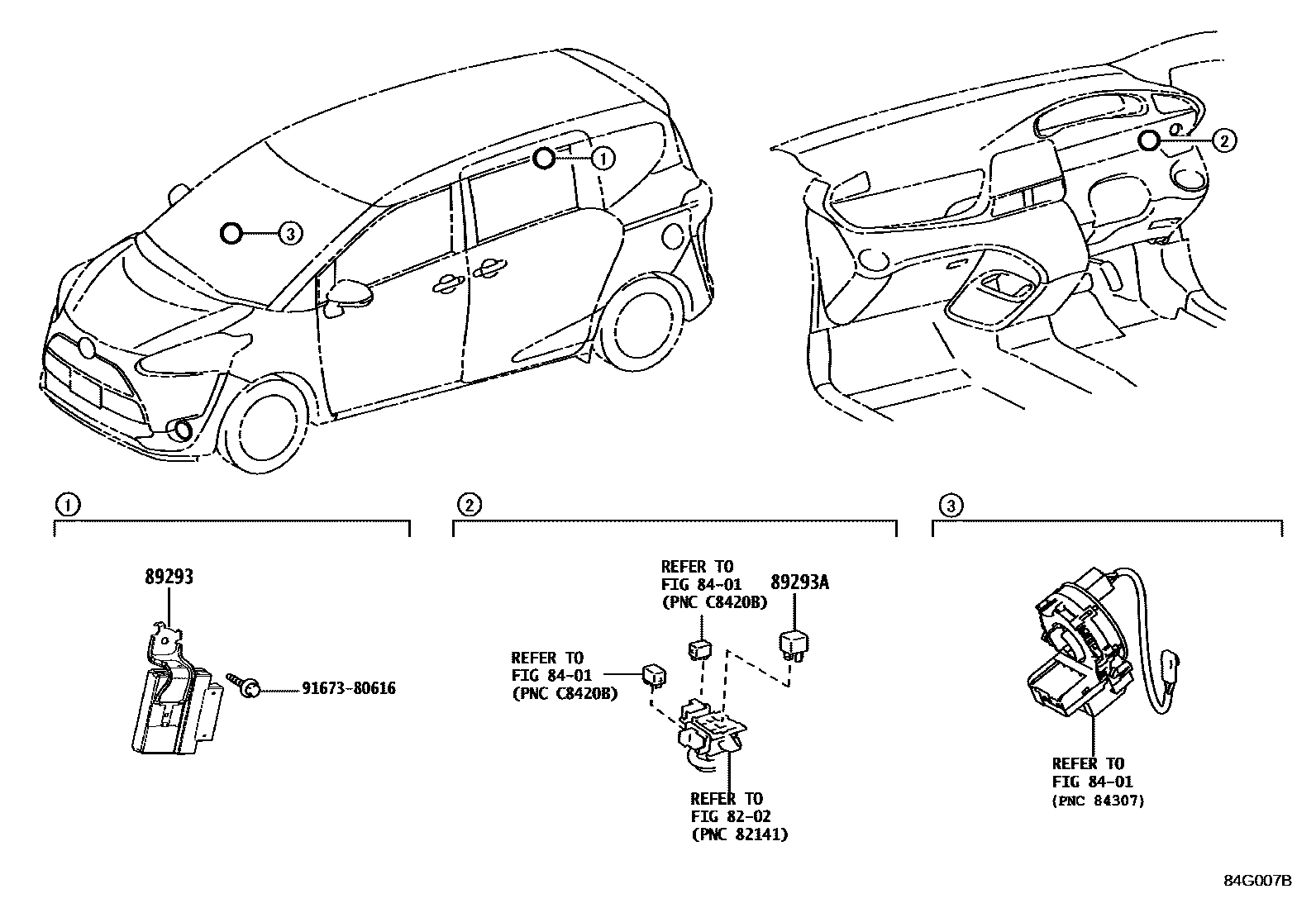

Toyota SIENTA — ELECTRONIC MODULATED SUSPENSION

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89293COMPUTER, SUSPENSION CONTROL

main89293-52030i201506-201809

89293ARELAY, SUSPENSION CONTROL

main90987-02025i201506-201809

9167380616

main91673-80616

5 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota SIENTA

This section contains 5 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota SIENTA. Key components include: WIRING & CLAMP, SWITCH & RELAY & COMPUTER, COMPUTER, SUSPENSION CONTROL, RELAY, SUSPENSION CONTROL.
