Toyota SIENTA — ELECTRONIC HEIGHT CONTROL

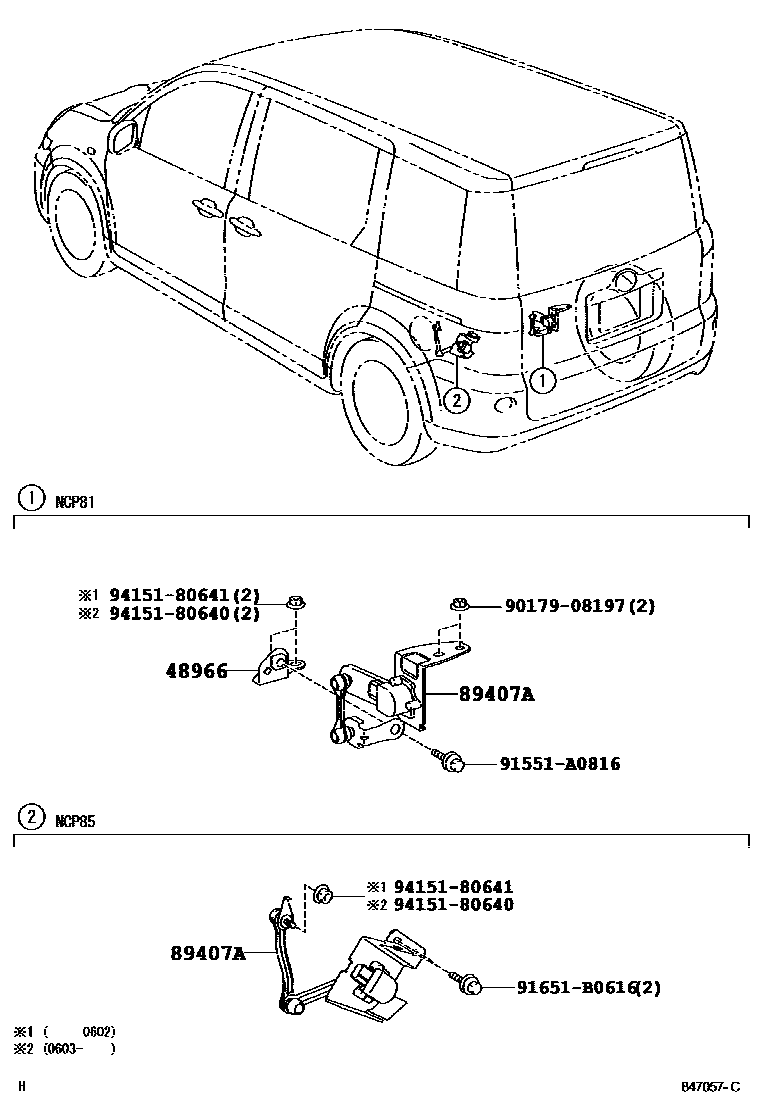

Parts diagram

48966BRACKET, SENSOR CONNECTING, REAR

main48966-52031i201106

main48966-52030i200605-200608

89407ASENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-12020i201106-201409

main89407-52101i201106-201108

main89407-52102i201109

main89407-52100i200508-200605

9017908197

main90179-08197

91551A0816

main91551-A0816

91651B0616

main91651-B0616

9415180640

main94151-80640

9415180641

main94151-80641

7 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota SIENTA

This section contains 7 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota SIENTA. Key components include: BRACKET, SENSOR CONNECTING, REAR, SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH.
