Toyota SIENTA — CRANKSHAFT & PISTON

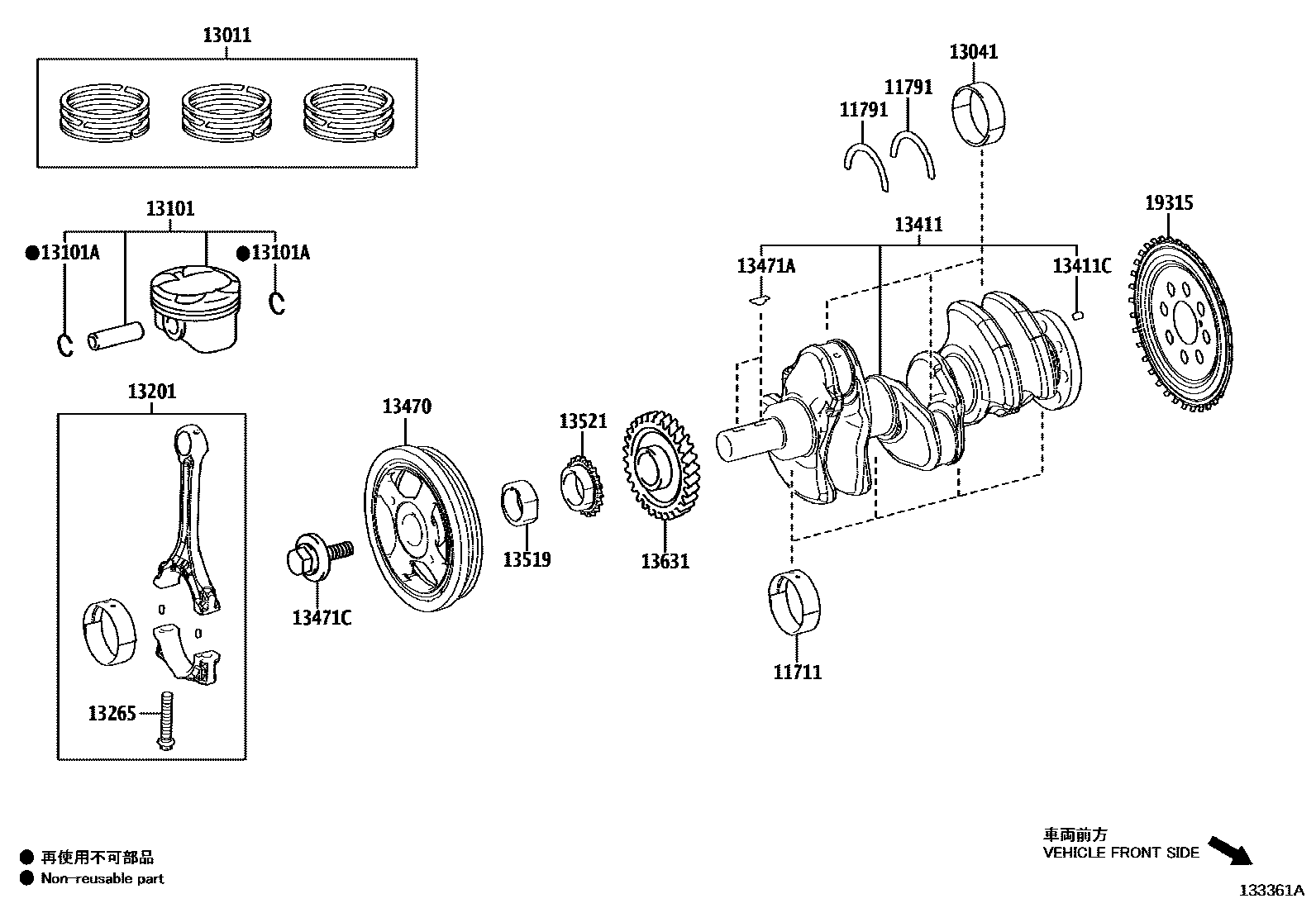

Parts diagram

11711BEARING, CRANKSHAFT

main11701-15060-01×4i202207-202303

main11701-15060-02×4i202207-202303

main11701-15060-03×4i202207-202303

main11701-15060-04×4i202207-202303

main11701-15060-05×4i202207-202303

main11701-15060-06×4i202207-202303

main11701-15061-01×4i202303

main11701-15061-02×4i202303

main11701-15061-03×4i202303

main11701-15061-04×4i202303

main11701-15061-05×4i202303

main11701-15061-06×4i202303

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2i202207

13011RING SET, PISTON

main13011-15150i202207

13041BEARING, CONNECTING ROD

main13041-24020-01×3i202207

main13041-24020-02×3i202207

main13041-24020-03×3i202207

13101PISTON SUB-ASSY, W/PIN

main13101-15060×3i202207

main13101-F2040×3i202207

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×6i202207

13201ROD SUB-ASSY, CONNECTING

main13201-29835-A0×3i202207

main13201-29835-B0×3i202207

main13201-29835-C0×3i202207

13265BOLT, CONNECTING ROD

main13265-25020×6i202207

13411CRANKSHAFT

main13401-15010i202207

main13401-F3030i202207

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202207

main90250-C0025i202402

13470PULLEY ASSY, CRANKSHAFT

main13470-15140i202207-202502

main13470-15150i202207

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202207

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202207

13519GEAR, OIL PUMP DRIVE

main13519-15010i202207

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-15030i202207

13631GEAR, BALANCESHAFT DRIVE

main13631-15010i202207

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202207

17 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota SIENTA

This section contains 21 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota SIENTA. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
