Toyota SIENTA — CRANKSHAFT & PISTON

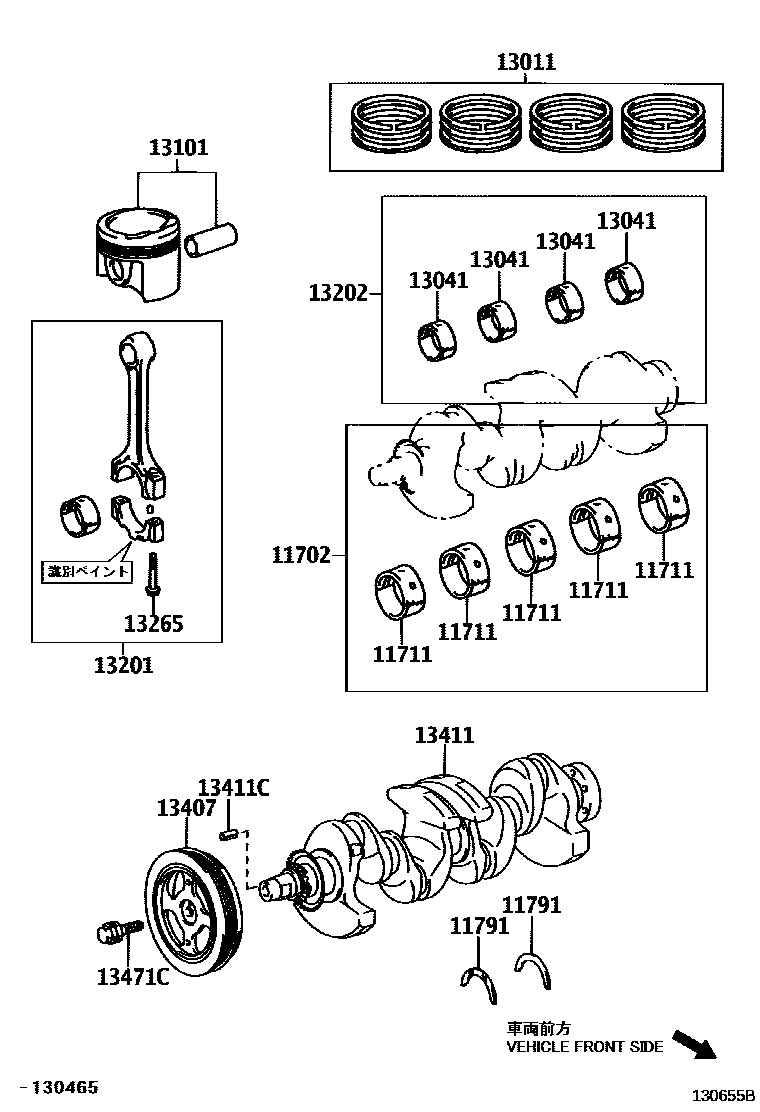

Parts diagram

11702BEARING SET, CRANKSHAFT

main11704-21031i200408-200605

main11704-21032i201308-201401

main11704-21033i201401

main11704-21040i200309-200408

11711BEARING, CRANKSHAFT

main11701-21031-01×5i200605-201008

main11701-21031-02×5i200605-201008

main11701-21031-03×5i201106-201308

main11701-21031-04×5i201106-201308

main11701-21032-01×5i201308-201312

main11701-21032-02×5i201308-201312

main11701-21032-03×5i201308-201312

main11701-21032-04×5i201308-201312

main11701-21033-01×5i201401

main11701-21033-02×5i201401

main11701-21033-03×5i201401

main11701-21033-04×5i201401

main11701-21040-01×5i200309-200408

main11701-21040-02×5i200309-200408

main11701-21040-03×5i200309-200408

main11701-21040-04×5i200309-200408

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i200605-201008

main11791-37010×2i201106

main11792-22020×2i200309-200605

main11792-37010×2i201310

main11793-22020×2i200605-201008

main11793-37010×2i201310

13011RING SET, PISTON

main13011-21041i200309-200605

main13011-21080i200309-200502

main13011-21090i200605-200806

main13011-21091i200806-201008

main13011-21120i201210-201409

13041BEARING, CONNECTING ROD

main13041-21022-01×4i200605-201008

main13041-21022-02×4i200605-201008

main13041-21022-03×4i200408-200605

main13041-21031-01×4i200309-200408

main13041-21031-02×4i200309-200408

main13041-21031-03×4i200309-200408

main13041-21033-01×4i201308

main13041-21033-02×4i201308

main13041-21033-03×4i201308

13101PISTON SUB-ASSY, W/PIN

main13101-21070×4i200605-201008

main13101-21090×4i200309-200502

main13101-21120×4i200502-200605

main13101-21160×4i201210-201409

13201ROD SUB-ASSY, CONNECTING

main13201-29315×4i200309-200404

main13201-29325×4i200309-200404

main13201-29425×4i200404-200408

main13201-29735×4i200408-200605

main13201-29736×4i201308-201401

main13201-29737×4i201401

13202BEARING SET, CONNECTING ROD

main13204-21022i201106-201308

main13204-21031i200309-200408

main13204-21033i201308

13265BOLT, CONNECTING ROD

main13265-21020×8i200309-200605

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21020i201106-201409

main13407-21031i200605-201008

main13407-21032i201205

13411CRANKSHAFT

main13401-21020i200309-200605

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i200309-200605

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i200309-200605

13 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota SIENTA

This section contains 13 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota SIENTA. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
