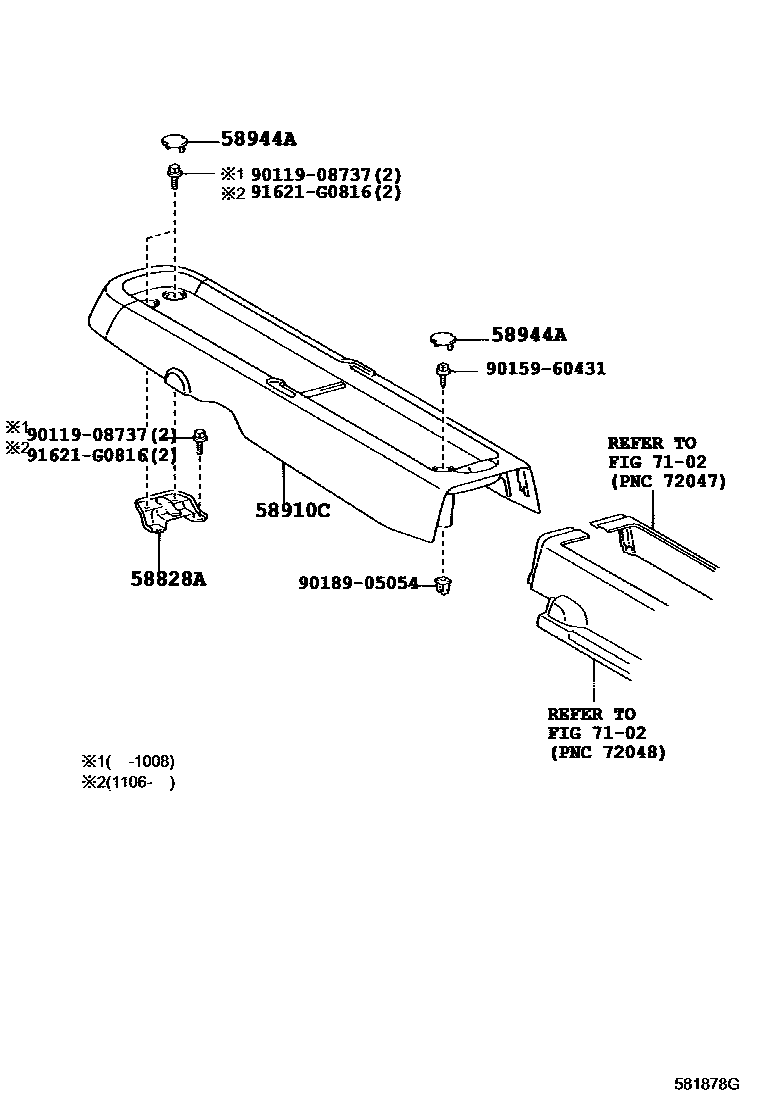

Toyota SIENTA — CONSOLE BOX & BRACKET

58828ABRACKET, CONSOLE BOX, LOWER

main58828-52010i200309-201008

58910CBOX ASSY, CONSOLE, REAR

main58911-52070-B0i200309-200605

DK.GRAY,TRIM0#,9#

main58911-52070-B0i200605-201506

DK.GRAY,TRIM0#

main58911-52070-B0i200605-201008

DK.GRAY,TRIM0#,1#,9#

main58911-52070-B0i201106-201506

DK.GRAY,TRIM0#,1#

main58911-52070-B0i201106-201506

DK.GRAY,TRIM1#

58944ACOVER, CONSOLE, REAR

main58944-52010-B0i200309-200605

DK.GRAY,TRIM0#,9#

main58944-52010-B0i200605-201506

DK.GRAY,TRIM0#

main58944-52010-B0i200605-201008

DK.GRAY,TRIM0#,1#,9#

main58944-52010-B0i201106-201506

DK.GRAY,TRIM0#,1#

main58944-52010-B0i201106-201506

DK.GRAY,TRIM1#

7102REAR SEAT & SEAT TRACK

→ Go to FIG 71-02

9011908737

main90119-08737

9015960431

main90159-60431

9018905054

main90189-05054

91621G0816

main91621-G0816

8 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota SIENTA

This section contains 8 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SIENTA. Key components include: BRACKET, CONSOLE BOX, LOWER, BOX ASSY, CONSOLE, REAR, COVER, CONSOLE, REAR, REAR SEAT & SEAT TRACK.
