Toyota SIENTA — BATTERY & BATTERY CABLE

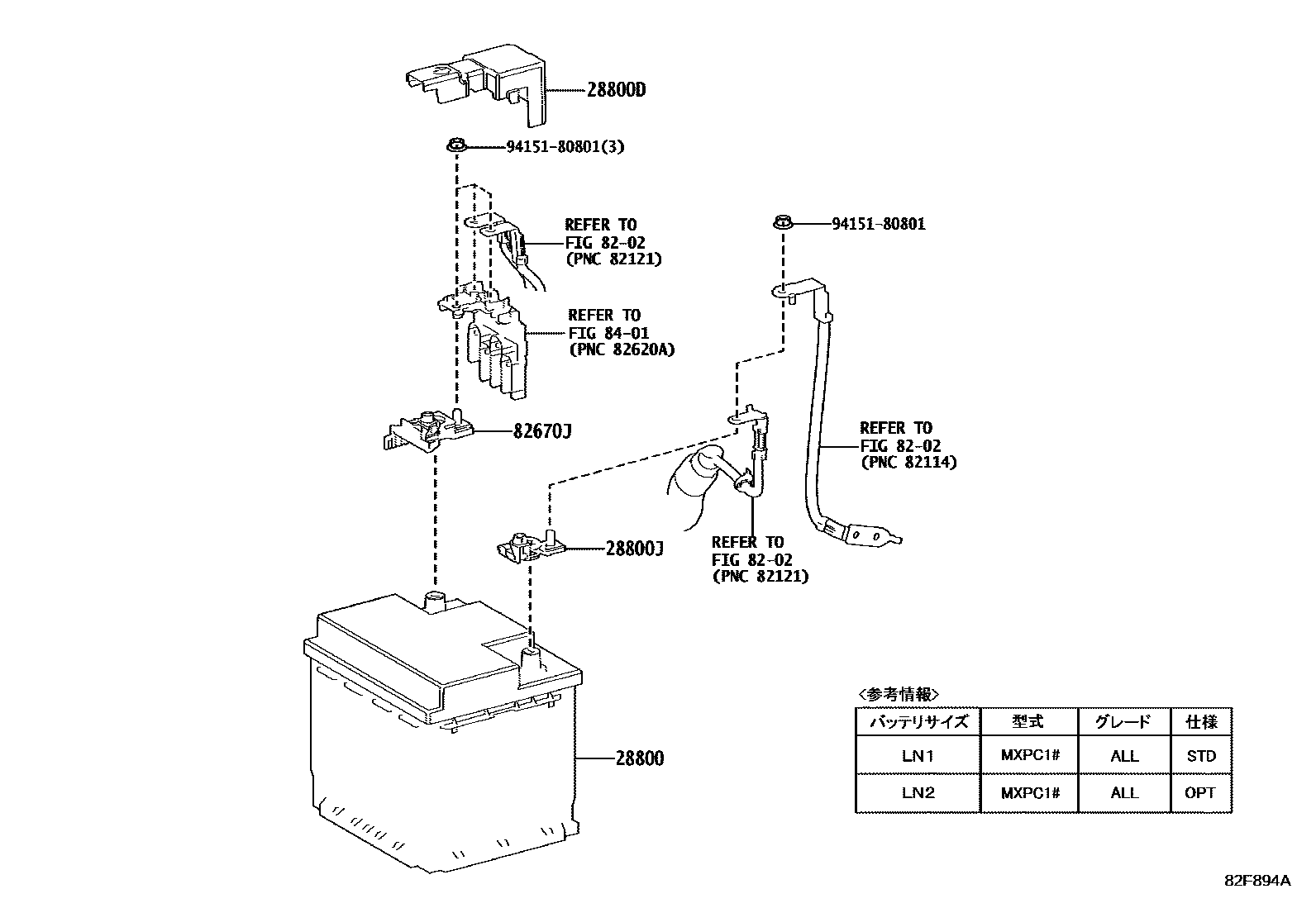

Parts diagram

28800BATTERY

main28800-37130i202207-202208

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-52170i202207

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i202207

8202WIRING & CLAMP

→ Go to FIG 82-02

82670JBLOCK ASSY, JUNCTION

main82670-K0010i202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

7 parts on this diagram · 4 diagrams in section

BATTERY & BATTERY CABLE for Toyota SIENTA

This section contains 48 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota SIENTA. Key components include: BATTERY, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, HOSE, BATTERY, INSULATOR, BATTERY.
