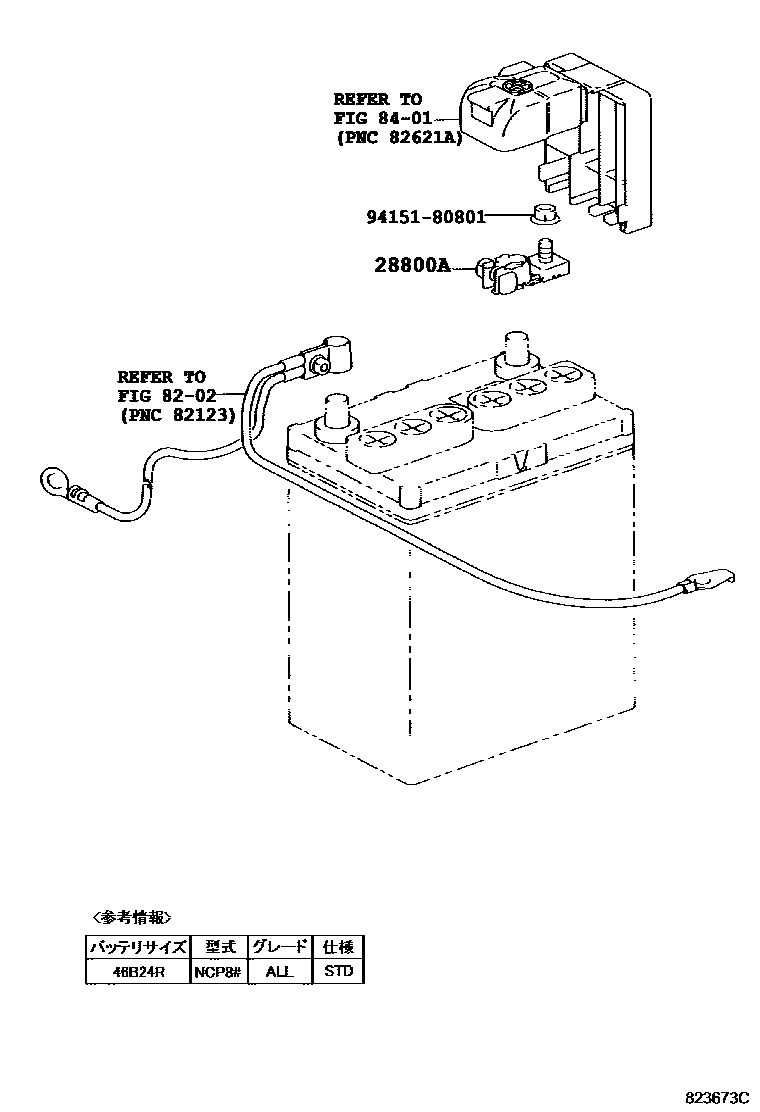

Toyota SIENTA — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05052i200309-200605

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

4 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota SIENTA

This section contains 4 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota SIENTA. Key components include: TERMINAL, BATTERY POSITIVE, WIRING & CLAMP, SWITCH & RELAY & COMPUTER.
