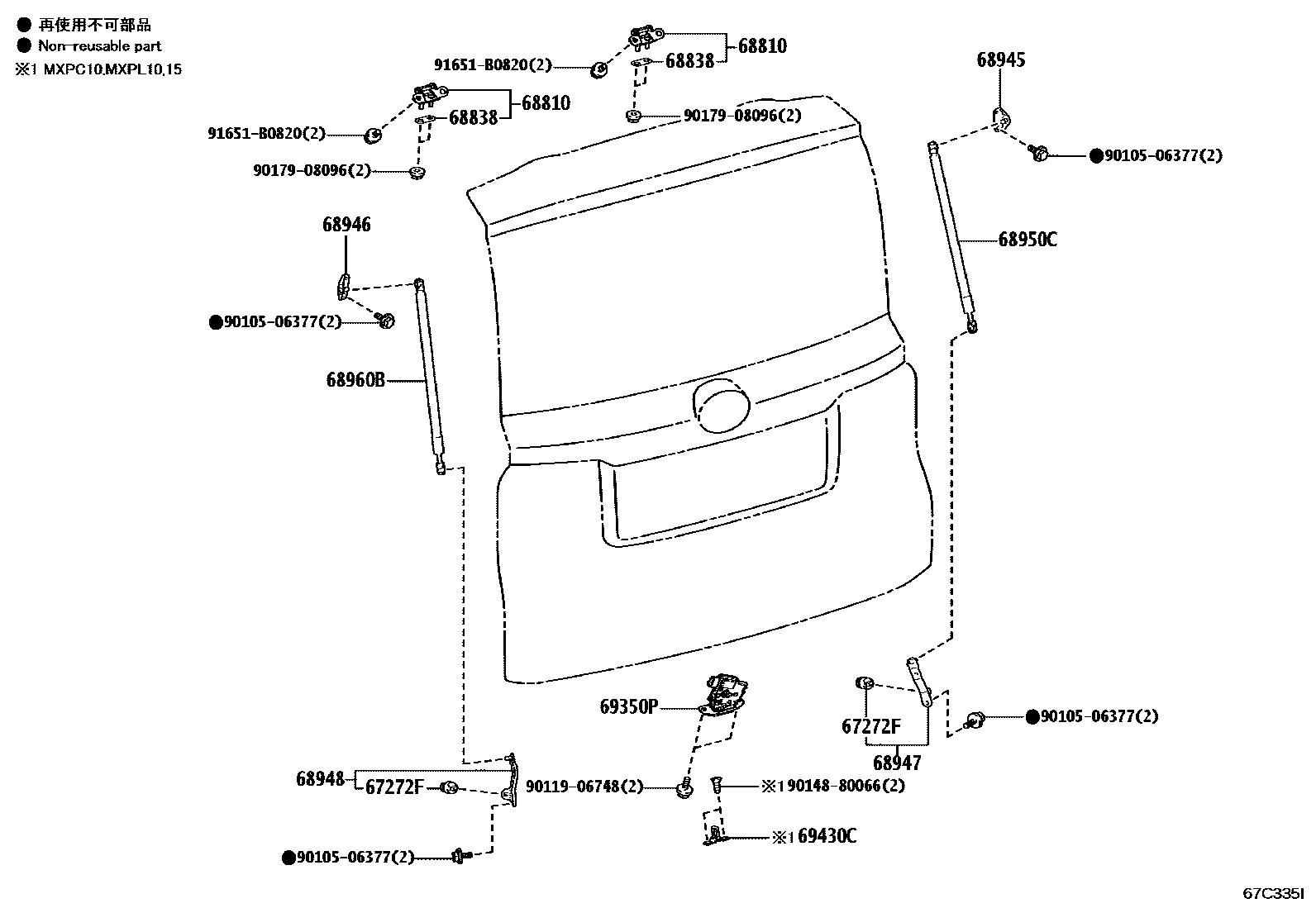

Toyota SIENTA — BACK DOOR LOCK & HANDLE
67272FCUSHION, BACK DOOR STOPPER, NO.2
68810HINGE ASSY, BACK DOOR, UPPER
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960BSTAY ASSY, BACK DOOR, LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506377
main90105-06377
9011906748
main90119-06748
9014880066
main90148-80066
9017908096
main90179-08096
91651B0820
main91651-B0820
16 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota SIENTA
This section contains 16 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota SIENTA. Key components include: CUSHION, BACK DOOR STOPPER, NO.2, HINGE ASSY, BACK DOOR, UPPER, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH.
