Toyota SIENTA — ARMREST & VISOR

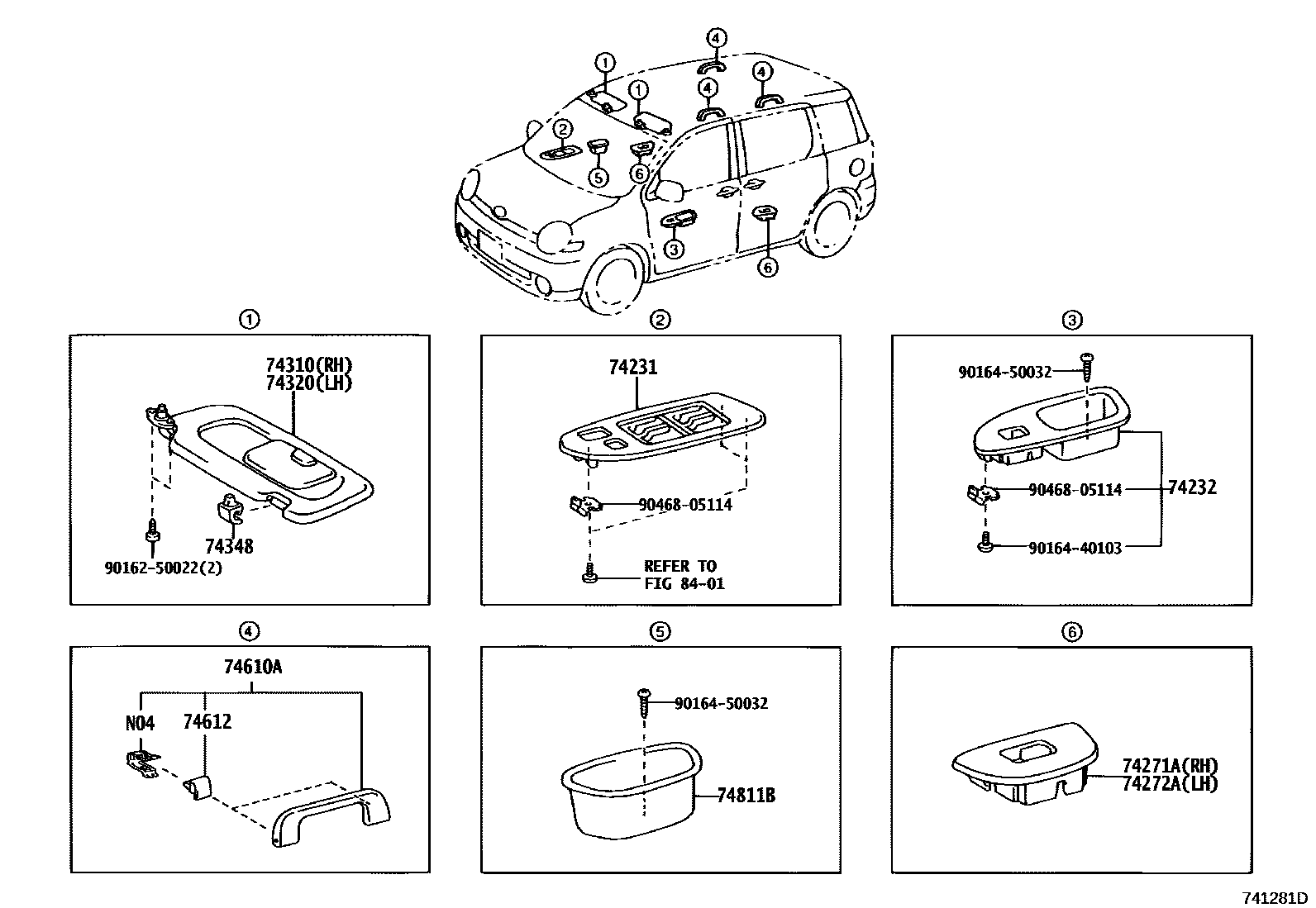

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-52220-A0i200309-201506
IVORY,TRIM0#
sub74231-52220
main74231-52220-B0i200605-201008
GRAY,TRIM1#,9#
sub74231-52220
main74231-52220-B0i200309-200605
GRAY,TRIM9#
sub74231-52220
main74231-52220-B1i201106-201506
MD.GRAY,TRIM1#
sub74231-52220
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-52180-A0i200309-201506
IVORY,TRIM0#
sub74232-52180
main74232-52180-B0i200605-201008
GRAY,TRIM1#,9#
sub74232-52180
main74232-52180-B0i200309-200605
GRAY,TRIM9#
sub74232-52180
main74232-52180-B1i201106-201506
MD.GRAY,TRIM1#
sub74232-52180
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-52060-A0i200309-201506
IVORY,TRIM0#
main74271-52060-B0i200605-201008
GRAY,TRIM1#,9#
main74271-52060-B0i200309-200605
GRAY,TRIM9#
main74271-52060-B1i201106-201506
MD.GRAY,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-52050-A0i200309-201506
IVORY,TRIM0#
main74272-52050-B0i200309-200605
GRAY,TRIM9#
main74272-52050-B0i200605-201008
GRAY,TRIM1#,9#
main74272-52050-B1i201106-201506
MD.GRAY,TRIM1#
74310VISOR ASSY, RH
main74310-52320-A0i200509-200605
IVORY,TRIM07
sub74310-52320
main74310-52320-A0i200309-200509
IVORY,TRIM0#
sub74310-52320
main74310-52320-A1i200605-200904
IVORY,TRIM0#
sub74310-52320
main74310-52320-B0i200509-200605
LT.GRAY,TRIM91
sub74310-52320
main74310-52320-B0i200309-200509
LT.GRAY,TRIM9#
sub74310-52320
main74310-52320-B1i200605-200904
LT.GRAY,TRIM1#,9#
sub74310-52320
main74310-52A00-A0i200904-201506
IVORY,TRIM0#
main74310-52A00-B0i200904-201506
LT.GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-52430-A0i200309-200509
IVORY,TRIM0#
sub74320-52430
main74320-52430-A0i200509-200605
IVORY,TRIM07
sub74320-52430
main74320-52430-A1i200605-200904
IVORY,TRIM0#
sub74320-52430
main74320-52430-B0i200509-200605
LT.GRAY,TRIM91
sub74320-52430
main74320-52430-B0i200309-200509
LT.GRAY,TRIM9#
sub74320-52430
main74320-52430-B1i200605-200904
LT.GRAY,TRIM1#,9#
sub74320-52430
main74320-52A40-A0i200904-201309
IVORY,TRIM0#
main74320-52A40-B0i200904-201309
LT.GRAY,TRIM1#
main74320-52E40-A0i201309-201506
IVORY,TRIM0#
main74320-52E40-B0i201309-201506
LT.GRAY,TRIM1#
74348HOLDER, VISOR
main74348-12040-A0i200309-201506
IVORY,TRIM0#
sub74348-12040
main74348-12040-B0i200309-200509
LT.GRAY,TRIM9#
sub74348-12040
main74348-12040-B4i200605-201506
GRAY,TRIM1#
sub74348-12040
main74348-12040-B4i200509-200605
GRAY,TRIM91
sub74348-12040
74610AGRIP SUB-ASSY, ASSIST
main74610-52020-A0i200512-201506
IVORY,TRIM0#
sub74610-52020
main74610-52020-B1i200512-200605
LT.GRAY,TRIM9#
sub74610-52020
main74610-52020-B1i200605-201008
LT.GRAY,TRIM1#,9#
sub74610-52020
main74610-52020-B1i201106-201506
LT.GRAY,TRIM1#
sub74610-52020
main74610-68010-A0i200309-200512
IVORY,TRIM0#
sub74610-52020
main74610-68010-B0i200309-200512
LT.GRAY,TRIM9#
sub74610-52020
74612COVER, ASSIST GRIP
main74612-52030-A0i200512-201506
IVORY,TRIM0#
main74612-52030-B1i200512-200605
LT.GRAY,TRIM9#
main74612-52030-B1i200605-201008
LT.GRAY,TRIM1#,9#
main74612-52030-B1i201106-201506
LT.GRAY,TRIM1#
main74612-68010-A0i200309-200512
IVORY,TRIM0#
sub74612-52030
main74612-68010-B0i200309-200512
LT.GRAY,TRIM9#
sub74612-52030
74811BHANDLE, DOOR PULL
main74811-52020-A0i200309-201506
IVORY,TRIM0#
main74811-52020-B0i200605-201008
GRAY,TRIM1#,9#
main74811-52020-B0i200309-200605
GRAY,TRIM9#
main74811-52020-B1i201106-201506
MD.GRAY,TRIM1#
8401
9016250022
main90162-50022
9016440103
main90164-40103
9016450032
main90164-50032
9046805114
main90468-05114

15 parts on this diagram · 1 diagram in section
