Toyota SIENTA — ALTERNATOR

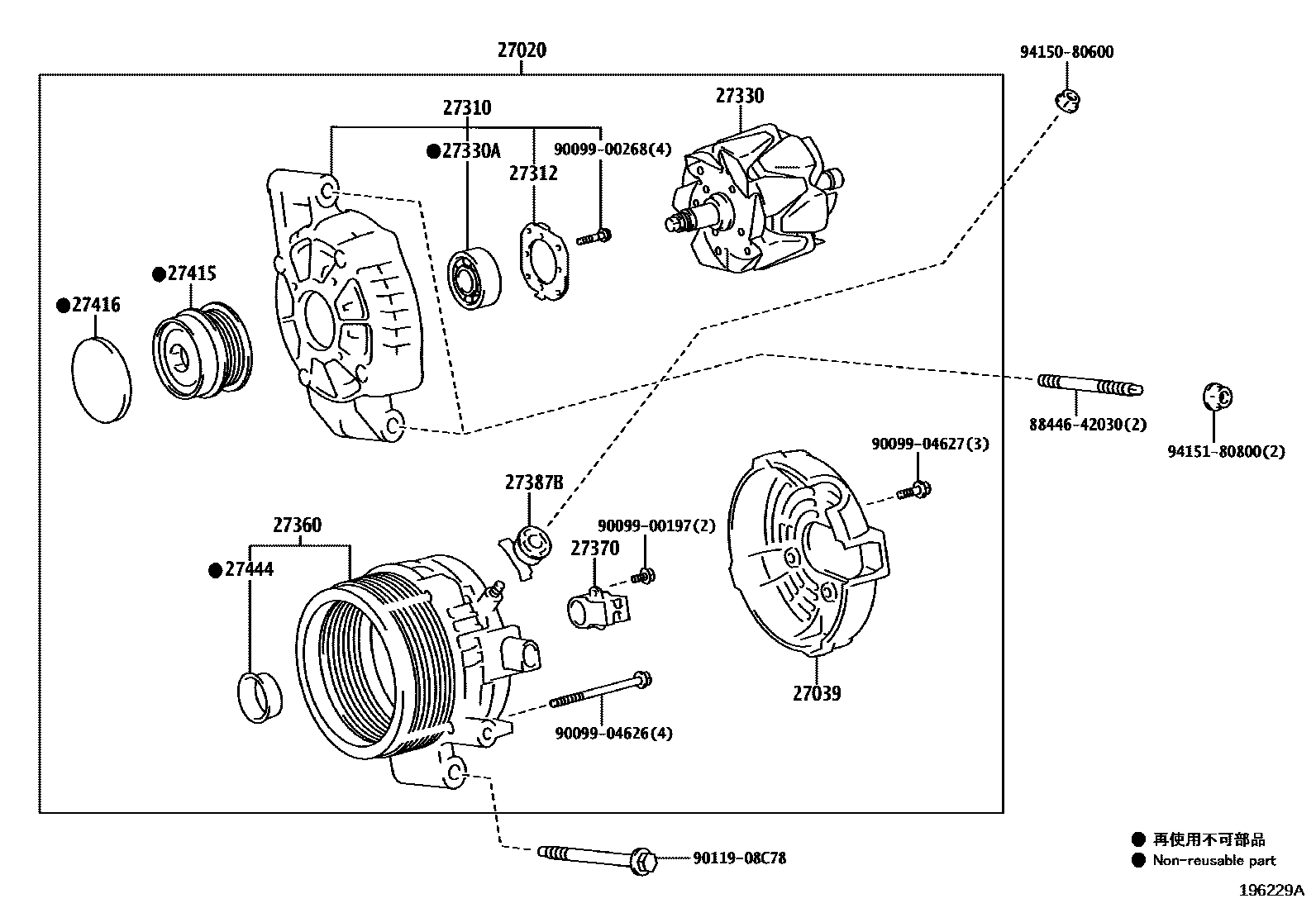

Parts diagram

27020ALTERNATOR ASSY

main27060-K0050i202207

27039COVER, ALTERNATOR REAR END

main27039-37220i202207

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150i202207

27312PLATE, RETAINER

main27312-72100i202207

27330ROTOR ASSY, ALTERNATOR

main27330-47330i202207

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10223i202207

27360COIL ASSY, ALTERNATOR

main27360-24150i202207

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i202207

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i202207

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-15020i202207

27416CAP, ALTERNATOR PULLEY

main27416-47010i202207

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i202207

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

9415080600

main94150-80600

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota SIENTA
