Toyota SIENTA — ALTERNATOR

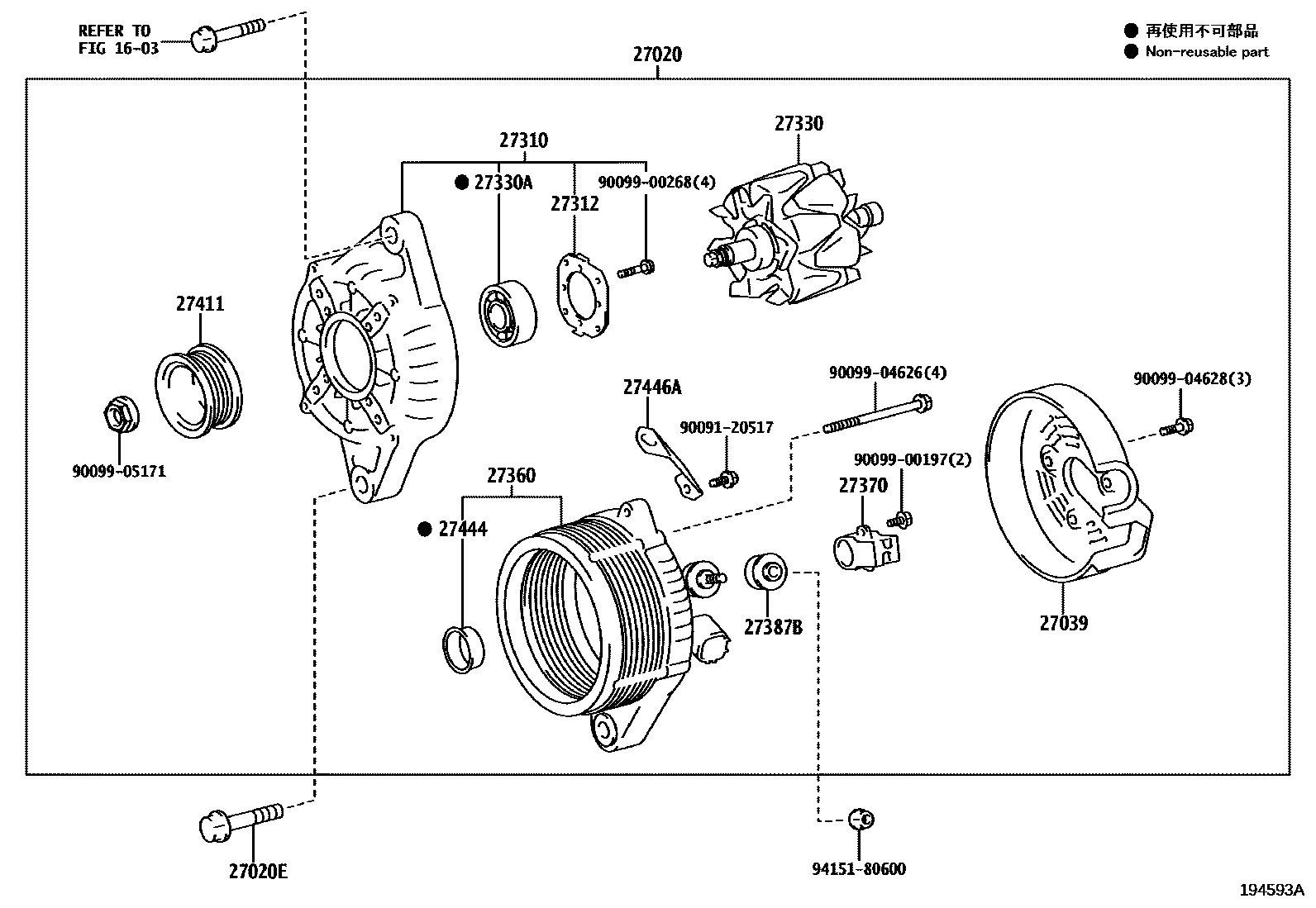

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

27020ALTERNATOR ASSY

main27060-21200i201506-201809

main27060-47270i201506-201710

main27060-47290i201710-201809

27020EBOLT(FOR ALTERNATOR)

main90105-10075i201506-201809

27039COVER, ALTERNATOR REAR END

main27039-47310i201809-202207

main27039-47330i201809-202207

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-21210i201506-201809

main27310-47330i201506-201809

27312PLATE, RETAINER

main27312-72100i201809-202207

27330ROTOR ASSY, ALTERNATOR

main27330-47310i201506-201809

main27330-47330i201506-201809

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10223i201506-201809

main90099-10227i201809-202207

27360COIL ASSY, ALTERNATOR

main27360-21210i201506-201809

main27360-47411i201506-201809

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i201506-201809

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i201506-201809

main27387-47310i201506-201809

27411PULLEY, ALTERNATOR

main27411-21210i201506-201809

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i201506-201809

27446ACLAMP

main27446-21020i201809-202207

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904628

main90099-04628

9009905171

main90099-05171

9415180600

main94151-80600

21 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota SIENTA

This section contains 27 genuine Toyota parts for the ALTERNATOR system of the Toyota SIENTA. Key components include: RADIATOR & WATER OUTLET, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), BOLT, NO.1(FOR ALTERNATOR), BOLT, NO.2(FOR ALTERNATOR).
