Toyota SIENTA — ALTERNATOR

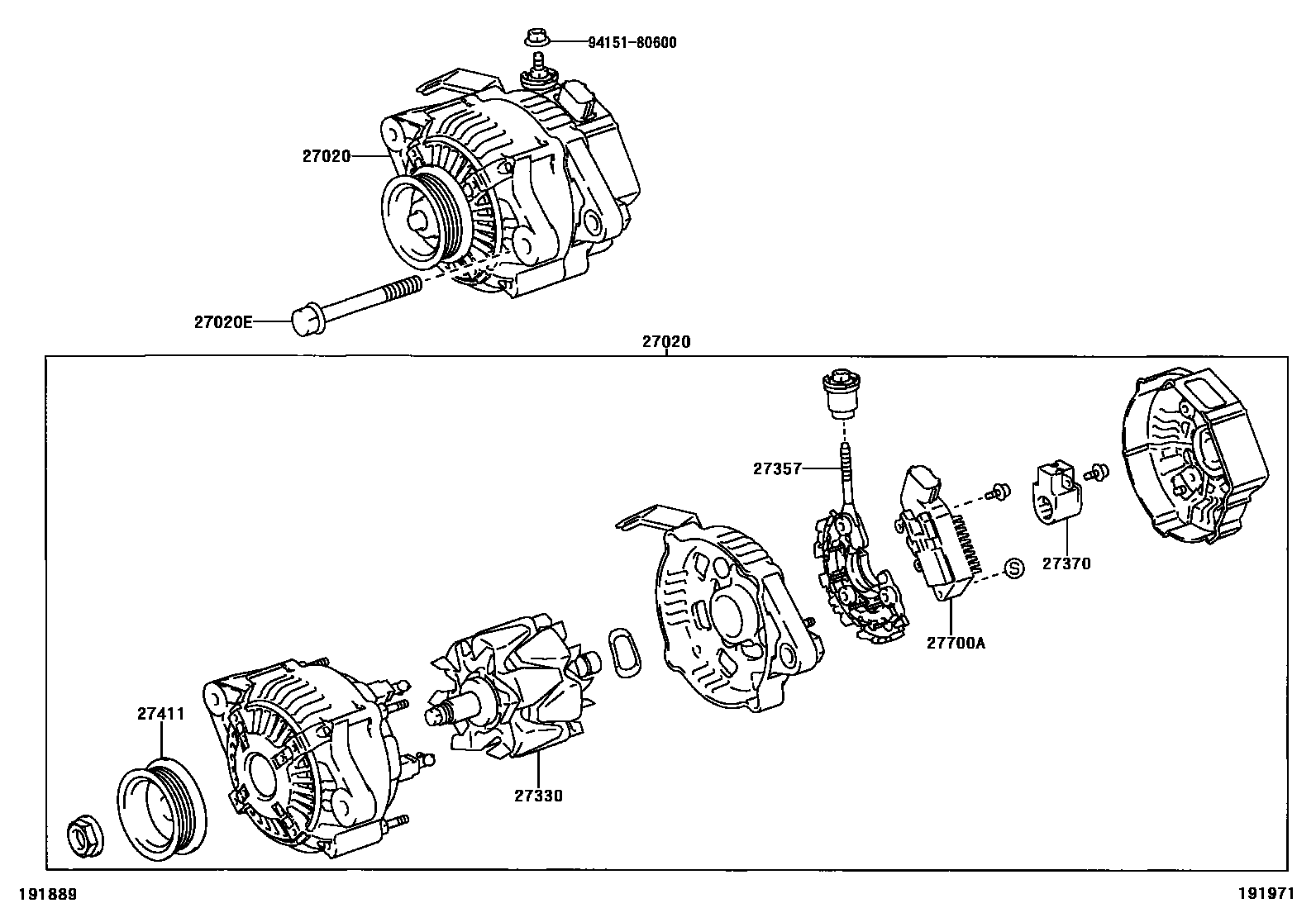

Parts diagram

27020ALTERNATOR ASSY

main27060-21111i200605-201008

main27060-21130i200605-200906

main27060-21131i201106

main27060-21160i201106-201409

27020EBOLT(FOR ALTERNATOR)

main90105-10075i200605-201008

27330ROTOR ASSY, ALTERNATOR

main27330-16390i200605-201008

main27330-30130i201106

main27330-62220i200605-200904

main27330-67100i201106-201409

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i200605-201008

main27357-22200i200605-201008

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i200605-201008

main27370-75060i200605-201008

27411PULLEY, ALTERNATOR

main27411-21030i200309-200605

main27411-70140i200309-200605

27700AREGULATOR ASSY, GENERATOR

main27700-21040i200309-200605

main27700-28080i200309-200605

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota SIENTA

This section contains 8 genuine Toyota parts for the ALTERNATOR system of the Toyota SIENTA. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), ROTOR ASSY, ALTERNATOR, HOLDER, ALTERNATOR, W/RECTIFIER, HOLDER ASSY, ALTERNATOR BRUSH.
