Toyota SIENTA — ABS & VSC

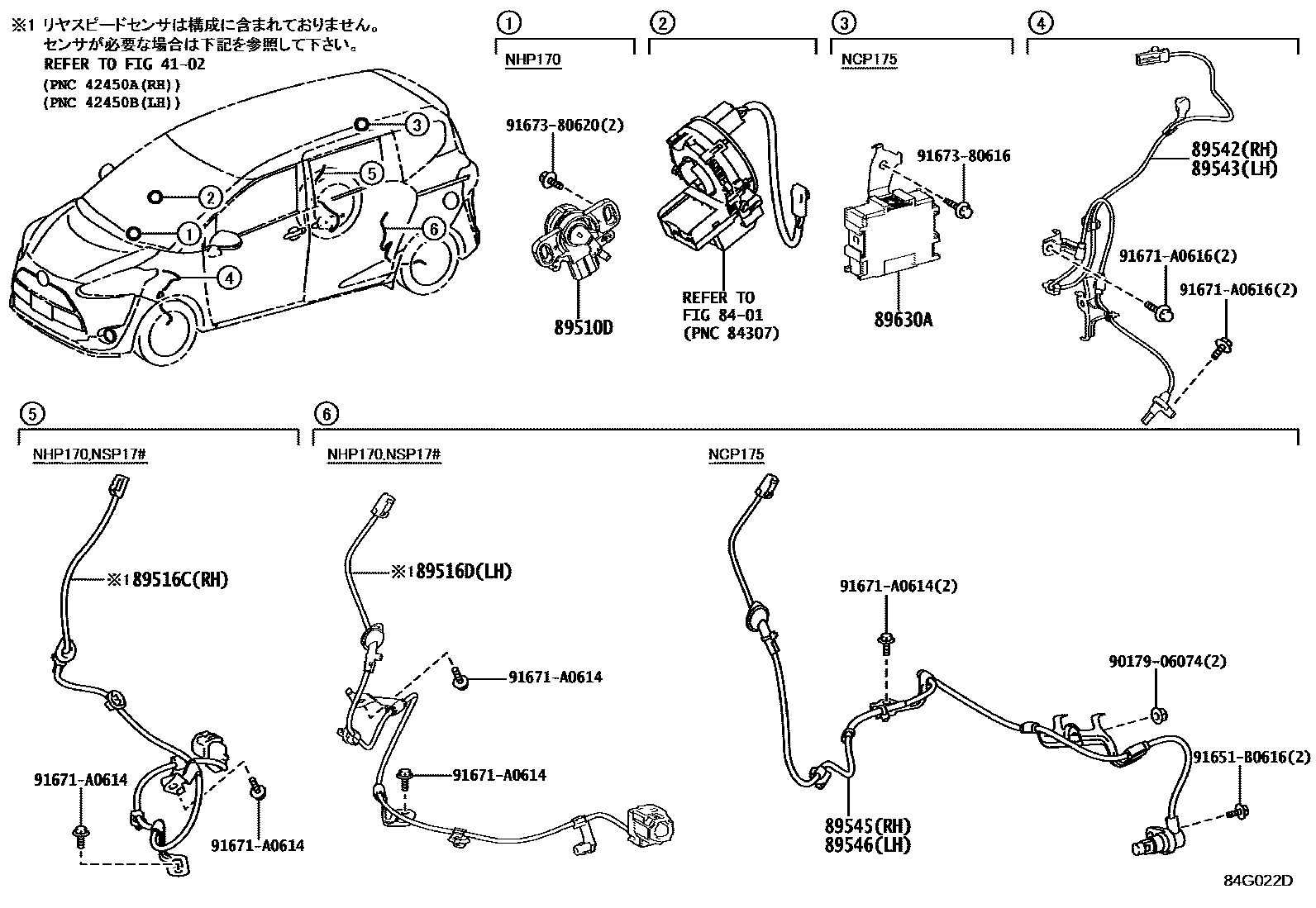

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020i201507-201809

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52170i201809-202207

main89516-52190i201809-202207

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52180i201506-201809

main89516-52200i201506-201809

89542SENSOR, SPEED, FRONT RH

main89542-52100i201506-201809

main89542-52130i201809-202207

89543SENSOR, SPEED, FRONT LH

main89543-52100i201506-201809

main89543-52130i201809-202207

89545SENSOR, SPEED, REAR RH

main89545-52070i201506-201809

89546SENSOR, SPEED, REAR LH

main89546-52070i201506-201809

89630ACOMPUTER ASSY, 4WD

main89630-52070i201506-201809

9017906074

main90179-06074

91651B0616

main91651-B0616

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9167380616

main91673-80616

9167380620

main91673-80620

16 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota SIENTA

This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota SIENTA. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, RH, WIRE, SKID CONTROL SENSOR, LH.
