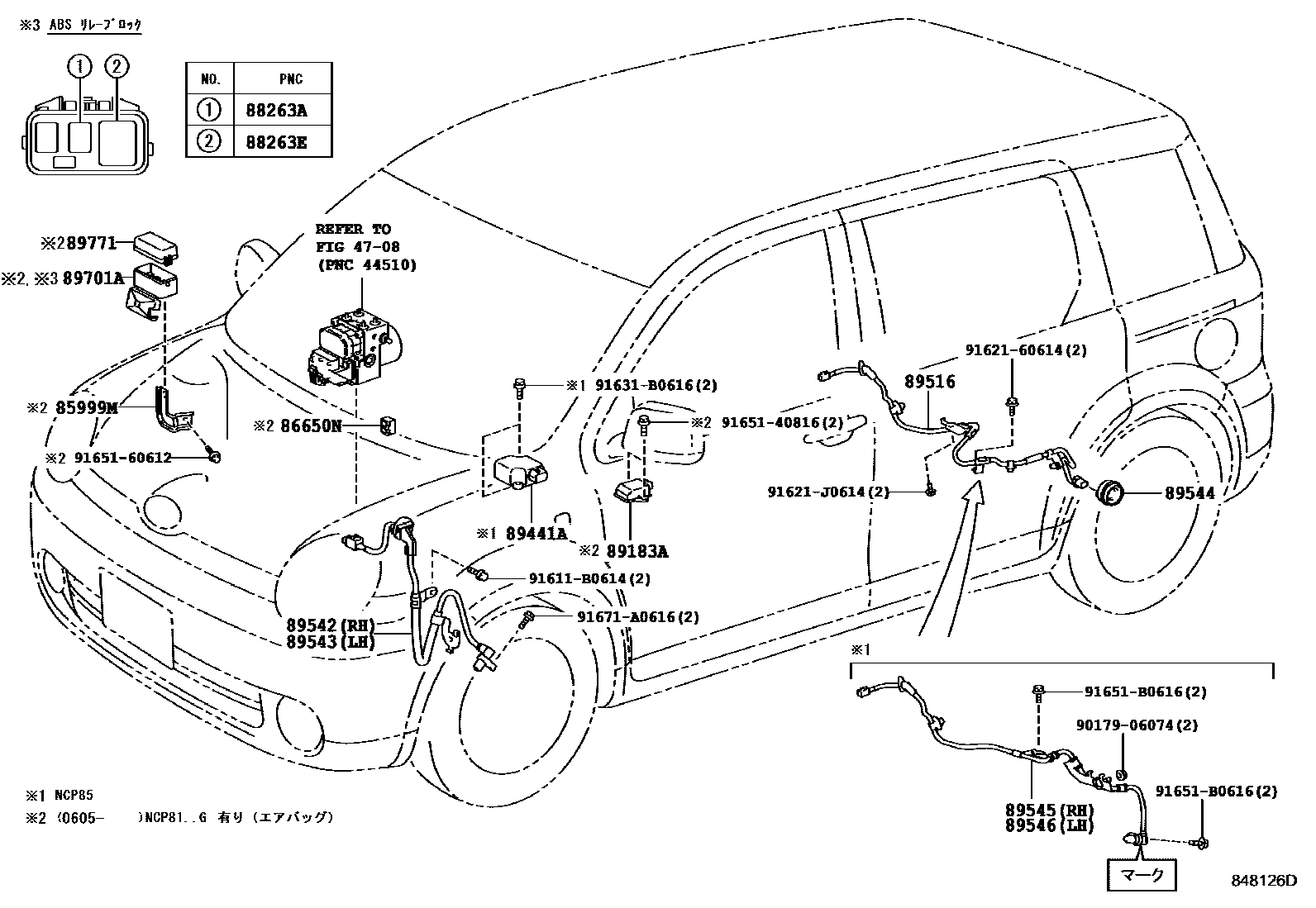

Toyota SIENTA — ABS & VSC
4708BRAKE TUBE & CLAMP
85999MBRACKET, RELAY
86650NBUZZER ASSY
88263ARELAY, SKID CONTROL
88263ERELAY, SKID CONTROL NO.2
89441ASENSOR, DECELERATION
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89701ABLOCK SUB-ASSY, ABS RELAY
89771COVER, ABS RELAY BLOCK, UPPER
9017906074
main90179-06074
91611B0614
main91611-B0614
9162160614
main91621-60614
91621J0614
main91621-J0614
91631B0616
main91631-B0616
9165140816
main91651-40816
9165160612
main91651-60612
91651B0616
main91651-B0616
91671A0616
main91671-A0616
24 parts on this diagram · 3 diagrams in section
ABS & VSC for Toyota SIENTA
This section contains 29 genuine Toyota parts for the ABS & VSC system of the Toyota SIENTA. Key components include: REAR AXLE SHAFT & HUB, BRAKE TUBE & CLAMP, BRACKET, RELAY, BUZZER ASSY, RELAY, SKID CONTROL.
