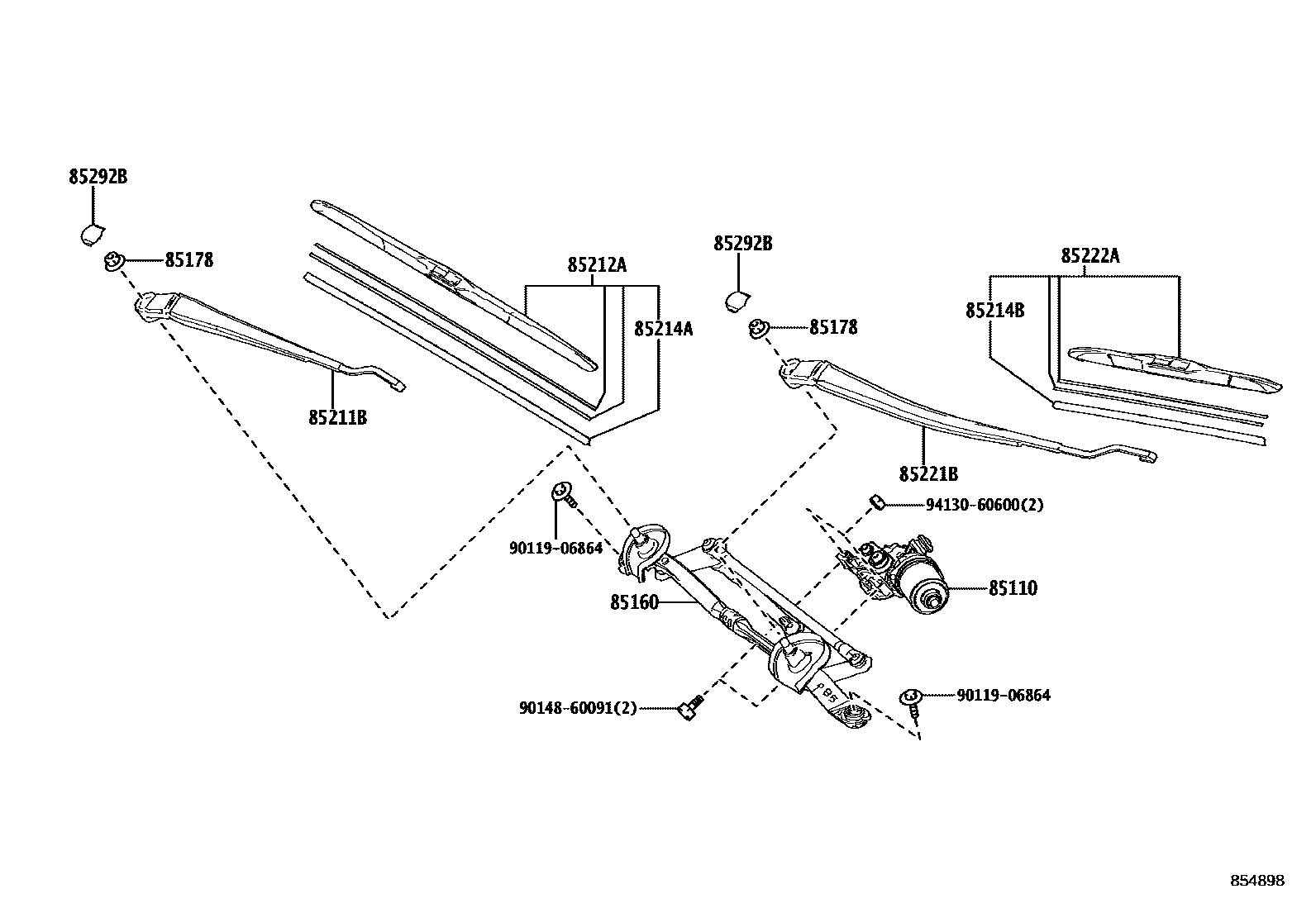

Toyota SIENTA (JPP) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52880i202207-202405

85160LINK ASSY, WINDSHIELD WIPER

main85150-52700i202207-202405

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i202207-202405

85211BARM, FRONT WIPER, RH

main85211-52660i202207-202405

85212ABLADE, FR WIPER, RH

main85212-52340i202207-202405

85214ARUBBER, WIPER, RH

main85214-52110i202207-202405

85214BRUBBER, WIPER, LH

main85214-68030i202207-202405

85221BARM, FRONT WIPER, LH

main85221-52600i202207-202405

85222ABLADE, FR WIPER, LH

main85222-52360i202207-202405

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i202207-202405

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota SIENTA (JPP)

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SIENTA (JPP). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
