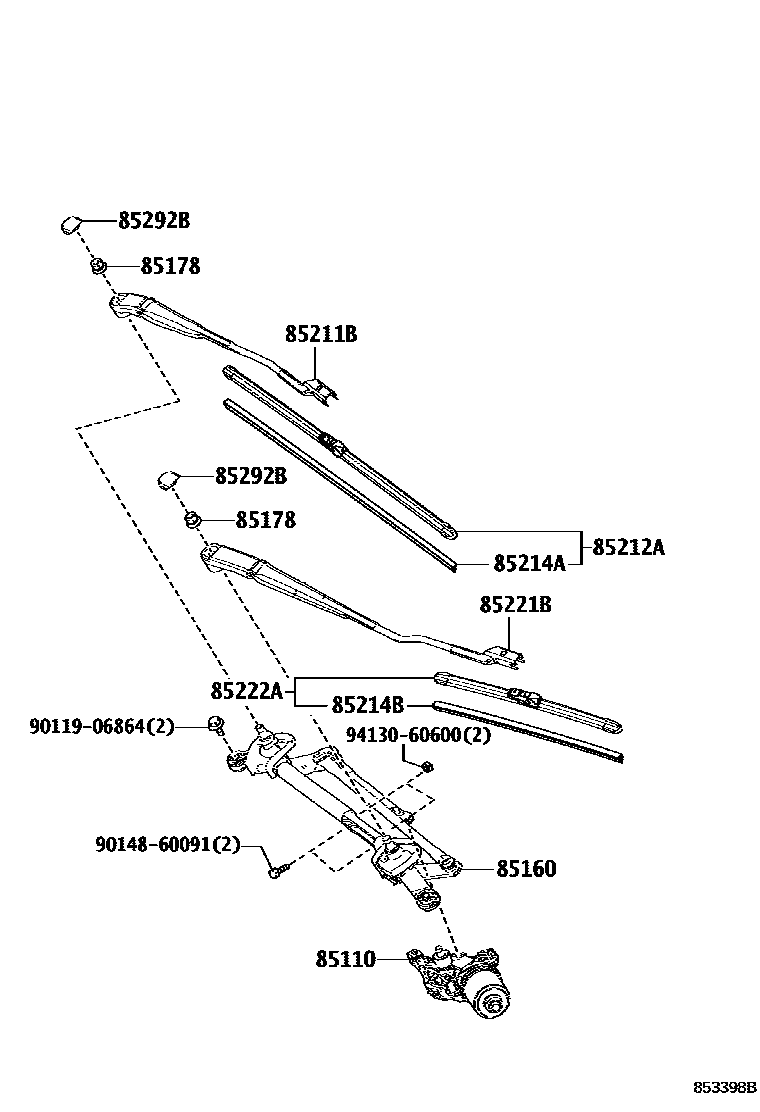

Toyota SIENTA (JPP) — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
9011906864
main90119-06864
9014860091
main90148-60091
9413060600
main94130-60600
13 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota SIENTA (JPP)
This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SIENTA (JPP). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
