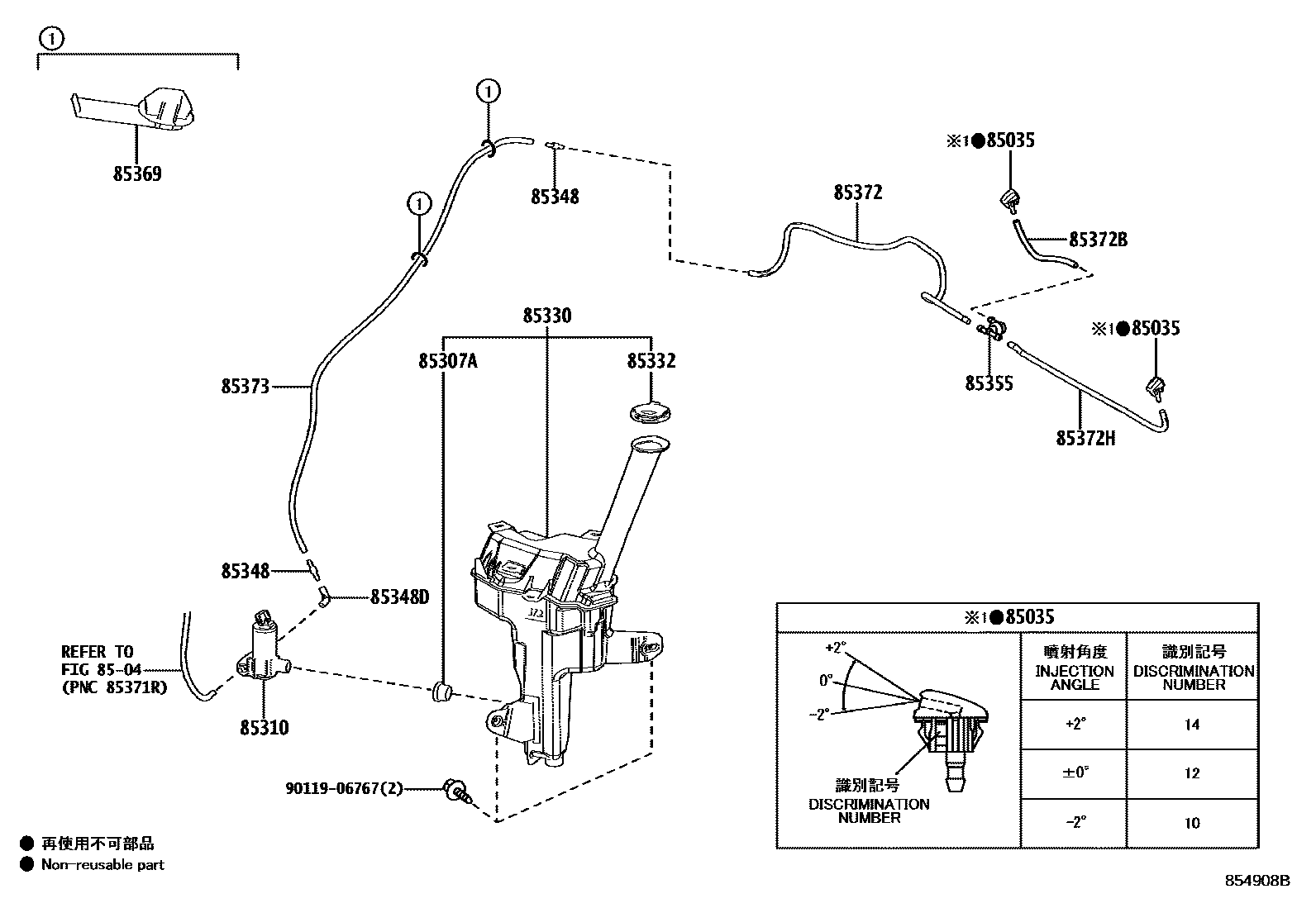

Toyota SIENTA (JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2i202207-202405

ANGLE 0

main85381-52440×2i202207-202405

ANGLE -2

main85381-52450×2i202207-202405

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85307AGROMMET SUB-ASSY, WASHER, NO.1

main90099-32089i202207

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47091i202207-202405

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0040i202207-202405

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i202207-202405

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2i202207

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230i202207-202405

85355VALVE, WINDSHIELD WASHER HOSE

main85321-52010i202207-202405

85369CLAMP

main82711-52090×2i202207-202405

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46249i202207-202405

L=700

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46250i202207-202405

L=170

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90069-46251i202207-202405

L=380

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62095i202207-202405

L=720

9011906767

main90119-06767

15 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SIENTA (JPP)

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SIENTA (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, GROMMET SUB-ASSY, WASHER, NO.1, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
