Toyota SIENTA (JPP) — MOUNTING

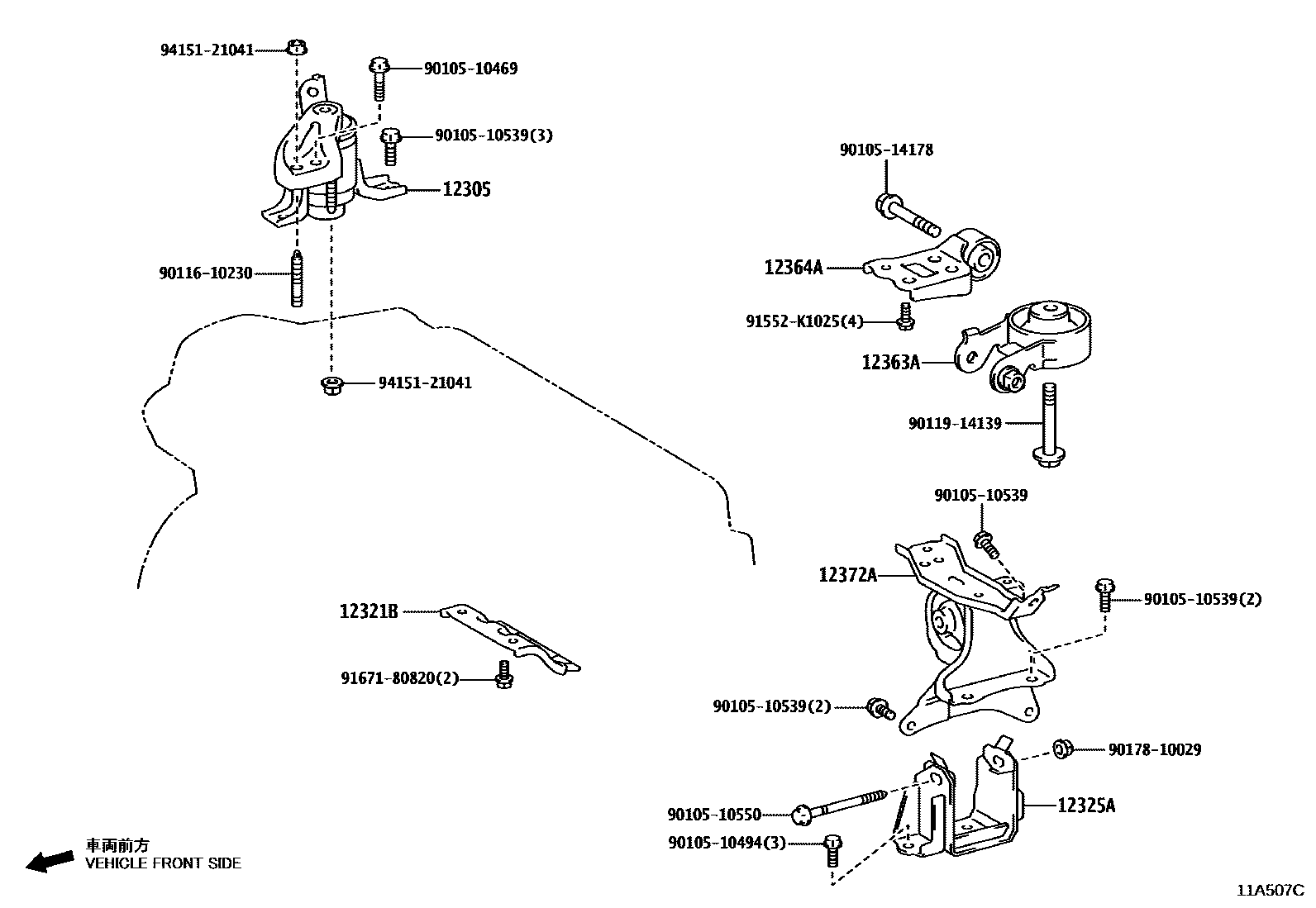

Parts diagram

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21451i201507-201805

main12305-21570i201806-201809

main12305-47041i201506-201809

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43498-12070i201506-201809

main43498-52090i201507-201809

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21260i201507-201809

main12325-47130i201809-202207

12363AROD, ENGINE MOVING CONTROL

main12363-21151i201506-201809

main12363-21161i201809-202207

12364AROD, ENGINE LATERAL CONTROL

main12364-21110i201809-202207

main12364-21130i201809-202207

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21390i201507-201809

main12372-47160i201809-202207

9010510469

main90105-10469

9010510494

main90105-10494

9010510539

main90105-10539

9010510550

main90105-10550

9010514178

main90105-14178

9011610230

main90116-10230

9011914139

main90119-14139

9017810029

main90178-10029

91552K1025

main91552-K1025

9167180820

main91671-80820

9415121041

main94151-21041

17 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota SIENTA (JPP)

This section contains 22 genuine Toyota parts for the MOUNTING system of the Toyota SIENTA (JPP). Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT, BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), ROD, ENGINE MOVING CONTROL.
