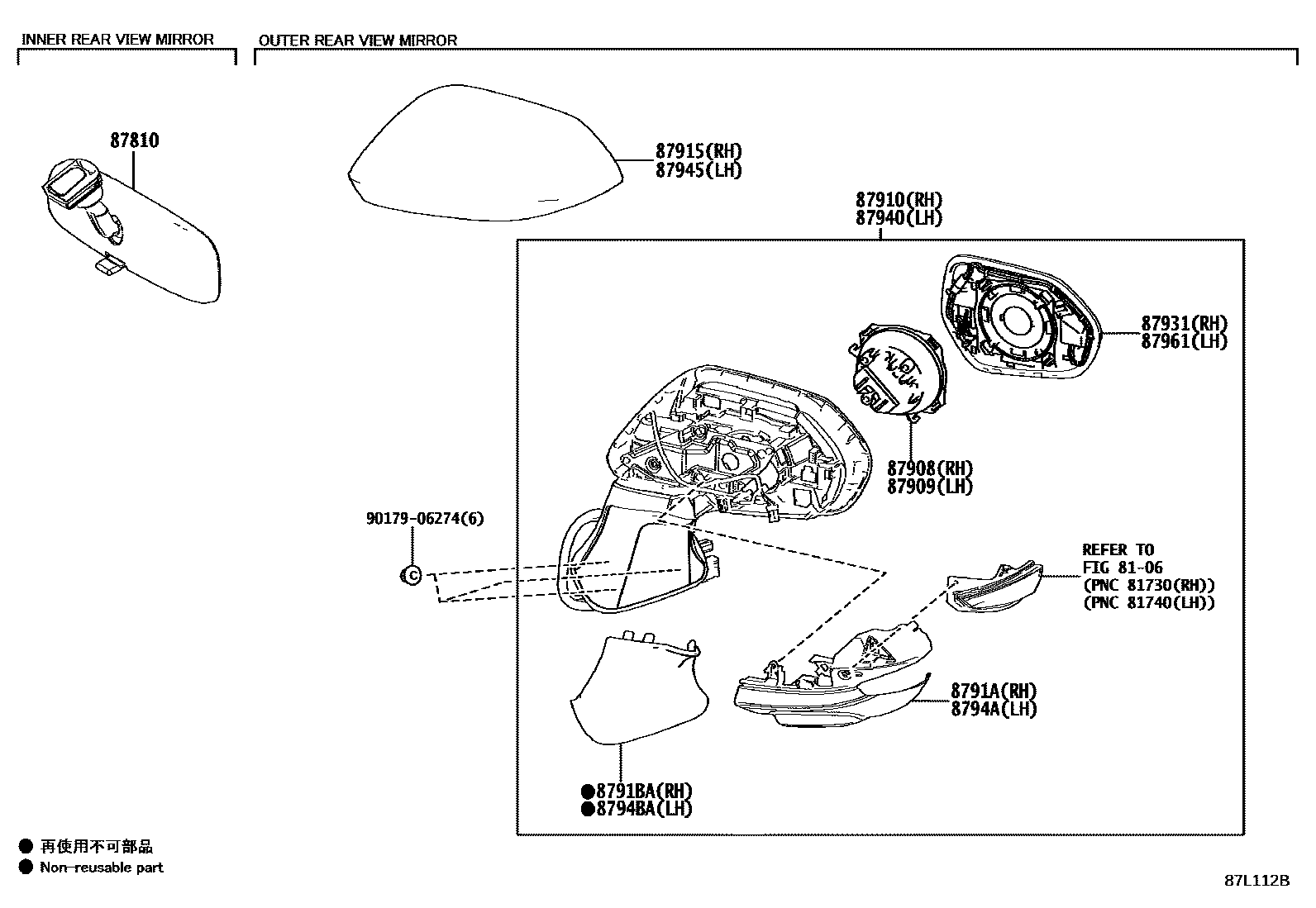

Toyota SIENTA (JPP) — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7; DK.GRAY,1L7 ,2WQ ,2WR ,2WS ,2WT ,2WU ,2WV ,2YP
BLACK,202
SCARLET ME.,3U4
CLEAR BEIGE ME.,4Y3
BEIGE,4V6
URBAN KHAKI,6X3
GRAYISH BLUE,8W2
8791ACOVER, OUTER MIRROR, RH NO.2
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7; DK.GRAY,1L7 ,2WQ ,2WR ,2WS ,2WT ,2WU ,2WV ,2YP
BLACK,202
SCARLET ME.,3U4
CLEAR BEIGE ME.,4Y3
BEIGE,4V6
URBAN KHAKI,6X3
GRAYISH BLUE,8W2
8794ACOVER, OUTER MIRROR, LH NO.2
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
9017906274
main90179-06274
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota SIENTA (JPP)
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota SIENTA (JPP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
