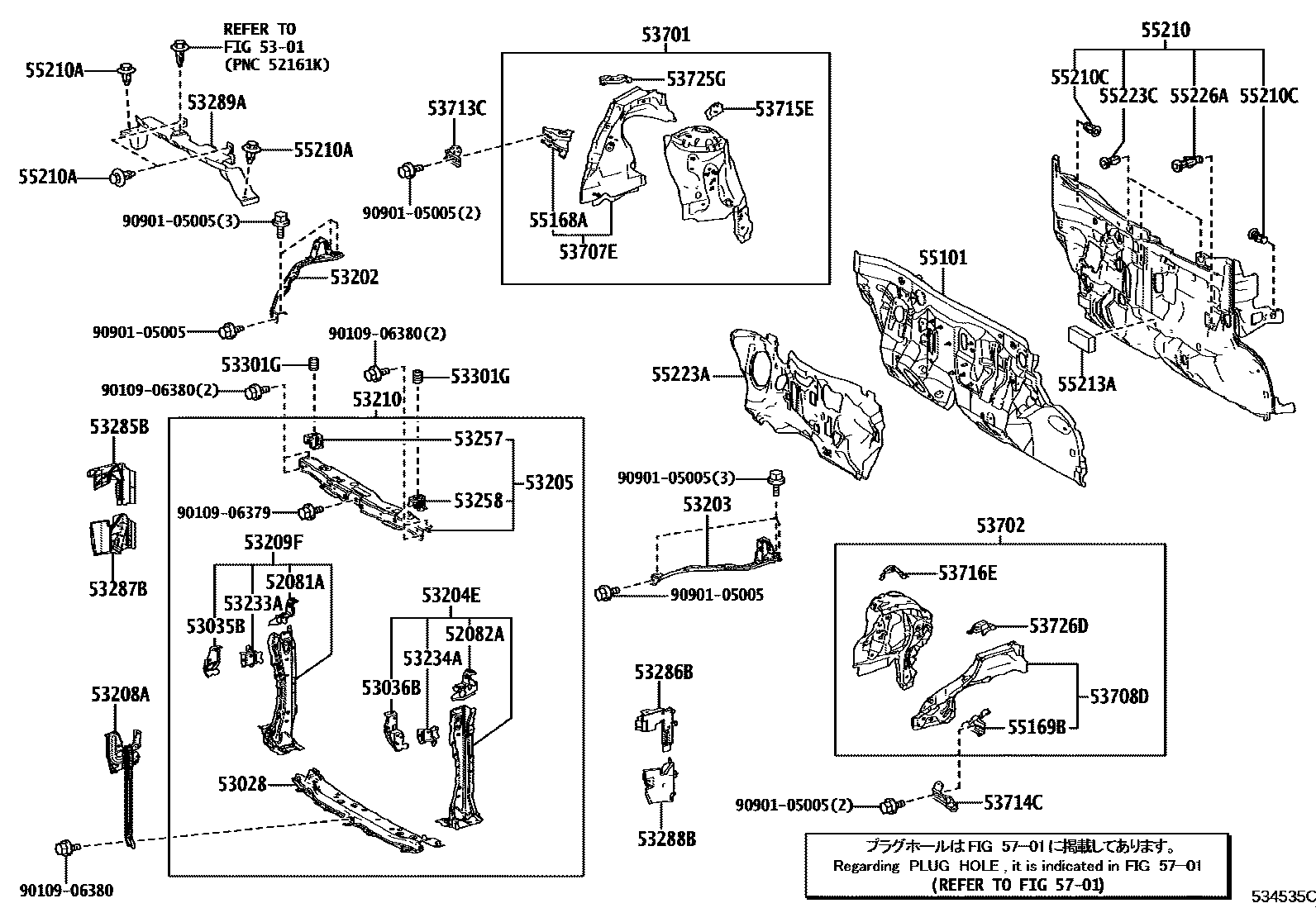

Toyota SIENTA (JPP) — FRONT FENDER APRON & DASH PANEL

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-52030i201506-201809

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-52020i201506-201809

5301RADIATOR GRILLE

→ Go to FIG 53-01

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-52100i201506-201809

53035BBRACKET SUB-ASSY, HEADLAMP MOUNTING, RH

main53035-52020i201506-201808

53036BBRACKET SUB-ASSY, HEADLAMP MOUNTING, LH

main53036-52020i201506-201808

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-52260i201506-201809

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-52250i201506-201809

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-52901i201506-201808

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52190i201506-201809

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-52904i201506-201809

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-52901i201506-201808

53210SUPPORT ASSY, RADIATOR

main53210-52918i201506-201809

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-52080i201506-201809

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-52090i201506-201809

53257BRACKET, FRONT END PANEL MOUNTING, RH

main53257-52030i201506-201809

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53258-52030i201506-201809

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52500i201506-201809

main53285-52510i201507-201809

main53285-52570i201809-202207

main53285-52580i201809-202207

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52420i201506-201809

main53286-52430i201507-201809

main53286-52490i201809-202207

main53286-52500i201809-202207

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-52020i201506-201809

main53287-52260i201507-201809

main53287-52310i201809-202207

main53287-52320i201809-202207

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-52250i201506-201809

main53288-52260i201507-201809

main53288-52310i201809-202207

main53288-52320i201809-202207

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-52100i201506-201809

main53289-52200i201809-202207

53301GCUSHION, HOOD BUMPER

main90541-15037×2i201506-201809

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52250i201506-201809

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52250i201506-201809

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-52060i201506-201809

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-52060i201809-202207

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-52080i201506-201809

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-52090i201506-201809

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030i201506-201809

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52040i201506-201809

53725GAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-52030i201506-201809

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-52030i201809-202207

55101PANEL SUB-ASSY, DASH

main55101-52621i201506-201809

main55101-52670i201507-201809

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52130i201809-202207

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52130i201506-201809

55210INSULATOR ASSY, DASH PANEL

main55210-52440i201506-201809

55210ACLIP

main90467-07214×4i201809-202207

55210CCLIP

main90467-13079×2i201506-201808

55213APAD, DASH PANEL SILENCER

main55213-52190i201506-201809

55223AINSULATOR, DASH PANEL, OUTER

main55223-52121i201506-201809

55223CCLIP

main90467-20013×3i201506-201808

55226ACLIP

main90467-11123i201506-201808

5701HOLE PLUG

→ Go to FIG 57-01

9010906379

main90109-06379

9010906380

main90109-06380

9090105005

main90901-05005

47 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota SIENTA (JPP)

This section contains 47 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SIENTA (JPP). Key components include: STAY SUB-ASSY, FRONT BUMPER, RH, STAY SUB-ASSY, FRONT BUMPER, LH, RADIATOR GRILLE, SUPPORT SUB-ASSY, RADIATOR, LOWER, BRACKET SUB-ASSY, HEADLAMP MOUNTING, RH.
