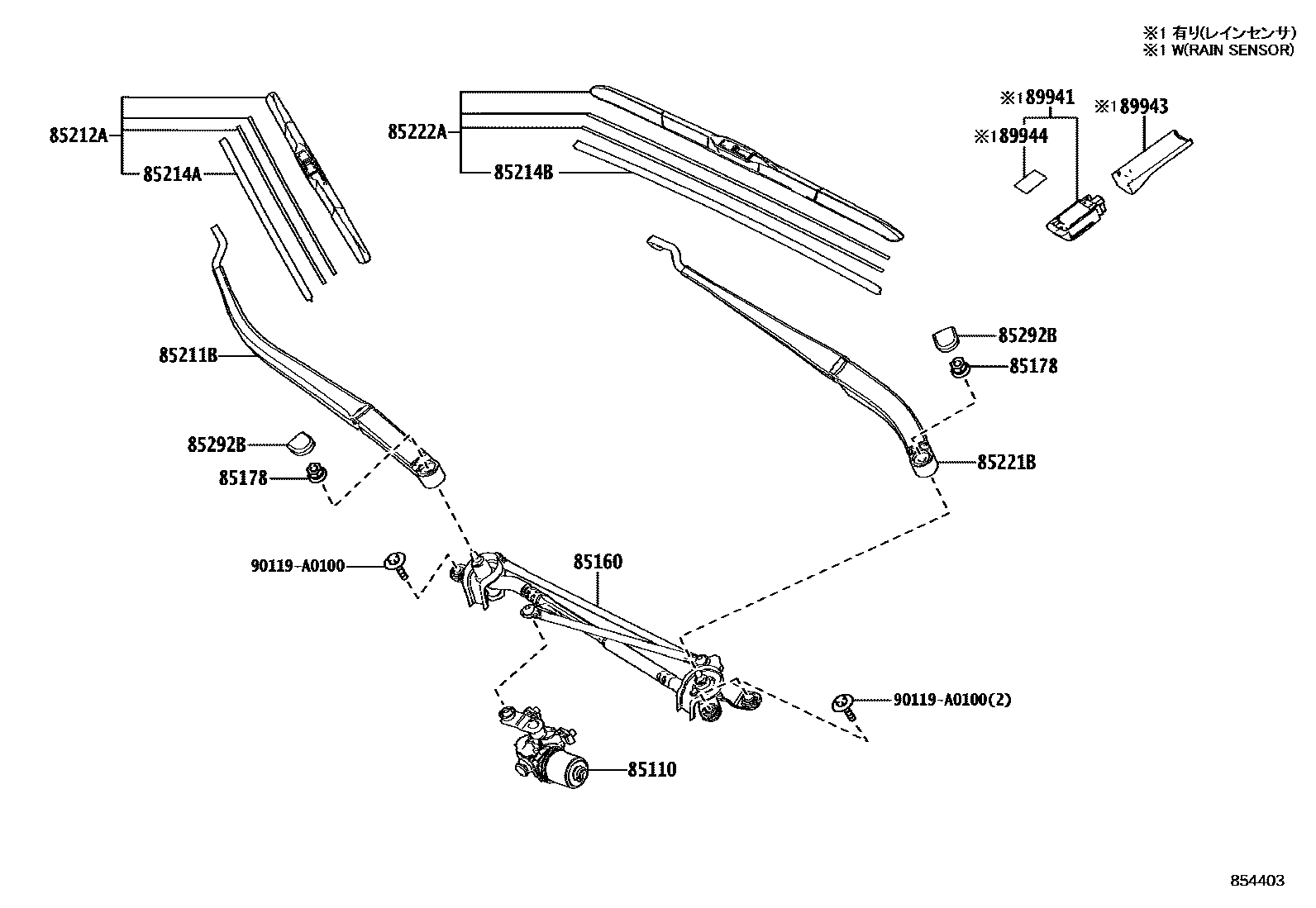

Toyota SIENNA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-08050i202410

85160LINK ASSY, WINDSHIELD WIPER

main85150-08030i202410

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017×2i202410

85211BARM, FRONT WIPER, RH

main85211-08040i202410

85212ABLADE, FR WIPER, RH

main85212-06250i202410

85214ARUBBER, WIPER, RH

main85214-0E140i202410

85214BRUBBER, WIPER, LH

main85214-0E151i202410

85221BARM, FRONT WIPER, LH

main85221-08040i202410

85222ABLADE, FR WIPER, LH

main85222-06250i202410

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2i202410

89941SENSOR, RAIN

main89941-30040i202410

KOREA SPEC; PLATINUM; TAIWAN SPEC

89943COVER, RAIN SENSOR

main89943-42040i202410

KOREA SPEC; PLATINUM; TAIWAN SPEC

89944TAPE, RAIN SENSOR

main89944-42020i202410

KOREA SPEC; PLATINUM; TAIWAN SPEC

90119A0100

main90119-A0100

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota SIENNA

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SIENNA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
