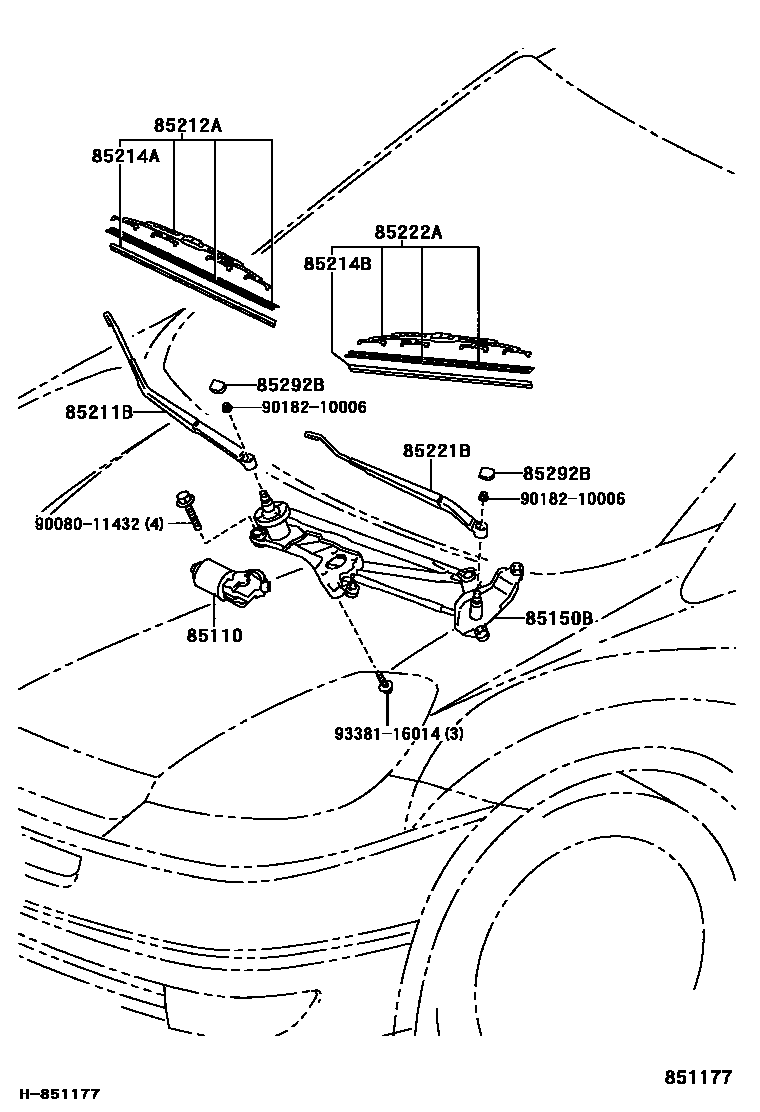

Toyota SIENNA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-AE010i200301-200509

85150BLINK ASSY, WIPER

main85150-AE010i200301-200509

85211BARM, FRONT WIPER, RH

main85211-AE010i200301-200509

85212ABLADE, FR WIPER, RH

main85212-0C011i200401-200509

main85212-AA040i200301-200401

85214ARUBBER, WIPER, RH

main85214-0C011i200401-200509

main85214-AA070i200301-200401

85214BRUBBER, WIPER, LH

main85214-AE010i200301-200509

85221BARM, FRONT WIPER, LH

main85221-AE010i200509-200612

85222ABLADE, FR WIPER, LH

main85222-AE010i200301-200509

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2i200509-200612

9008011432

main90080-11432

9018210006

main90182-10006

9338116014

main93381-16014

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota SIENNA

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SIENNA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
