Toyota SIENNA — WINDSHIELD WASHER

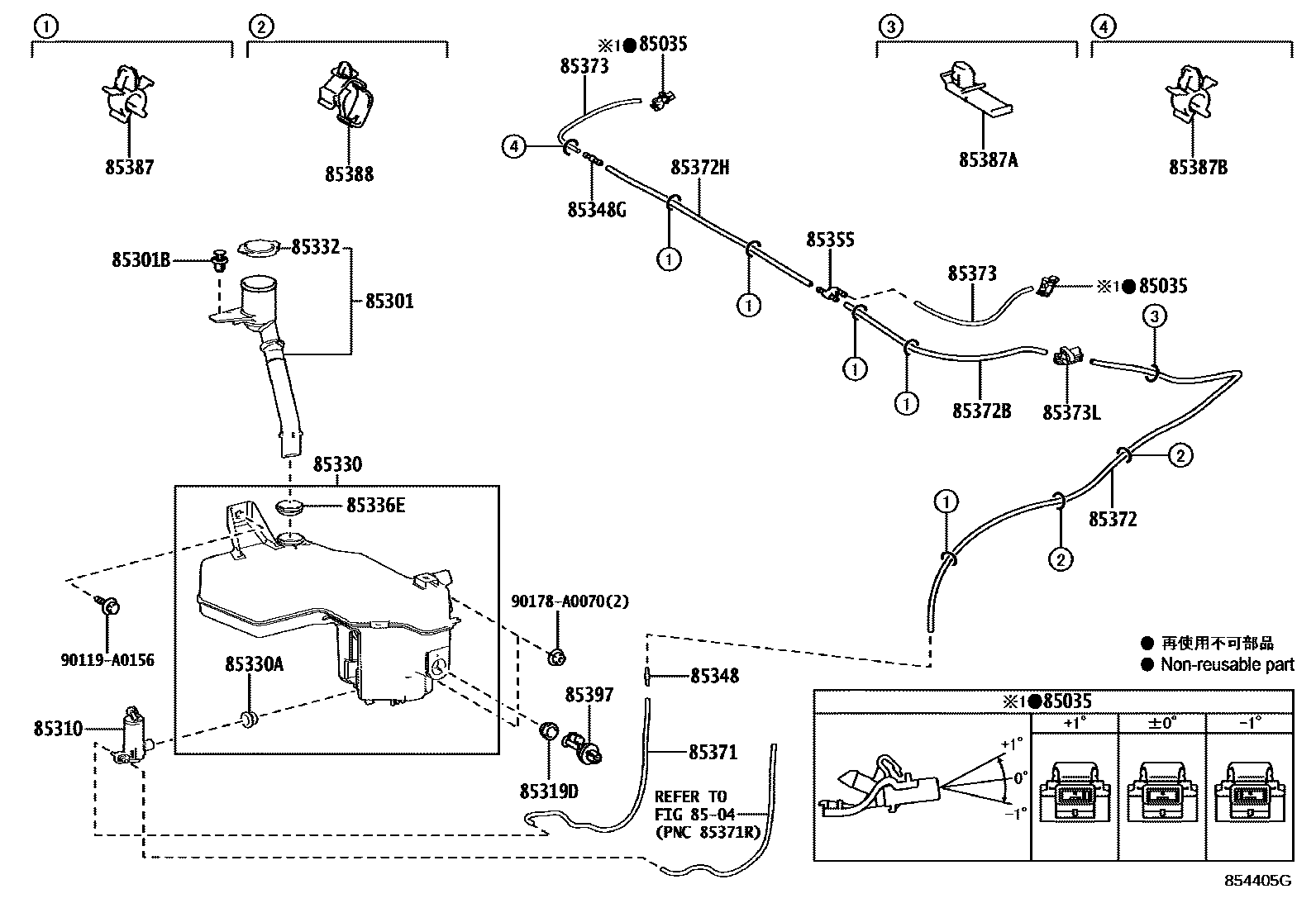

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-0T010i202011-202410
ANGLE 0
main85381-0T020i202011-202410
ANGLE +1
main85381-0T030i202011-202410
ANGLE -1
8504REAR WASHER
→ Go to FIG 85-04
85301INLET SUB-ASSY, WASHER
main85301-08010i202011-202410
85301BCLIP, WASHER
main90467-07215i202011-202410
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-0E031i202011-202410
85319DPACKING, FRONT WASHER
main85319-AA020i202011-202410
85330JAR ASSY, WINDSHIELD WASHER
main85315-08040i202011-202410
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i202011-202410
85332CAP, WINDSHIELD WASHER JAR
main85316-24130i202011-202410
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160i202011-202410
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85317-02300i202011-202410
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85317-02300i202011-202410
85355VALVE, WINDSHIELD WASHER HOSE
main85321-28020i202011-202410
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90068-45008i202011-202410
L=460
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33387i202011-202410
L=1130
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-33092i202011-202410
L=480
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90068-33086i202011-202410
L=650
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90069-46090i202011-202410
L=290
85373LGROMMET, WASHER
main85373-12050i202011-202410
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85371-12040i202107-202410
main90469-07011i202011-202106
main90469-07011i202410
##
85387ACLAMP, WASHER, NO.2
main82711-3A640i202011-202410
85387BCLAMP, WASHER, NO.3
main85371-12040i202107-202410
main90469-07011i202011-202106
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
main82711-1E350i202011-202410
85397SWITCH ASSY,LEVEL WARNING
main85397-AA040i202011-202410
90119A0156
main90119-A0156
90178A0070
main90178-A0070

26 parts on this diagram · 1 diagram in section
