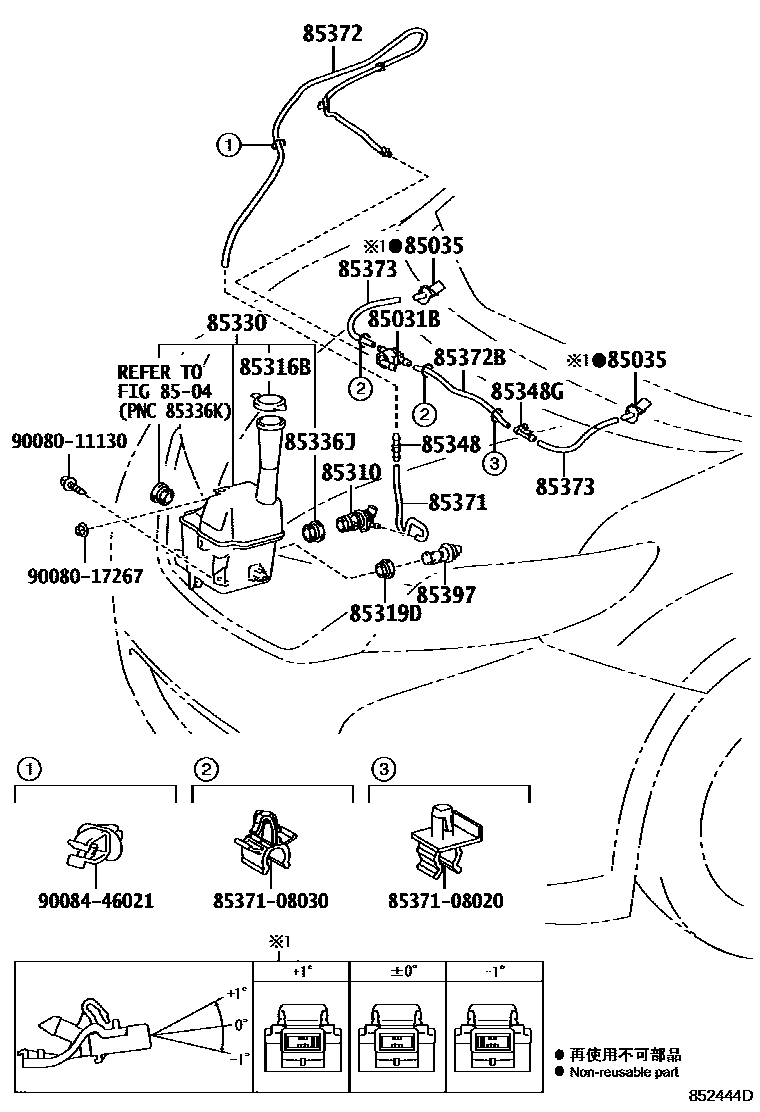

Toyota SIENNA — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-08010i201001-202009

85035NOZZLE SUB-ASSY, WASHER

main85381-0T010i201001-202009

ANGLE 0

main85381-0T020i201001-202009

ANGLE +1

main85381-0T030i201001-202009

ANGLE -1

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-AE010i201001-202009

85316BCAP, WASHER, INLET

main85386-0C010i201001-202009

85319DPACKING, FRONT WASHER

main85319-AA020i201001-202009

85330JAR ASSY, WINDSHIELD WASHER

main85315-AE010i201001-202009

85336JPROTECTOR, WASHER JAR

main85336-60300i201001-202009

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85384-08010i201001-202009

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-06120i201001-202009

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33021i201001-202009

L=280

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33128i201001-202009

L=1516

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33127i201001-202009

L=526

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33125i201001-202009

L=280

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i201001-202009

8537108020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-08020

8537108030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-08030

9008011130

main90080-11130

9008017267

main90080-17267

9008446021

main90084-46021

20 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SIENNA

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SIENNA. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET.
