Toyota SIENNA — WINDSHIELD WASHER

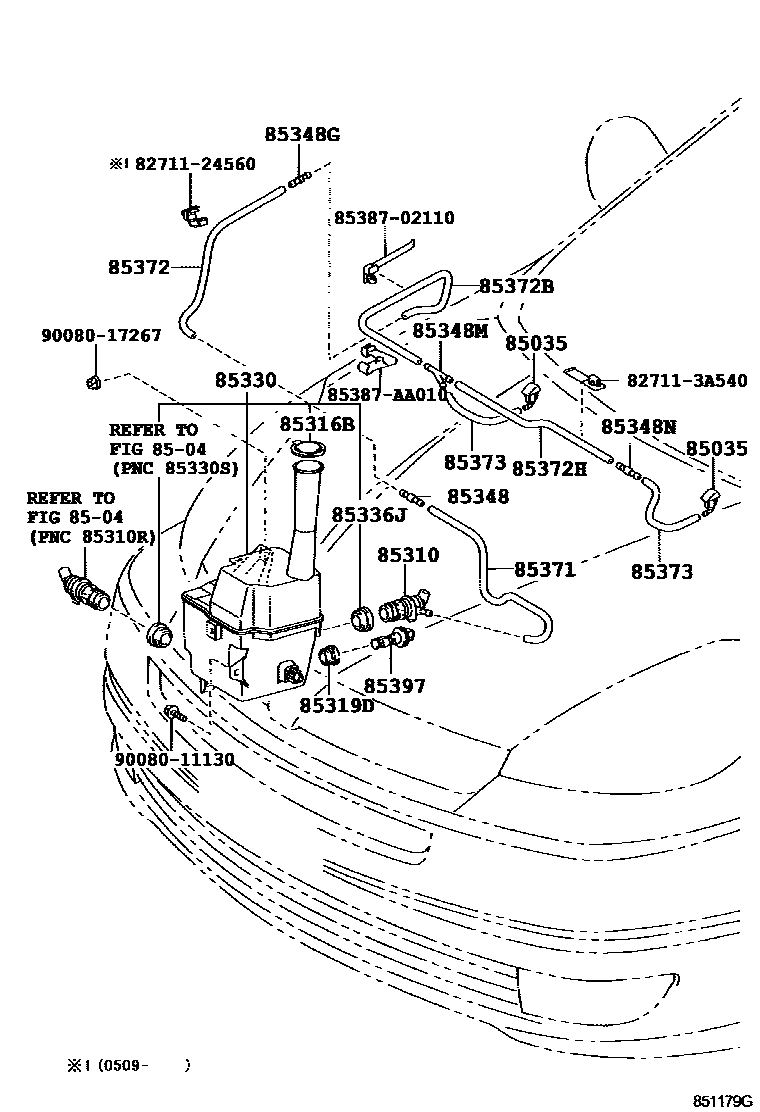

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-AE020×2i200509-200612
8504REAR WASHER
→ Go to FIG 85-04
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-AE010i200301-200509
85316BCAP, WASHER, INLET
main85386-0C010i200301-200509
85319DPACKING, FRONT WASHER
main85319-AA020i200301-200509
85330JAR ASSY, WINDSHIELD WASHER
main85315-AE010i200301-200509
85336JPROTECTOR, WASHER JAR
main85336-60300i200301-200509
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-AA010i200301-200509
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85375-AA010i200301-200509
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85378-AA010i200612-200908
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85375-06020i200509-200612
main85375-0E010i200908
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90068-33021i200509-200612
L=280
main90068-33022i200301-200304
L=270
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85374-AE010i200301-200509
L=708
main85374-AE011i200908
L=705
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main85374-AE020i200509-200612
L=815
main85374-AE021i200908
L=815
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main85374-AE040i200301-200509
L=530
main85374-AE041i200908
L=570
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90068-33009×2i200301-200509
L=1250(*H,L=250)
main90068-33011×2i200509-200612
L=1250(*H,L=250)
85397SWITCH ASSY,LEVEL WARNING
main85397-AA040i200301-200509
8271124560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24560
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8538702110CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-02110
85387AA010CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-AA010
9008011130
main90080-11130
9008017267
main90080-17267

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SIENNA

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SIENNA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET, PACKING, FRONT WASHER.
