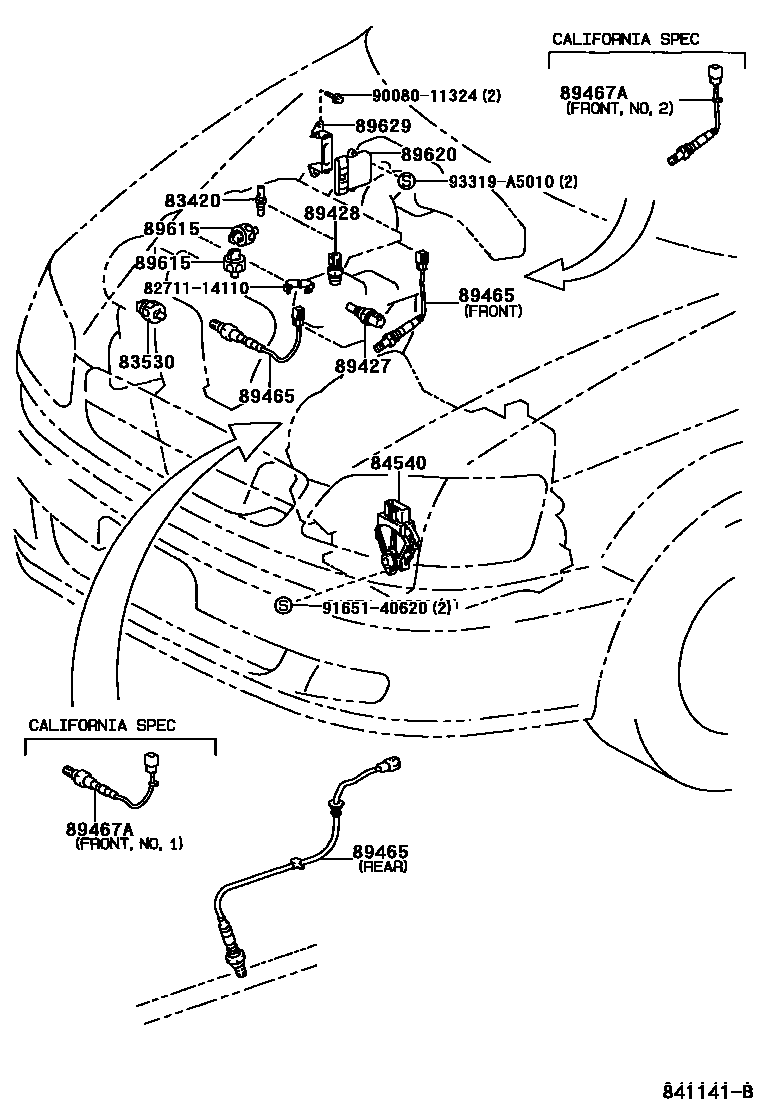

Toyota SIENNA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1COWL & CONSOLE 0006 1INSTRUMENT PANEL & DOOR SWITC0007 1INSTRUMENT PANEL & DOOR SWITC0008 1COMBINATION SWITCH 0009 1SET & BODY

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCL10200212-200301

(J)

main83420-AA010iMCL10200212-200301

(L)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCL10199805

DENSO

main83530-30090iMCL10199708-199805

YAZAKI

sub83530-60020

main83530-AA011iMCL10199708

FASCO

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCL10199708

89427SWITCH, TEMPERATURE DETECT

main89428-21010iMCL10200008

TOWING PACKAGE

main89428-30130iMCL10199708-200008

main89428-33020iMCL10200008

main89428-45010iMCL10..WG199708-200008

TOWING PACKAGE

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-41010iMCL10199708

89465SENSOR, OXYGEN

main89465-06030×2iMCL10199808-200008

FRONT,DENSO USA

sub89465-06080

main89465-08010iMCL10199808-200008

REAR

main89465-09290iMCL10200008

main89465-33180×2iMCL10199708-200008

FRONT,DENSO

main89465-45010iMCL10199708-199808

REAR

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

main89467-41010iMCL10..USA199808-199907

CALIFORNIA SPEC,FRONT,NO.2

main89467-41011iMCL10..USA199907-200008

CALIFORNIA SPEC,FRONT,NO.2

main89467-41020iMCL10..USA199808-199907

CALIFORNIA SPEC,FRONT,NO.1

main89467-41021iMCL10..USA199907-200008

CALIFORNIA SPEC,FRONT,NO.1

main89467-41030iMCL10200008

NO.2

main89467-41040iMCL10200008

NO.1

89615SENSOR, KNOCK CONTROL

main89615-12040×2iMCL10199708-199906

main89615-12090×2iMCL10199906

89620IGNITER ASSY

main89621-41010iMCL10199708-200008

sub89621-35020

89629BRACKET, IGNITER ASSY

main89629-45010iMCL10199708-200008

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9008011324

main90080-11324

9165140620

main91651-40620

93319A5010

main93319-A5010

14 parts on this diagram · 9 diagrams in section
