Toyota SIENNA — STARTER

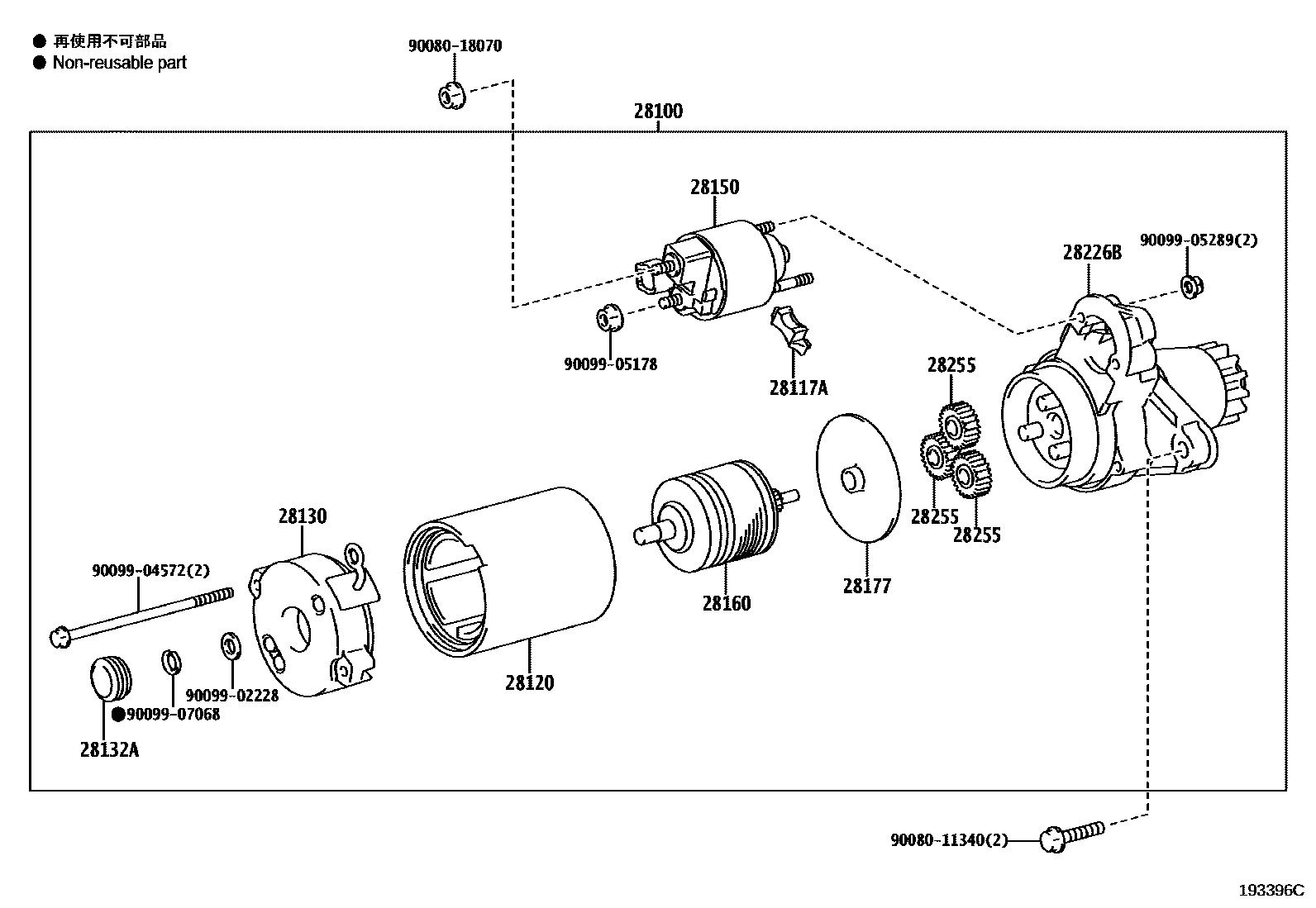

Parts diagram

28100STARTER ASSY

main28100-0A011201108-201509

main28100-0P110201608-202009

main28100-0V012201001-201608

28117ASEAL, RUBBER

main28117-0P030201001-201608

main28117-28060201608-202009

28120YOKE ASSY, STARTER

main28120-0P030201001-201608

main28120-28060201108-202009

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020201001-201608

main28130-31200201608-202009

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040201001-202009

28150SWITCH ASSY, MAGNET STARTER

main28150-28060201001-201108

28160ARMATURE ASSY, STARTER

main28160-28040201001-202009

28177PLATE(FOR STARTER ARMATURE)

main28177-28040201001-202009

28226BSTARTER KIT, REPAIR SERVICE

main28226-0P030201001-201608

main28226-28041201108-201510

main28226-31220201608-202009

28255GEAR, PLANET

main28255-0A010201012-201608

main28255-20020201001-202009

9008011340

main90080-11340

9008018070

main90080-18070

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

17 parts on this diagram · 3 diagrams in section

STARTER for Toyota SIENNA

This section contains 20 genuine Toyota parts for the STARTER system of the Toyota SIENNA. Key components include: STARTER ASSY, SEAL, RUBBER, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END, COVER, STARTER COMMUTATOR END FRAME.
