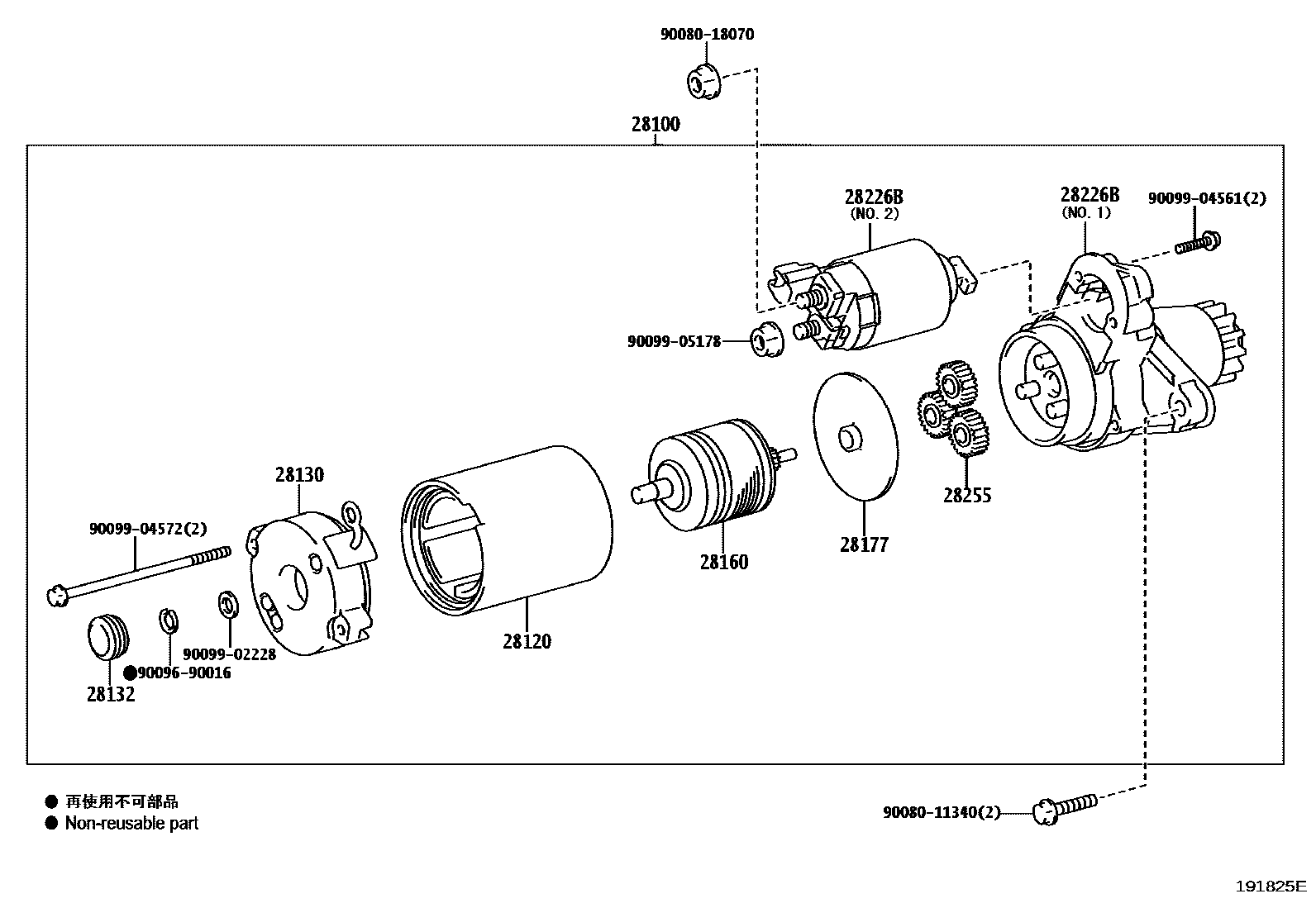

Toyota SIENNA — STARTER

28100STARTER ASSY

main28100-0A010i200509-200612

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28040i200301-200509

main28120-28060i200808-200912

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i200301-200509

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-28040i200301-200509

28160ARMATURE ASSY, STARTER

main28160-28040i200509-200612

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i200301-200509

28226BSTARTER KIT, REPAIR SERVICE

main28226-28041i200612-200912

NO.1

main28226-28051i200509-200612

NO.2

28255GEAR, PLANET

main28255-20020×3i200301-200509

9008011340

main90080-11340

9008018070

main90080-18070

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

15 parts on this diagram · 1 diagram in section

STARTER for Toyota SIENNA

This section contains 15 genuine Toyota parts for the STARTER system of the Toyota SIENNA. Key components include: STARTER ASSY, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END, COVER, STARTER BEARING(FOR DRIVE HOUSING), ARMATURE ASSY, STARTER.
