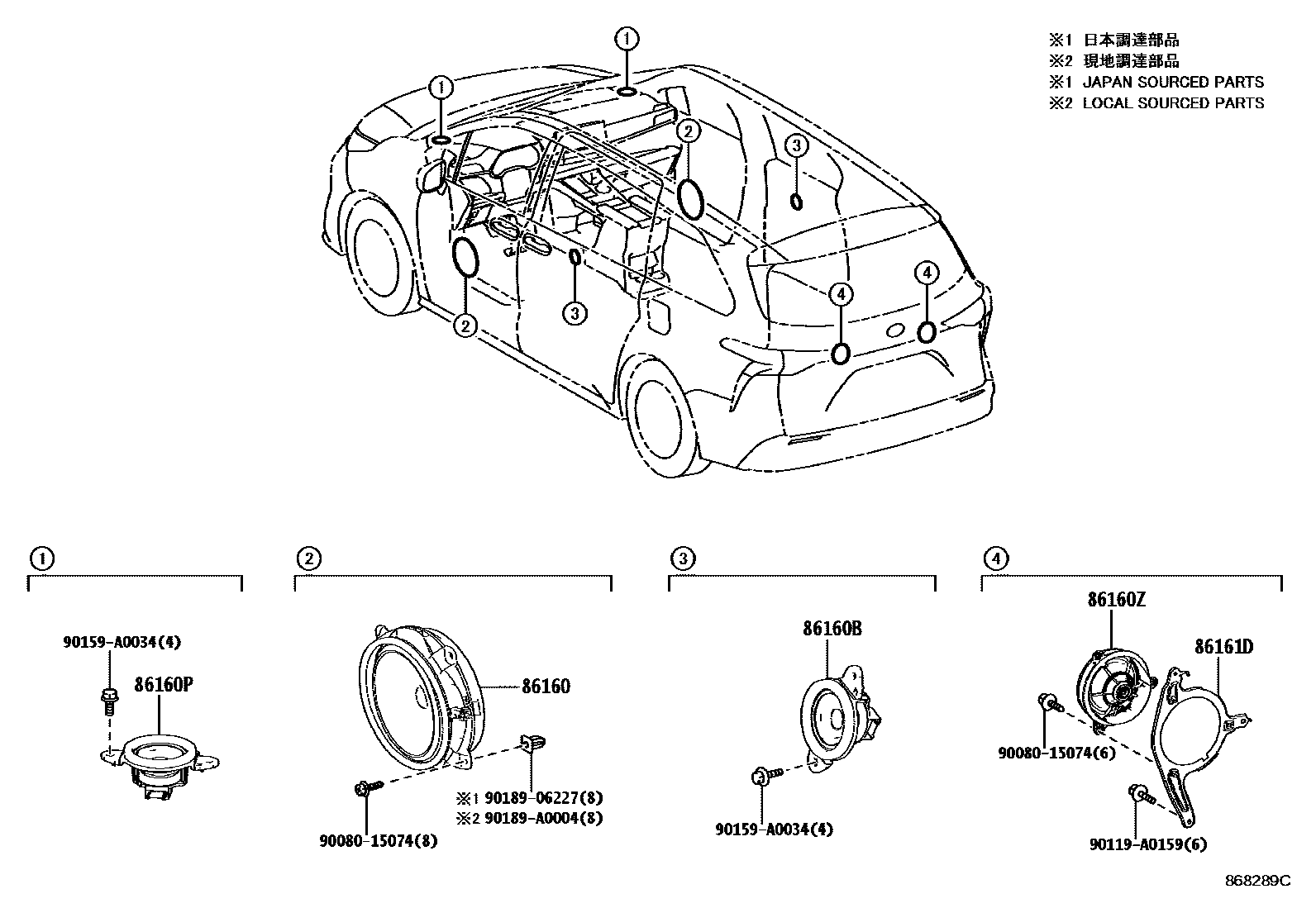

Toyota SIENNA — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
AUDIO-JBL SURROUND 12SPEAKER
86160BSPEAKER ASSY, REAR
AUDIO-JBL SURROUND 12SPEAKER
86160PSPEAKER ASSY, FRONT NO.2
AUDIO-JBL SURROUND 12SPEAKER
AUDIO-AM/FM 8SPEAKER
86160ZSPEAKER ASSY, REAR NO.3
AUDIO-JBL SURROUND 12SPEAKER
86161DBRACKET, SPEAKER MOUNTING, NO.1
LH
RH
9008015074
main90080-15074
90119A0159
main90119-A0159
90159A0034
main90159-A0034
9018906227
main90189-06227
90189A0004
main90189-A0004
10 parts on this diagram · 2 diagrams in section
SPEAKER for Toyota SIENNA
This section contains 13 genuine Toyota parts for the SPEAKER system of the Toyota SIENNA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
